• Open CAS BACnet Explorer; in the CAS Activation form, enter the email address that
was registered and click on “Request a key”. The CAS key will then be emailed to the
registered address. Cut/paste key from email into the Product key field and click the
Activate button.

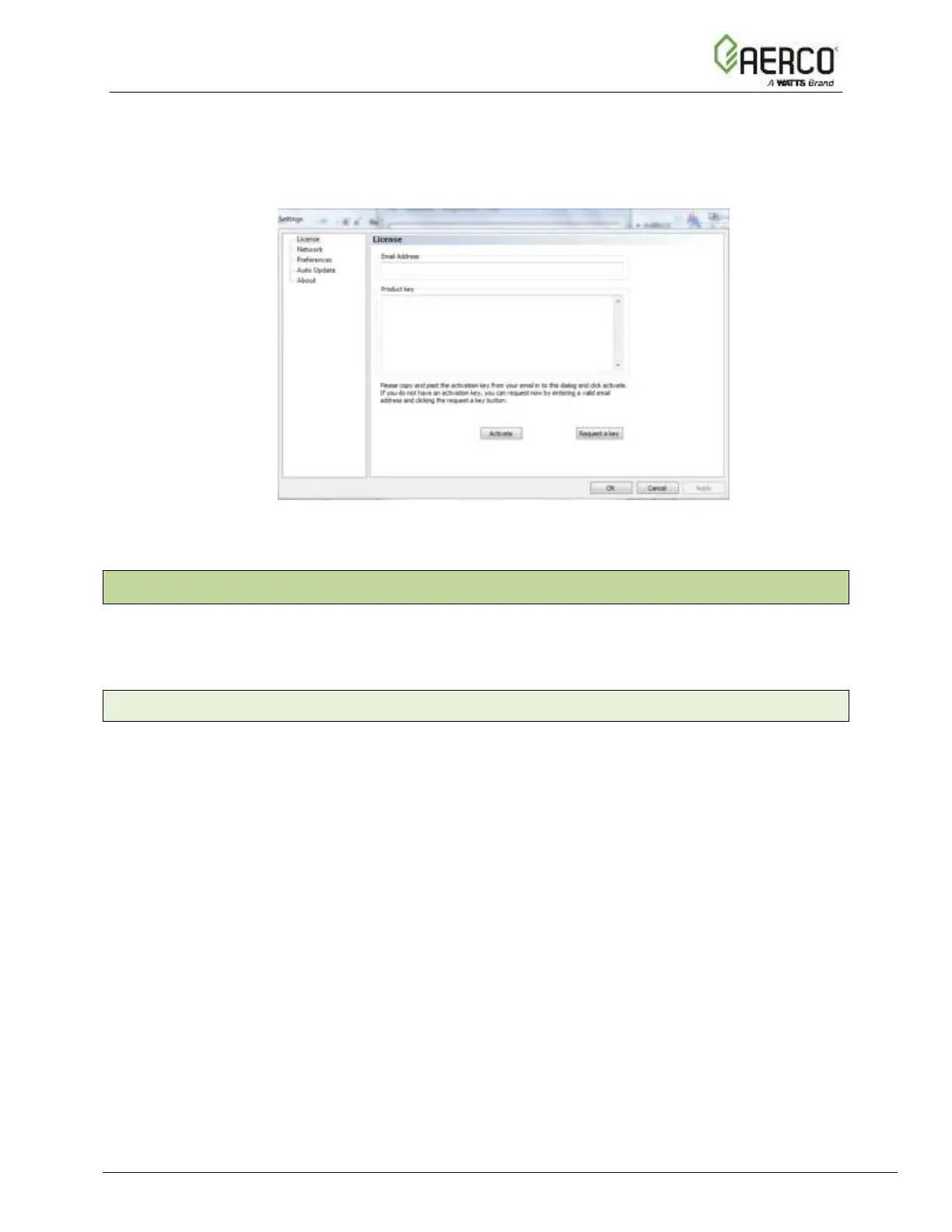

Figure 9-2: Requesting CAS Activation Key
9.2 CAS BACnet Setup
These are the instructions to set CAS Explorer up for the first time on BACnet MS/TP and
BACnet/IP.
9.2.1 CAS BACnet MS/TP Setup
Using the Serial or USB to RS-485 converter, connect it to your PC and the 3 Pin BACnet
MS/TP connector on ProtoNode FPC-N34.
In CAS Explorer, do the following:
o Click on “settings”
o Check the BACnet MS/TP box and uncheck the BACnet/IP and BACnet Ethernet
boxes
o Set the BACnet MS/TP MAC address to 0
o Set the BACnet MS/TP Baud Rate to 38400
o Click “Ok”
o On the bottom right-hand corner, make sure that the BACnet MS/TP box is green
o Click on “discover”
o Check all 4 boxes
o Click “Send”
