WAVECONTROL SMP2 - Connector Type; Screw Connector

4.2.1. Connector type
There are two types of connector: push-pull and screw.
4.2.2. Screw connector
4.2.2.1. How to connect the eld probe
Connect the eld probe by inserting the male connector into the female
connector with the tab aligned. Once fully inserted, screw the connector until it
is snug, without forcing it.
4.2.2.2. How to disconnect the eld probe
You do not need to switch the device off before disconnecting the probe. First
unscrew the probe connector, then pull the connector to remove it.
 Important: pull the connector. Do not try to twist or turn the probe tube.

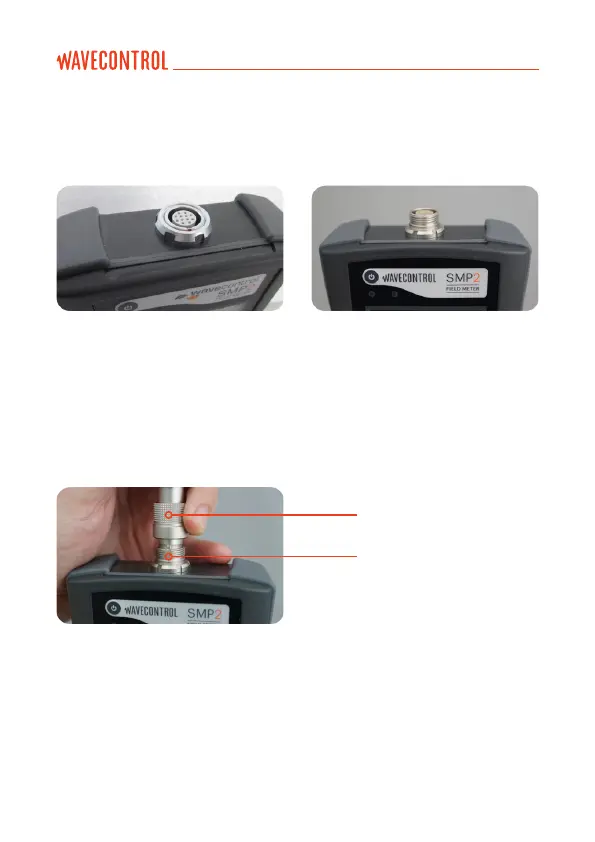

Figure 5: Push-pull connector Figure 6: Screw connector
Figure 7: How to connect the eld probe
Sleeve to screw on after
inserting the probe
Tab
