4.2.3. Push-pull connector
4.2.3.1. How to connect the push-
pull probe
With a push-pull connector, the eld
probe is connected by inserting
the male connector into the female
connector of the SMP2 until it stops.
The polarity of the connector must
be observed and so the red marks
on the male and female. connectors
must line up.
4.3.2.2. How to disconnect the eld
probe
You do not need to switch the device
off before disconnecting the probe.
Pull the connector of the probe
rmly with one hand (pulling with
the thumb) while you hold the SMP2
with your other hand as shown in the
pictures.
Important: pull the connector. Don’t pull any other part of the probe!
Don’t try to twist or unscrew the probe.
4.3. External connections
4.3.1. USB
A USB to mini USB cable is delivered with the SMP2. After installing the SMP2
software (rst install the software see 8.1) just plug the cable to the SMP2 and
to the computer. You will be able to download stored measurements to the
computer or update the SMP2 rmware.
Note: it is not recommended to perform measurements while the USB is connected,
it could affect the quality of the readings.

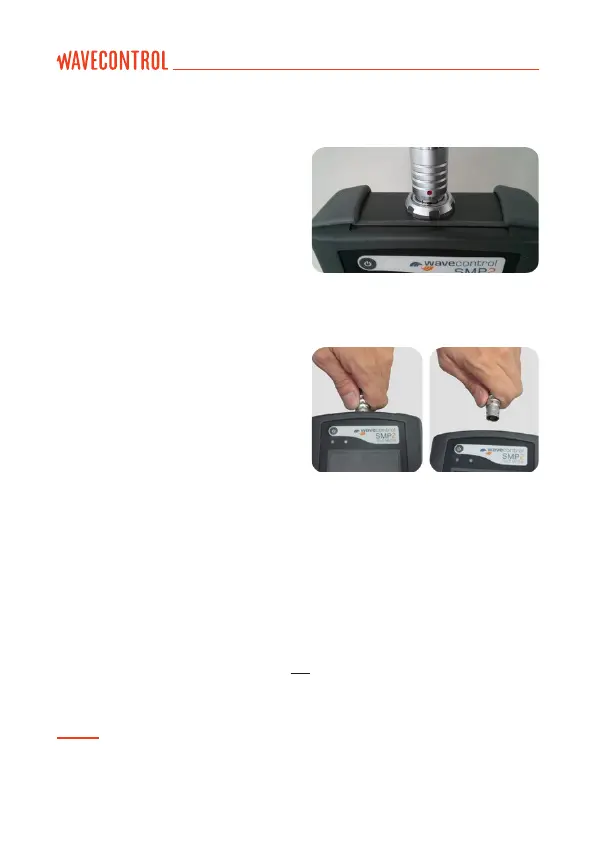

Figure 8: How to connect the eld probe
Figure 9: How to disconnect the eld probe
User’s Manual Electromagnetic Field Meter SMP2 P. 14
