The bottom of the SMP2 holds the other connections of the equipment.
• Mini USB connector and bre optics: allows connection to a PC in order to:
• Download data stored in the SMP2 memory.
• Update rmware for the equipment.
• Control the unit remotely.
• Battery charger connector: allows the SMP2 battery to be recharged using
the charger supplied with the equipment.
• ¼’ screw connector: takes a ¼’ screw, the standard screw used for most
tripods, allowing the SMP2 to be mounted on a tripod.
4.2. Field probes
The SMP2 is a highly versatile EMF measurement device that requires
connection of the proper eld probe to obtain the best results for each
application. Only Wavecontrol eld probes will work with the device.
If the device is switched on with no eld probe attached, it will not show any
eld value and therefore no measurement will be saved to memory. However,
saved data and GPS positioning functions will be available.
The SMP2 automatically detects the type of eld probe and its calibration
parameters.
Mini USB connector
Charger connector
Tripod ¼’ screw
Fibre optic
connector

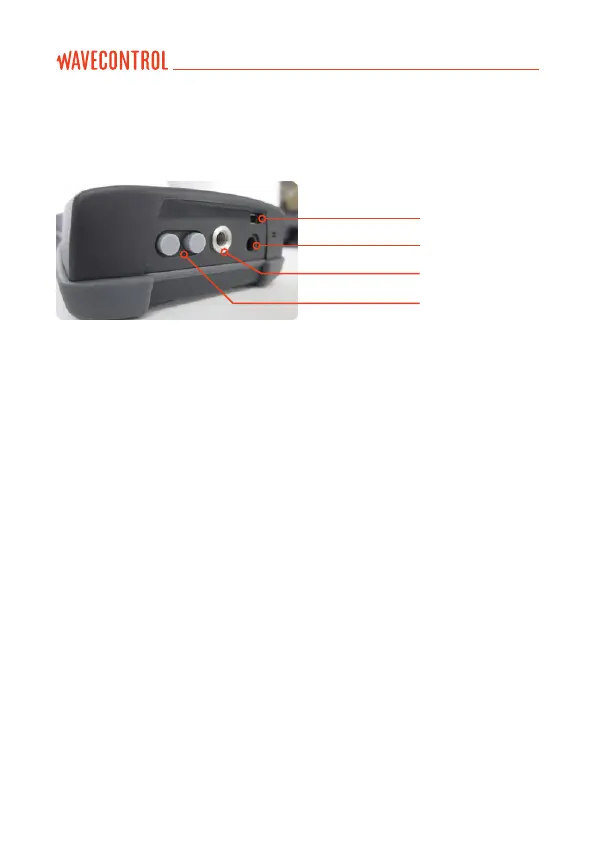

Figure 4: Bottom
User’s Manual Electromagnetic Field Meter SMP2 P. 12
