• 100 Hz (-3dB at 100 Hz, < -18dB at 50Hz). Useful for attenuating the signal
at 50/60 Hz. Gives a better signal-to-noise ratio for measuring harmonics
in mains or measuring weak signals at high frequencies without the
fundamental overloading the dynamic range.
Response with the different lters, slightly different if a limit has been selected or not.

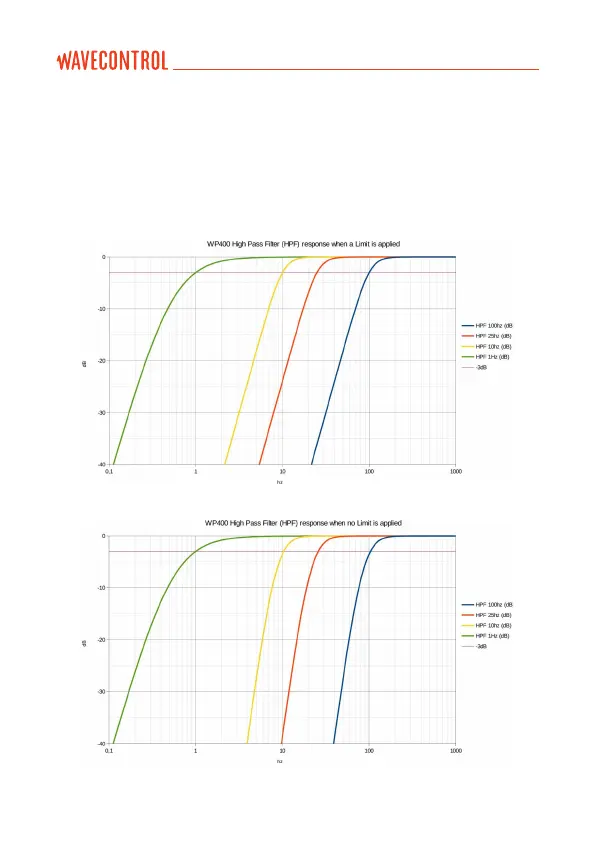

Figure 19: Filter response when a limit is applied
Figure 20: Filter response when no limit is applied
User’s Manual Electromagnetic Field Meter SMP2 P. 80
