RS485 TO ETH

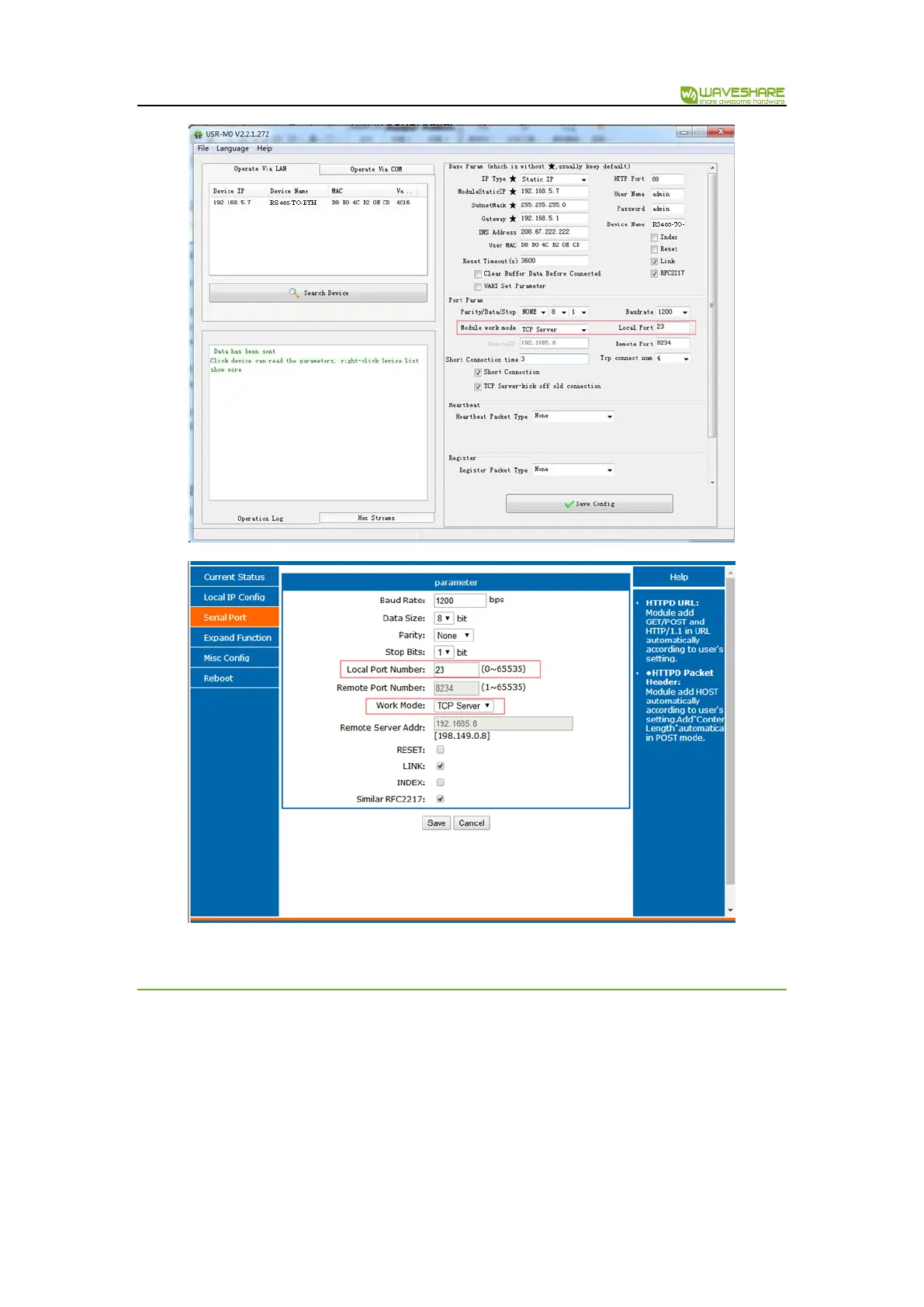

Figure 7 TCP Server
2.2.3. UDP CLIENT
UDP transport protocol provides simple and unreliable communication services. No connection
connected/disconnected.
In UDP Client mode, RS485 TO ETH will only communicate with target IP/Port. If data not from target
IP/Port, it won’t be received by RS485 TO ETH.

Table of Contents

Other manuals for Waveshare RS485 TO ETH

Preview: Manual
Manual36 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Waveshare RS485 TO ETH and is the answer not in the manual?

Waveshare RS485 TO ETH Specifications

General IconGeneral
InterfaceRS485 to Ethernet
Ethernet Port10/100Mbps
RS485 Port1 port
Baud Rate300bps ~ 115200bps
Communication InterfaceEthernet, RS485
ProtectionSurge protection
Operating Temperature-40°C to 85°C
Communication ProtocolTCP/IP, UDP
Storage Temperature-40℃ ~ 85℃
Humidity5% ~ 95%
FunctionRS485 to Ethernet converter
