RS485 TO ETH

serial port side and will disconnect to server after sending all the data to server and no data from

serial port side or network side over a fixed time. This fixed time can be 2~255s, default is 3s. User can

set RS485 TO ETH with non-persistent connection function by web server as follow:

2.4.8. TIMEOUT RESET FUNCTION

Timeout reset function(no data reset): If network side no data transmission beyond a fixed time(User

can set this fixed time between 60~65535s, default is 3600s. If user set a time less than 60s, this

function will be disable), 304 will reset. User can set the Timeout Reset function by web server as

follow:

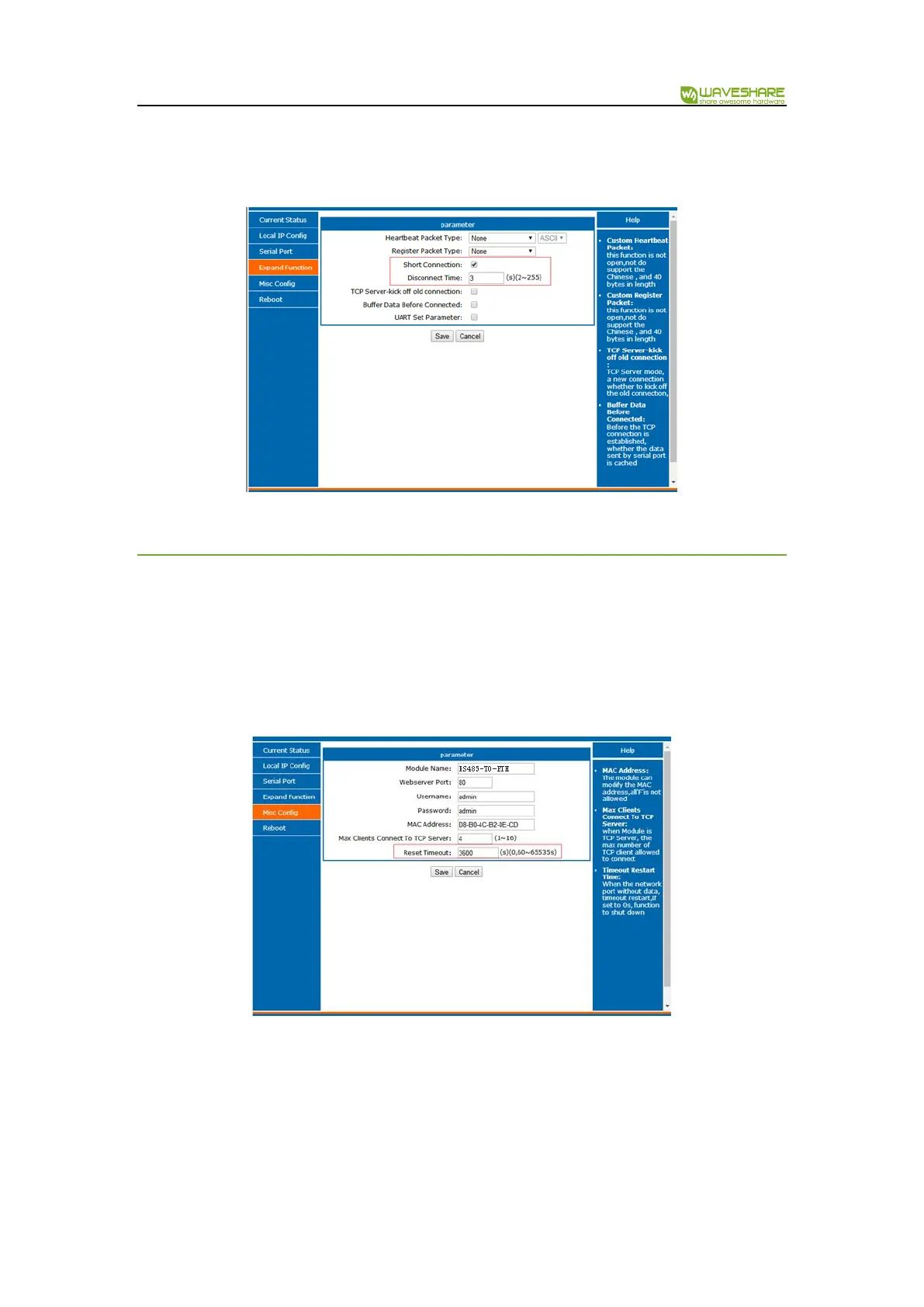

Figure 18 Non-persistent Connection

Figure 19 Timeout Reset Function
