RS485 TO ETH

Heartbeat packet: Module will output heartbeat data to serial or network periodic. User can configure

the heartbeat data and time interval. Serial heartbeat data can be used for polling Modbus data.

Network heartbeat data can be used for showing connection status and keep the connection (only

take effect in TCP/UDP Client mode).

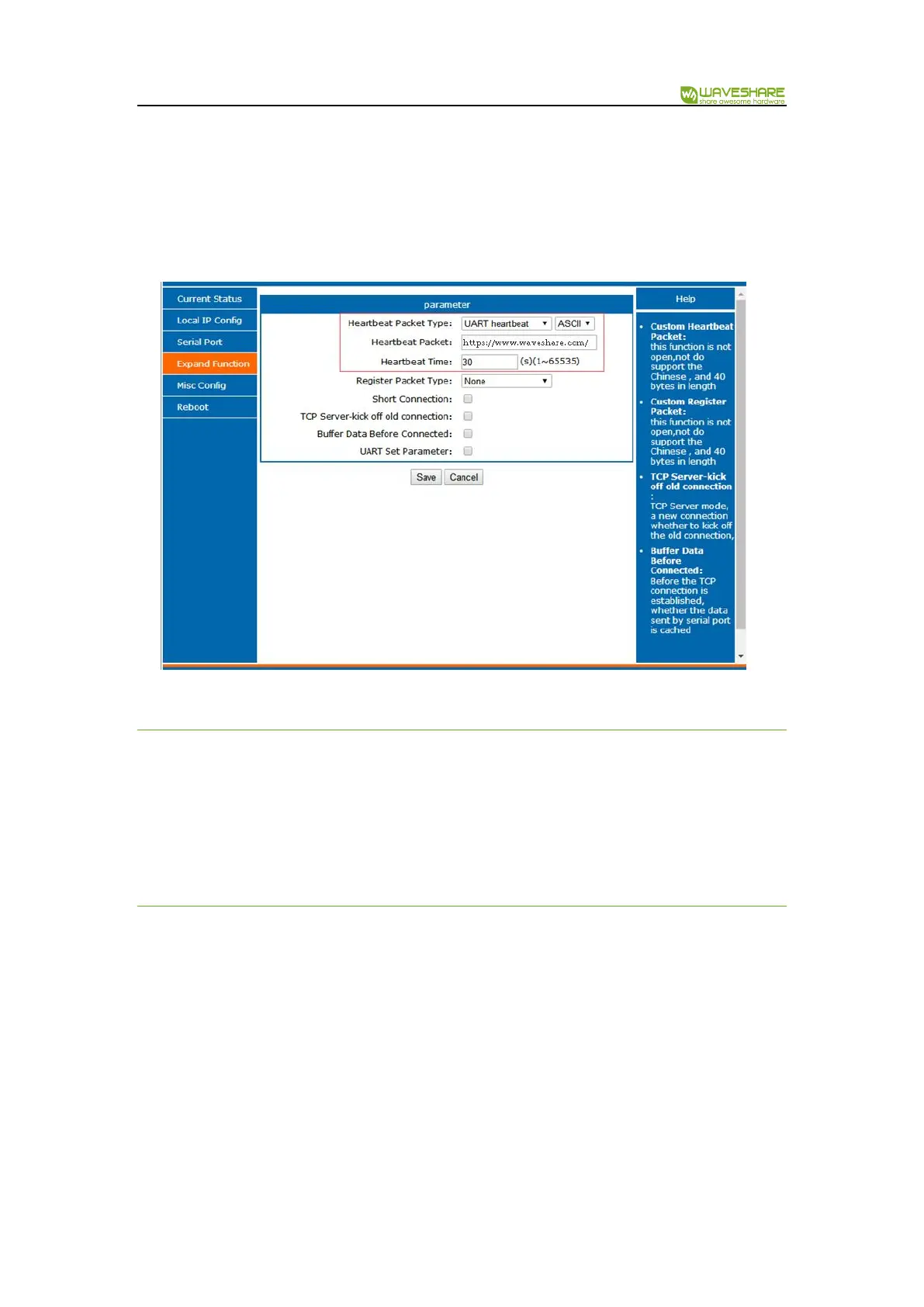

User can set RS485 TO ETH with Heartbeat Packet function by web server as follow:

2.4.3. EDITABLE WEB SERVER

RS485 TO ETH support user modify the web server based on template according to needs, then use

related tool to upgrade. If user have this demand can contact to our salespersons for web server

source and tool.

2.4.4. RESET FUNCTION

When 304 work in TCP Client mode, 304 will connect to TCP Server. When user open Reset function,

304 will restart after trying to connect to TCP Server 30 times but still can’t connect to.

User can enable/disable the Reset function by setup software as follow:

Figure 14 Heartbeat Packet
