RS485 TO ETH

In UDP Client mode, if user set remote IP as 255.255.255.255, RS485 TO ETH can broadcast to entire

network segment and receive broadcast data. After firmware version 4015, 304 support broadcasting

in same network segment.(Such like xxx.xxx.xxx.255 broadcasting way).

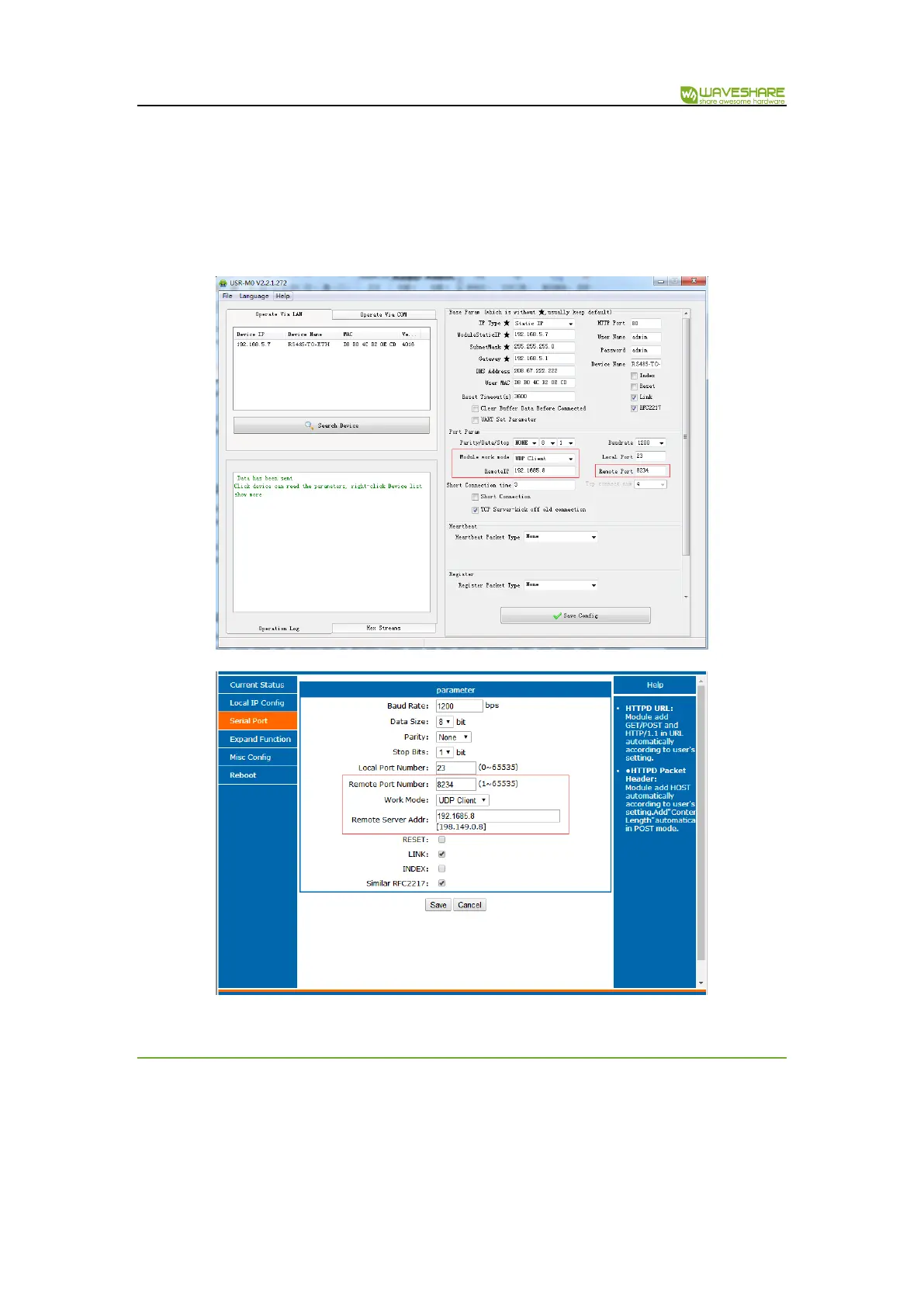

User can set RS485 TO ETH in UDP Client mode and related parameters by setup software or web

server as follows:

2.2.4. UDP SERVER

In UDP Server mode, RS485 TO ETH will change target IP every time after receiving UDP data from a

new IP/Port and will send data to latest communication IP/Port.

Figure 8 UDP Client
