RS485 TO ETH

For network speed is faster than serial. Module will put serial data in buffer before sending it to

network. The data will be sent to Network as Package. There are 2 ways to end the package and send

package to network - Time Trigger Mode and Length Trigger Mode.

RS485 TO ETH adopt fixed Package time (four bytes sending time) and fixed Package length (400

bytes).

2.3.4. BAUD RATE SYNCHRONIZATION

When module works with USR devices or software, serial parameter will change dynamically

according to network protocol. Customer can modify serial parameter by sending data conformed

to specific protocol via network. It is temporary, when restart module, the parameters back to original

parameters.

User can adopt Baud Rate Synchronization function by setup software as follows:

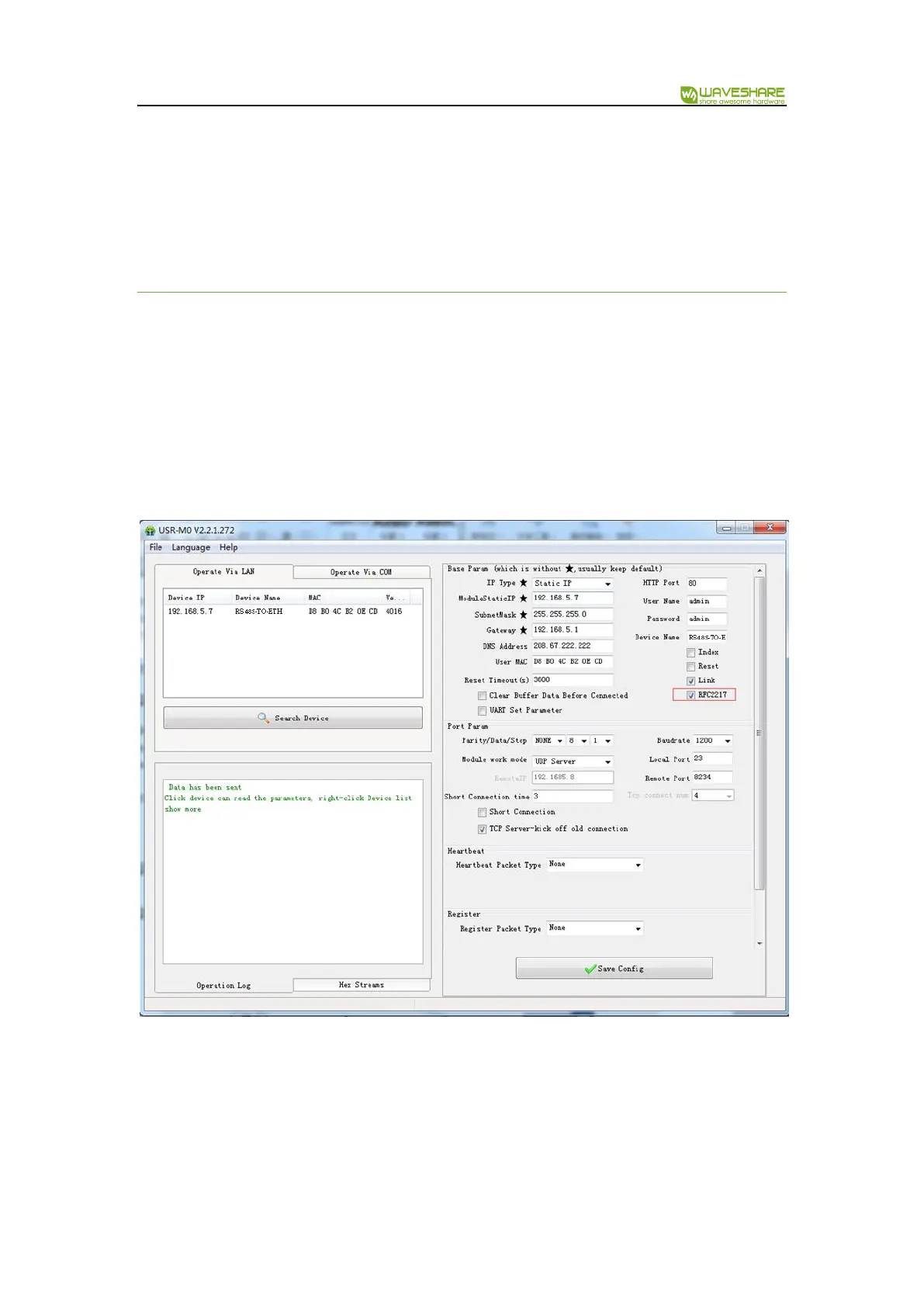

Figure 11 Baud Rate Synchronization
