RS485 TO ETH

User can set RS485 TO ETH in UDP Server mode and related parameters by setup software or web

server as follows:

2.2.5. HTTPD CLIENT

In HTTPD Client mode, RS485 TO ETH can achieve data transmission between serial port device and

HTTP server. User just need set RS485 TO ETH in HTTPD Client and set the HTTPD header, URL and

some other related parameters, then can achieve data transmission between serial port device and

HTTP server and don’t need care about the HTTP format of data.

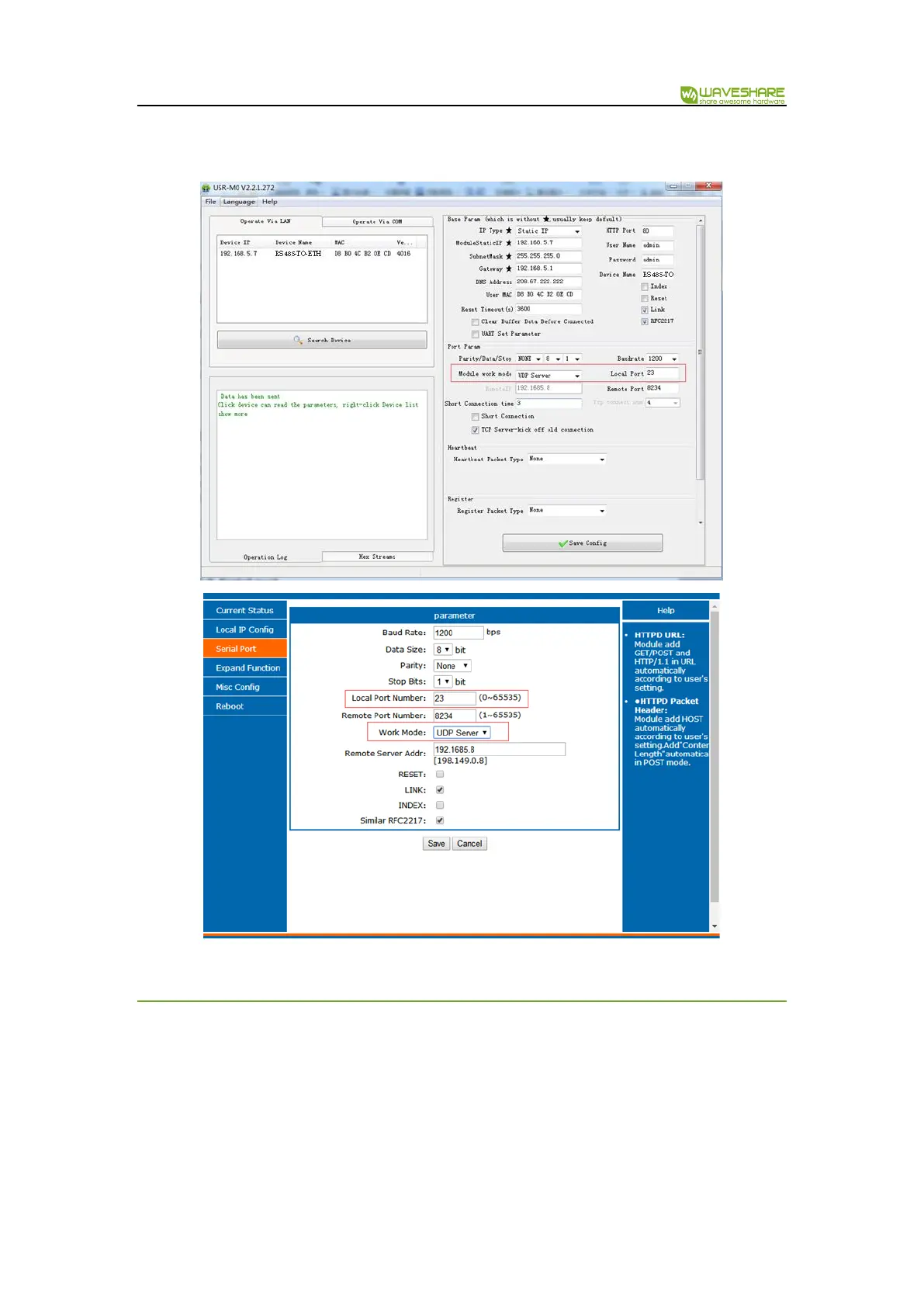

Figure 9 UDP Server
