RS485 TO ETH

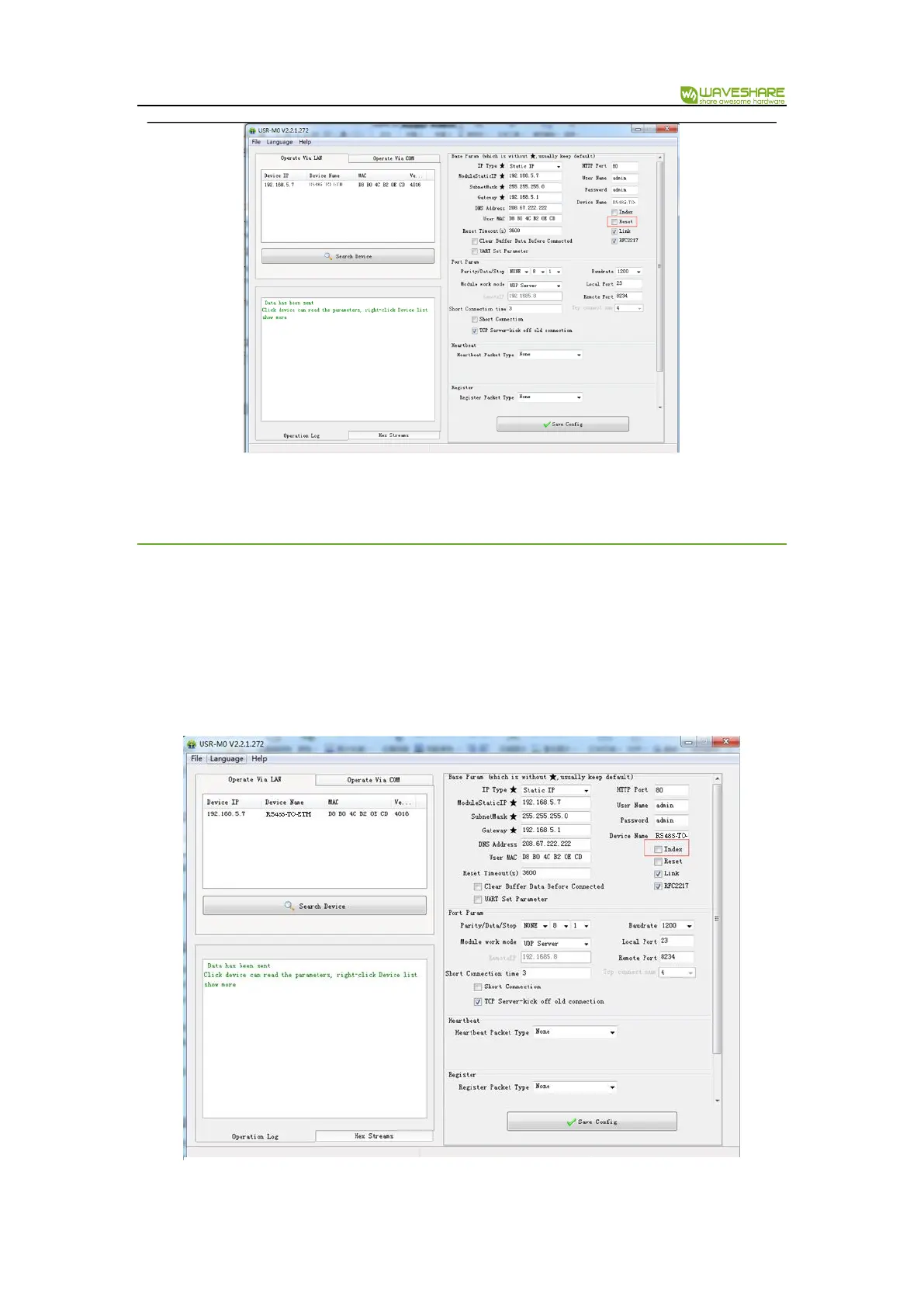

Figure 15 Reset Function
2.4.5. INDEX FUNCTION
Index function: Used in situation when 304 work in TCP Server mode and establish more than one
connection to TCP Client. After open Index function, 304 will mark every TCP Client to distinguish
them. User can send/receive data to/from different TCP Client according to their unique mark.
User can enable/disable the Index function by setup software as follow:
Figure 16 Index Function

Table of Contents

Other manuals for Waveshare RS485 TO ETH

Preview: Manual
Manual36 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Waveshare RS485 TO ETH and is the answer not in the manual?

Waveshare RS485 TO ETH Specifications

General IconGeneral
InterfaceRS485 to Ethernet
Ethernet Port10/100Mbps
RS485 Port1 port
Baud Rate300bps ~ 115200bps
Communication InterfaceEthernet, RS485
ProtectionSurge protection
Operating Temperature-40°C to 85°C
Communication ProtocolTCP/IP, UDP
Storage Temperature-40℃ ~ 85℃
Humidity5% ~ 95%
FunctionRS485 to Ethernet converter
