RS485 TO ETH
2.4.6. TCP SERVER SETTING
304 work in TCP Server mode allow at most 16 TCP Clients connection. Default is 4 TCP Clients and
user can change maximum TCP Clients connection by web server. When TCP Clients more than 4, user
need make every connection data less than 200 bytes/s.
If TCP Clients connected to 304 exceed maximum TCP Clients, user can enable/disable kick off old
connection function by web server.

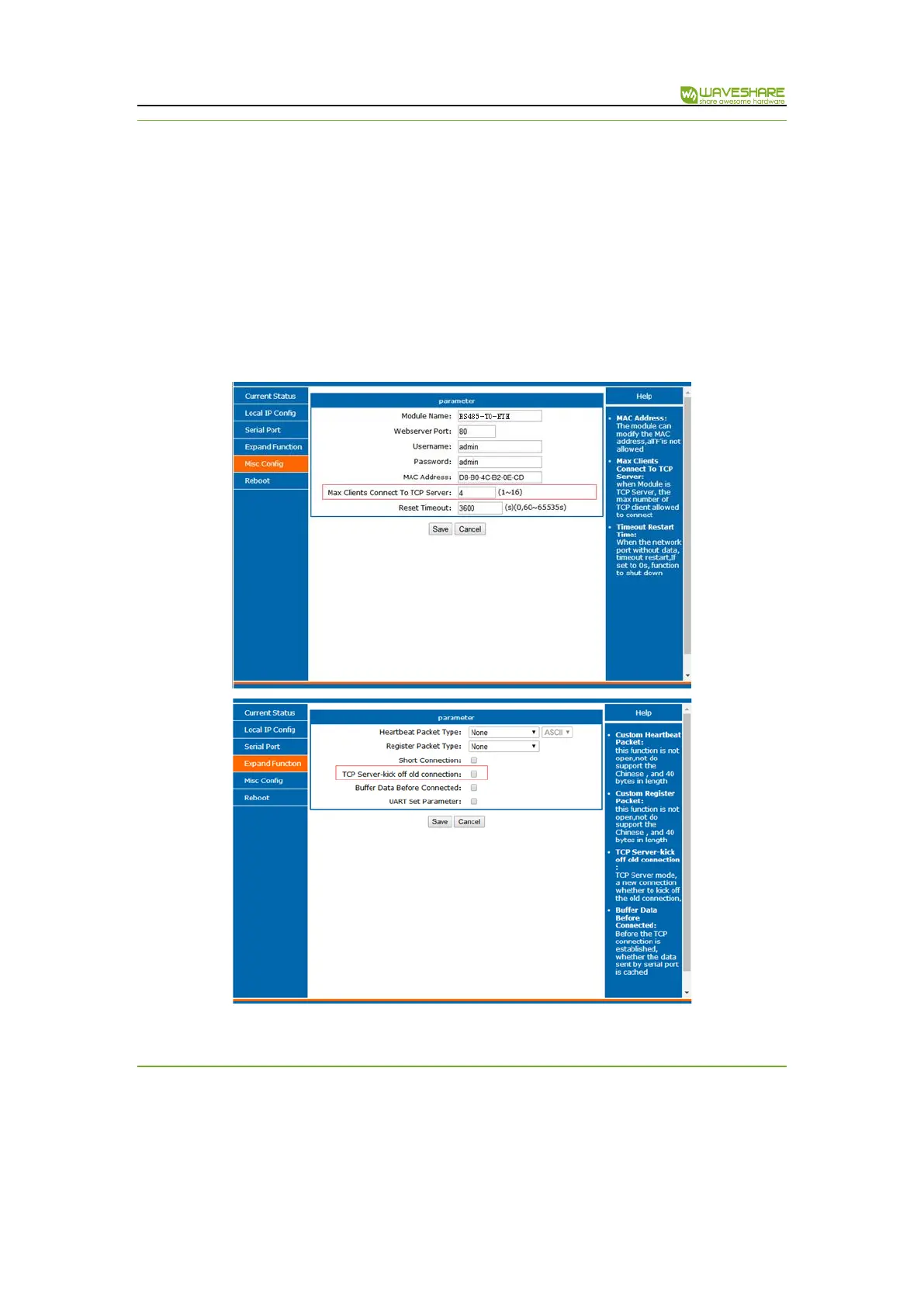

User can set above TCP Server settings by web server as follow:
2.4.7. NON-PERSISTENT CONNECTION
RS485 TO ETH support non-persistent connection function in TCP Client mode. When RS485 TO ETH
adopt this function, RS485 TO ETH will connect to server and send data after receiving data from
Figure 17 TCP Server Setting

Table of Contents

Other manuals for Waveshare RS485 TO ETH

Preview: Manual
Manual36 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Waveshare RS485 TO ETH and is the answer not in the manual?

Waveshare RS485 TO ETH Specifications

General IconGeneral
InterfaceRS485 to Ethernet
Ethernet Port10/100Mbps
RS485 Port1 port
Baud Rate300bps ~ 115200bps
Communication InterfaceEthernet, RS485
ProtectionSurge protection
Operating Temperature-40°C to 85°C
Communication ProtocolTCP/IP, UDP
Storage Temperature-40℃ ~ 85℃
Humidity5% ~ 95%
FunctionRS485 to Ethernet converter
