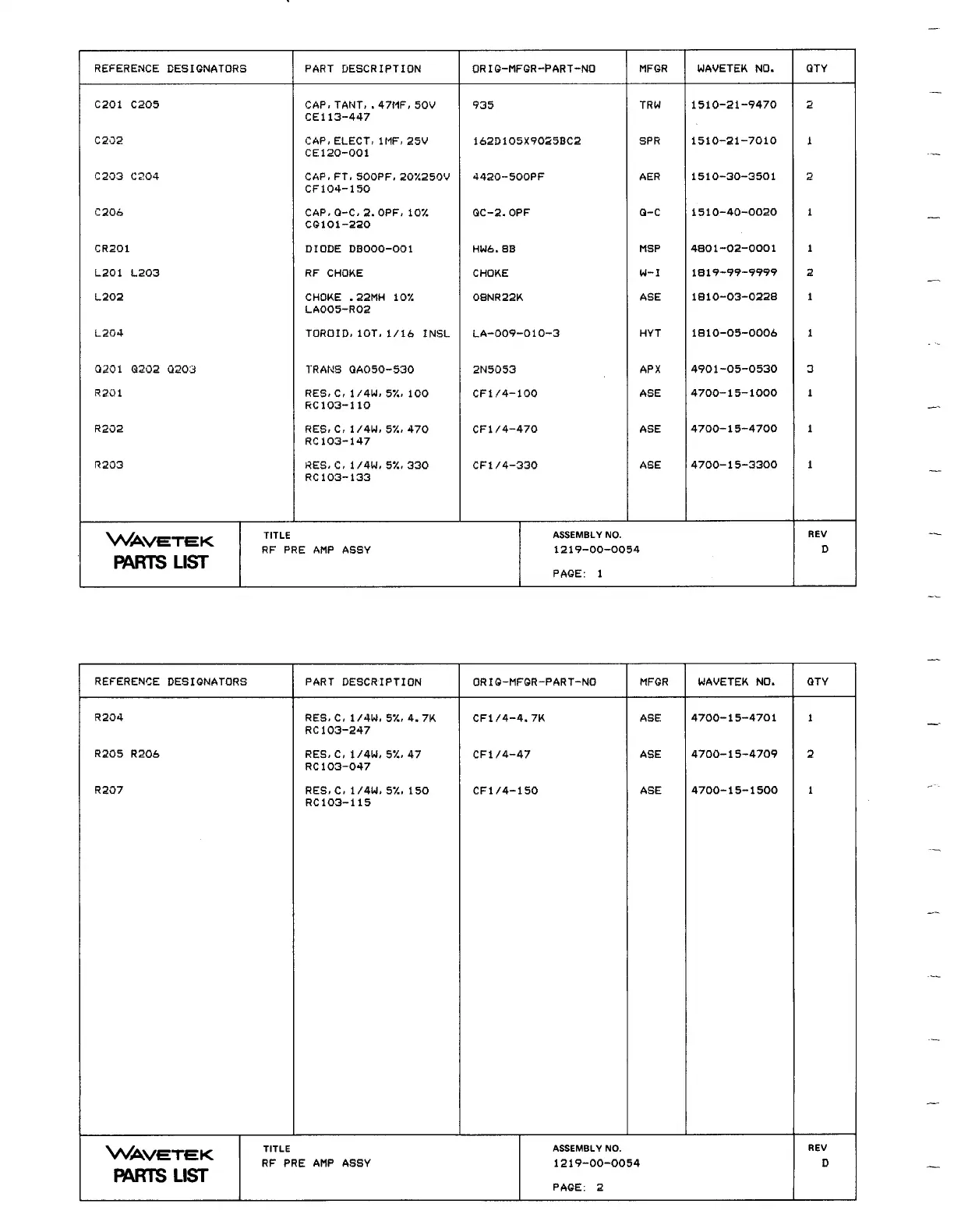

Wavetek 3000 - Page 109

REFERENCE
DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR
WAVETEK
NO
. OTY
C201 C205 CAP,TANT, .47MF,50V 935 TRW 1510-21-9470 2
CE113-447
C202 CAP,ELECT,IMF,25V 162D105X9025BC2 SPR 1510-21-7010 1
CE120-001
C203C204 CAP,FT,50OPF,20G250V 4420-50OPF AER 1510-30-3501 2
CF104-150
C206 CAP, G-C, 2 . OPF, 10'/ . GC-2 . OPF O-C 1510-40-0020
1
CGIOI-220
CR201 DIODE DB000-001 HW6.SB MSP 4601-02-0001
1
L201 L203 RF CHOKE CHOKE W-I
1819-99-9999 2
L202 CHOKE .22MH 10'/ . OSNR22K ASE 1810-03-0228 1
LAO05-RO2
L204 TOROID,IOT,1/16 INSL LA-009-010-3 HYT 1810-05-0006 1
0201 0202 020
:3
TRANS
GA050-530 2N5053
APX 4901-05-0530 3
R201 RES,C, 1/4W, 5'/ ., 100 CF1/4-100 ASE 4700-15-1000
1
RC103-110
R202 RES,C,1/4W,5%,470 CFI/4-470 ASE
4700-15-4700 1
RC103-147
R203 RES, C, 1/4W, 5'/ ., 330 CF1/4-330 ASE 4700-15-3300
1
RC103-133
WAV E TEK
TITLE
ASSEMBLY NO . REV
RF PREAMP ASSY 1219-00-0054 D
PARTS LIST
PAGE : 1
REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . CITY
R204 RES, C, 1/4W, 5'/ ., 4 .7K CFI/4-4 .7K ASE 4700-15-4701 1
RC103-247
R205R206 RES,C,1/4W,5%,47 CF1/4-47 ASE 4700-15-4709 2
RC103-047
R207
RES, C, 1 /4W, 5'/ ., 150 CFI /4-150
ASE 4700-15-1500 1
RC103-115
WAVETEK
TITLE ASSEMBLY NO .
REV
RF
PRE
AMP ASSY
1219-00-0054
D
PARTS LIST
PAGE : 2
