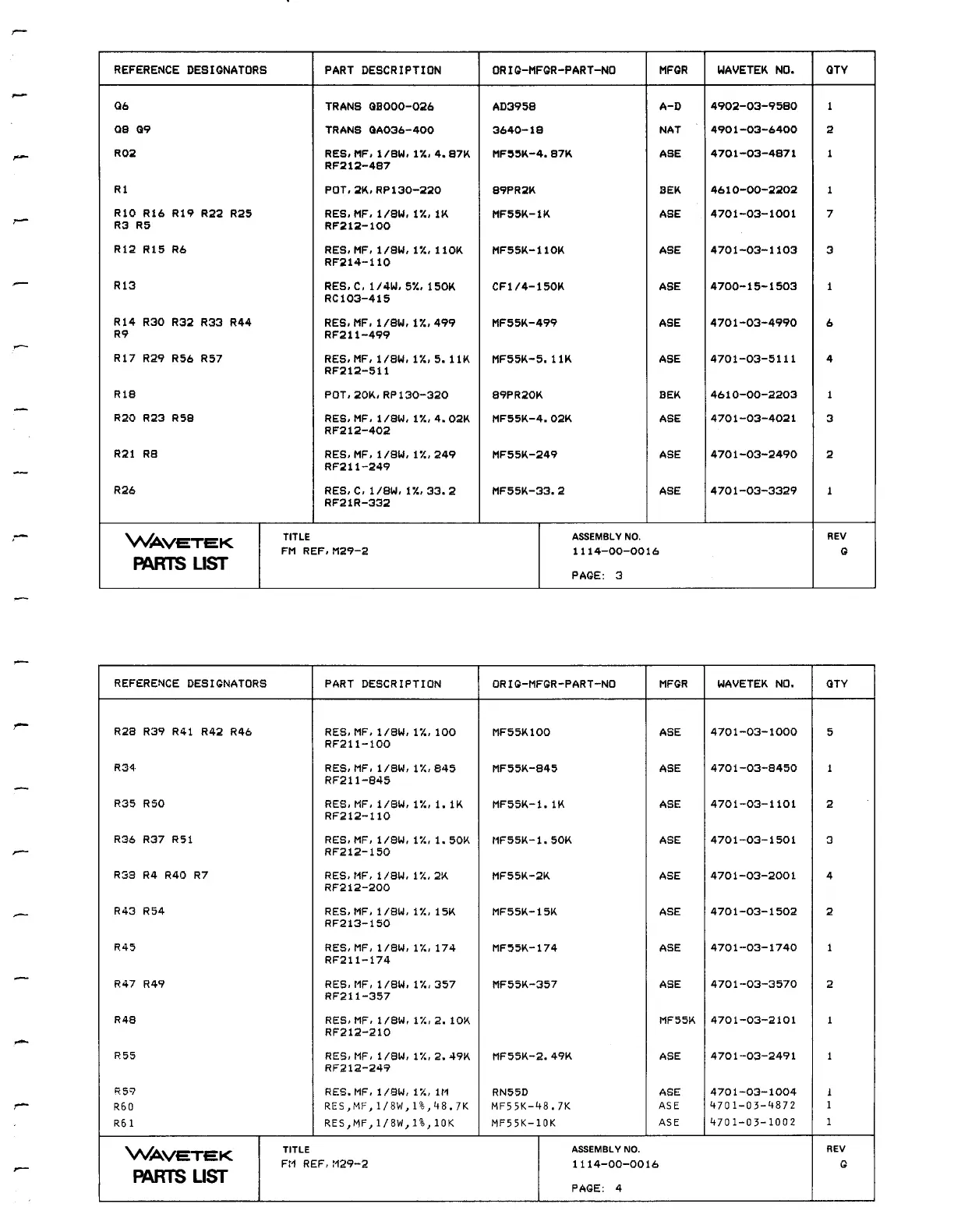

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
06 TRANS OB000-026 AD3958 A-D 4902-03-9580 1
08 09 TRANS GA036-400 3640-18 NAT 4901-03-6400 2
R02 RES,MF,1/BW,1%,4 .87K MF55K-4 .87K ASE 4701-03-4871 1
RF212-487
R1 POT,2K,RP130-220
89PR2K
BEK 4610-00-2202 1
RIO R16R19
R22 R25 RES,MF,1/BW,1'%,IK MF55K-iK ASE 4701-03-1001 7
R3 R5 RF212-100
R12
R15 R6 RES, MF, 1/8W, 1'/  110K MF55K-1IOK ASE 4701-03-1103 3
RF214-110
R13 RES,C,1/4W,5Y,150KCFI/4-150K ASE 4700-15-1503 1
RC103-415
R14R30 R32 R33R44
RES,MF,1/8W,IR,499 MF55K-499 ASE 4701-03-4990 6
R9 RF211-499
R17 R29
R56 R57 RES, MF, 1/SW, 1'/ ., 5 . IIK MF55K-5 . IIK ASE 4701-03-5111 4
RF212-511
R18
POT,20K,RP130-32089PR20K BEK 4610-00-2203 1
R20 R23R58 RES, MF, i/8W, 1'/ ., 4 . 02K MF55K-4 . 02K ASE 4701-03-4021 3
RF212-402
R21 RB RES, MF, 1 /8W, 1'/ ., 249 MF55K-249 ASE 4701-03-2490 2
RF211-249
R26 RES,C,1/SW,IR,33
.2 MF55K-33
.2 ASE 4701-03-3329 1
RF21R-332
WAVETEK
TITLE
ASSEMBLY
NO .
REV
FM REF,M29-2 1114-00-0016 0
PARTS LIST
PAGE : 3
REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
R28R39R41R42 R46 RES,MF,1/BW,1'%,100 MF55KI00 ASE 4701-03-1000 5
RF211-100
R34 RES, MF, 1/BW, 1'/  845 MF55K-845 ASE 4701-03-8450 1
RF211-845
R35 R50 RES, MF, 1/BW, 1'/ ., 1 . iK MF55K-1 . iK ASE 4701-03-1101 2
RF212-110
R36 R37 R51 RES, MF, 1/8W, 1'/ ., 1 . 50K MF55K-1 . 50K ASE 4701-03-1501 3
RF212-150
R33 R4 R40 R7 RES,MF,1/BW,1'/ .,2K MF55K-2K ASE 4701-03-2001 4
RF212-200
R43 R54 RES,MF, 1/BW, 1'/ ., 15K MF55K-15K ASE 4701-03-1502 2
RF213-150
R45 RES, MF, 1 /BW, 1'/ ., 174 MF55K-174 ASE 4701-03-1740 1
RF211-174
R47
R49 RES,MF,1/BW,1'%,357 MF55K-357 ASE 4701-03-3570 2
RF211-357
R48
RES, MF, 1 /8W, 1 ., 2 . 10K MF55K 4701-03-2101 1
RF212-210
R55
RES, MF, 1/BW, 1'/ ., 2 . 49K MF55K-2 .49K ASE 4701-03-2491 1
RF212-249
R59
RES .MF, 1/SW, 1 ., iM RN55D ASE 4701-03-1004 1
R60 RES,MF,1/8W,1%,48 .7K MF55K-48 .7K
ASE 4701-03-4872 1
R61 RES,MF,1/8W,I%,10K
MF55K-10K ASE 4701-03-1002 1
