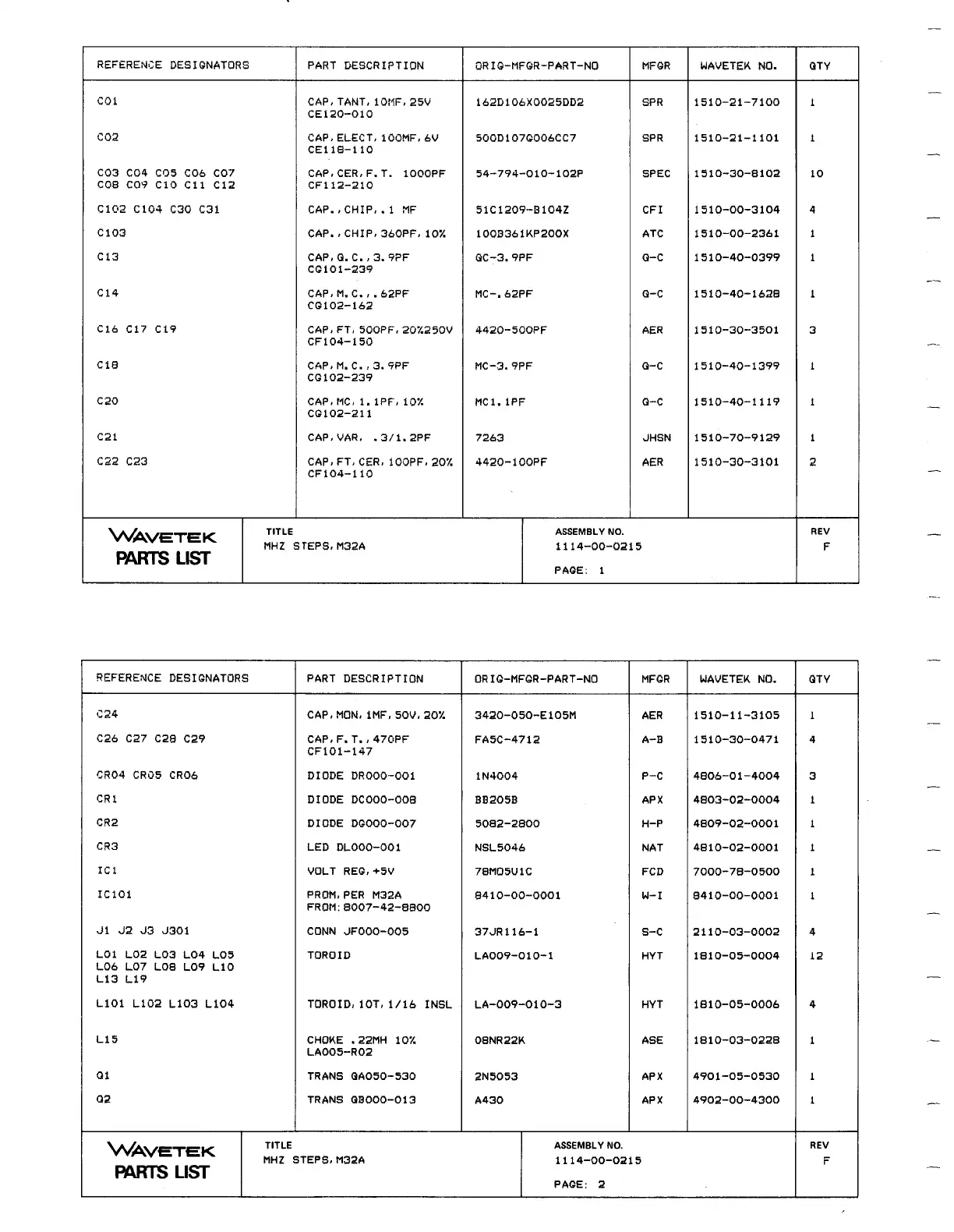

Wavetek 3000 - Page 121

REFERENCEDESIGNATORS PART
DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C01
CAP,TANT,10MF,25V 162D106XO025DD2 SPR 1510-21-7100 1
CE120-010
C02 CAP,ELECT,100MF,6V 500D1070006CC7 SPR 1510-21-1101 1
CEIIS-110
C03 C04 C05
C06 C07
CAP,CER,F
.T . 1000PF 54-794-010-102P SPEC 1510-30-8102 10
COS C09 CIO ClI C12 CF112-210
C102 C104 C30 C31 CAP .,CHIP, .1 MF 51C1209-13104Z CFI 1510-00-3104 4
C103 CAP.,CHIP,360PF,10'/ . 1003361KP20OX ATC 1510-00-2361 1
C13
CAP,O .C .,3 .9PF QC-3.9PF O-C 1510-40-0399 1
CG101-239
C14
CAP,M .C ., .62PF MC- .62PF 0-C 1510-40-1628 1
CG102-162
C16 C17 C19 CAP,FT,500PF,2O%25OV4420-50OPF AER 1510-30-3501 3
CF104-150
Ci8 CAP,M .C .,3 .9PF MC-3.9PF 0-C 1510-40-1399 1
CG102-239
C20 CAP,MC,1.lPF,10% MC1 .1PF O-C 1510-40-1119 1
CG102-211
C21 CAP,VAR, .3/1 .2PF 7263 JHSN 1510-70-9129 1
C22 C23
CAP,FT,CER,100PF,20'/ . 4420-IOOPF AER 1510-30-3101 2
CF104-110
WAVETEK
TITLE
ASSEMBLY NO . REV
MHZ STEPS,M32A 1114-00-0215 F
PARTS LIST
PAGE : 1
REFERENCE
DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C24 CAP,MON,iMF,50V,20% 3420-050-EI05M AER 1510-11-3105 1
C26 C27 C28 C29
CAP,F .T .,470PF FA5C-4712 A-B 1510-30-0471 4
CFIOI-147
CR04
CRO5 CR06 DIODE DR000-001 IN4004 P-C 4806-01-4004 3
CR1 DIODE
D0000-008 BB205B APX 4803-02-0004 1
CR2
DIODE DGOOO-007 5082-2800 H-P 4809-02-0001 1
CR3
LED DL000-001 NSL5046 NAT 4810-02-0001 1
IC1 VOLT REG,+5V 7SM05UIC
FCD 7000-78-0500 1
IC101 PROM,PER
M32A 8410-00-0001 W-I 8410-00-0001 1
FROM :8007-42-8800
J1 J2
J3 J301 CONN JFOOO-005 37JR116-1 S-C 2110-03-0002 4
LO1
L02 L03 L04 L05 TOROID LA009-010-1 HYT 1810-05-0004
12
L06 L07
LOB L09 L10
L13 L19
L101 L102 L103 L104
TOROID,10T,1/16 INSL LA-009-010-3 HYT 1810-05-0006 4
L15 CHOKE
.22MH 10'/ . OSNR22K ASE 1810-03-0228 1
LAO05-RO2
01
TRANS GA050-530 2N5053 APX 4901-05-0530 1
02 TRANS OBOOO-013 A430 APX 4902-00-4300 1
WAVETEK
TITLE
ASSEMBLY NO . REV
MHZ STEPS,M32A
1114-00-0215 F
PARTS LIST
PAGE : 2
