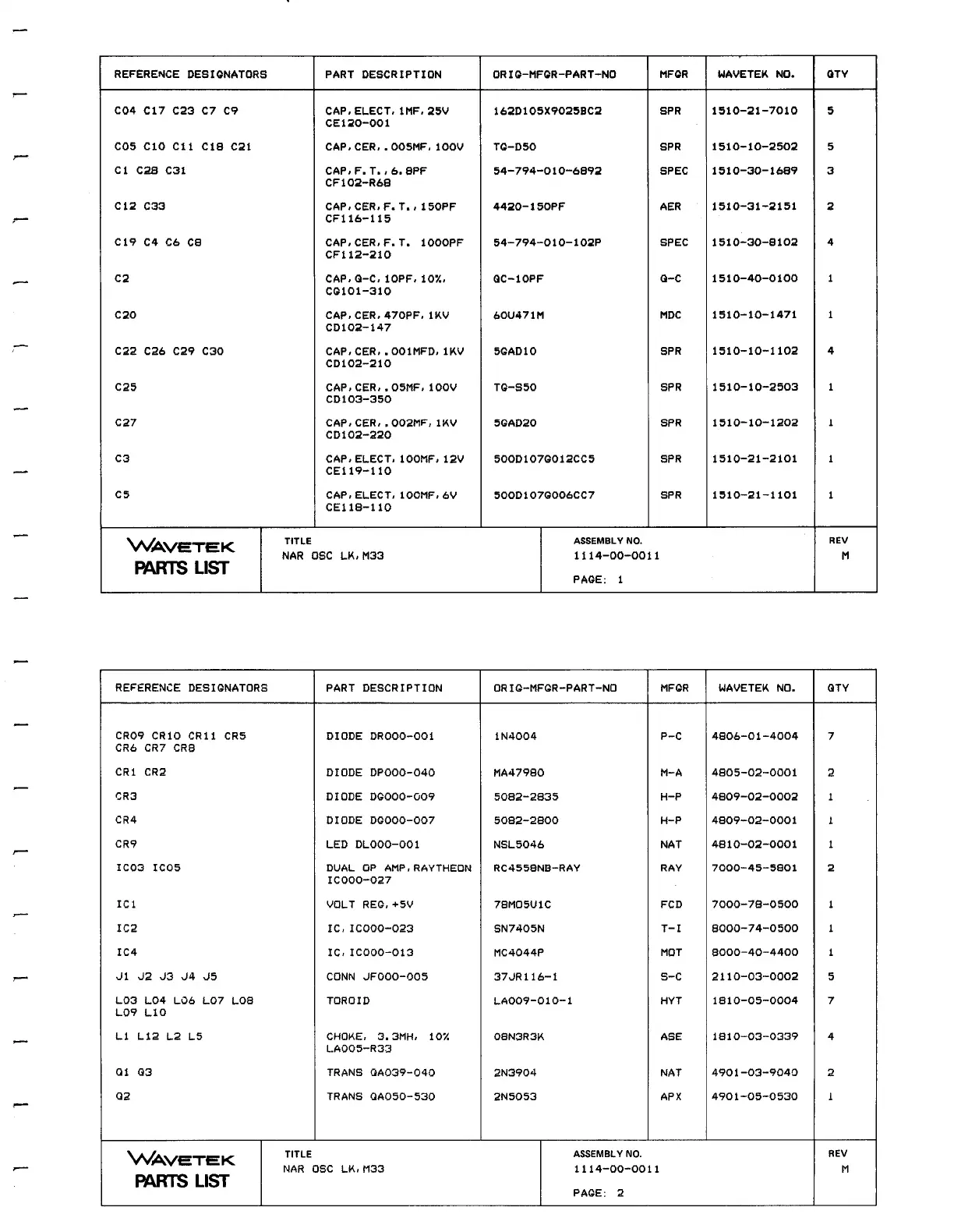

REFERENCEDESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C04 C17 C23 C7 C9 CAP,ELECT,IMF,25V 162D105X9025BC2 SPR 1510-21-7010 5
CE120-001
C05 CIO CII
CIS C21 CAP,CER, .005MF,100V TG-D50 SPR 1510-10-2502
5
C1 C28 C31 CAP,F .T .,6 .8PF 54-794-010-6892 SPEC 1510-30-1689 3
CF102-R68
C12 C33 CAP,CER,F .T .,150PF 4420-15OPF AER 1510-31-2151 2
CF116-115
C19 C4 C6 C8 CAP,CER,F .T . 1000PF 54-794-010-102P SPEC 1510-30-8102 4
CF112-210
C2 CAP, G-C, 10PF, 10'/ ., QC-IOPF 0-C 1510-40-0100 1
CGIOI-310
C20
CAP,CER,470PF,IKV 60U471M
MDC 1510-10-1471 1
CD102-147
C22 C26 C29 C30 CAP,CER, .OOIMFD,IKV 5GAD10 SPR 1510-10-1102 4
CD102-210
C25 CAP,CER, .05MF,IOOV TG-S50 SPR 1510-10-2503 1
CD103-350
C27 CAP,CER, .002MF,IKV 5GAD20 SPR 1510-10-1202
1
CD102-220
C3 CAP,ELECT,100MF,12V 500D107GO12CC5 SPR 1510-21-2101 1
CE119-110
C5 CAP,ELECT,1OOMF,6V 500D1070006CC7 SPR 1510-21-1101 1
CEIIB-110
WAVETEK
TITLE ASSEMBLYNO . REV
NAR OSC LK,M33 1114-00-0011 M
PARTS LIST
PAGE : 1
REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . GTY
CR09 CR10 CR11
CR5 DIODE DROOO-001 IN4004 P-C 4806-01-4004 7
CR6 CR7 CRS
CR1 CR2 DIODE DPOOO-040 MA47980 M-A 4805-02-0001 2
CR3 DIODE D0000-009
5082-2635
H-P 4809-02-0002
1
CR4
DIODE D0000-007 5082-2800 H-P 4809-02-0001 1
CR9 LED DL000-001 NSL5046 NAT 4810-02-0001 1
IC03 IC05 DUAL OP AMP,RAYTHEON RC4558NB-RAY RAY 7000-45-5801 2
I0000-027
IC1
VOLT
REG,+5V
7SM05UIC
FCD 7000-78-0500 1
IC2 IC,I0000-023 SN7405N T-I 8000-74-0500 1
IC4 IC,I0000-013 MC4044P MOT 8000-40-4400 1
J1 J2 J3 J4 J5 CONN JF000-005 37JR116-1 S-C 2110-03-0002 5
L03 L04 L06 L07 LOB TOROID LA009-010-1 HYT 1810-05-0004 7
L09 LIO
L1 L12 L2 L5 CHOKE, 3.3MH, 10'/ . 08N3R3K ASE 1810-03-0339 4
L .A005-R33
G1 03 TRANS GA039-040 2N3904 NAT 4901-03-9040 2
G2 TRANS GA050-530 2N5053 APX 4901-05-0530 1
