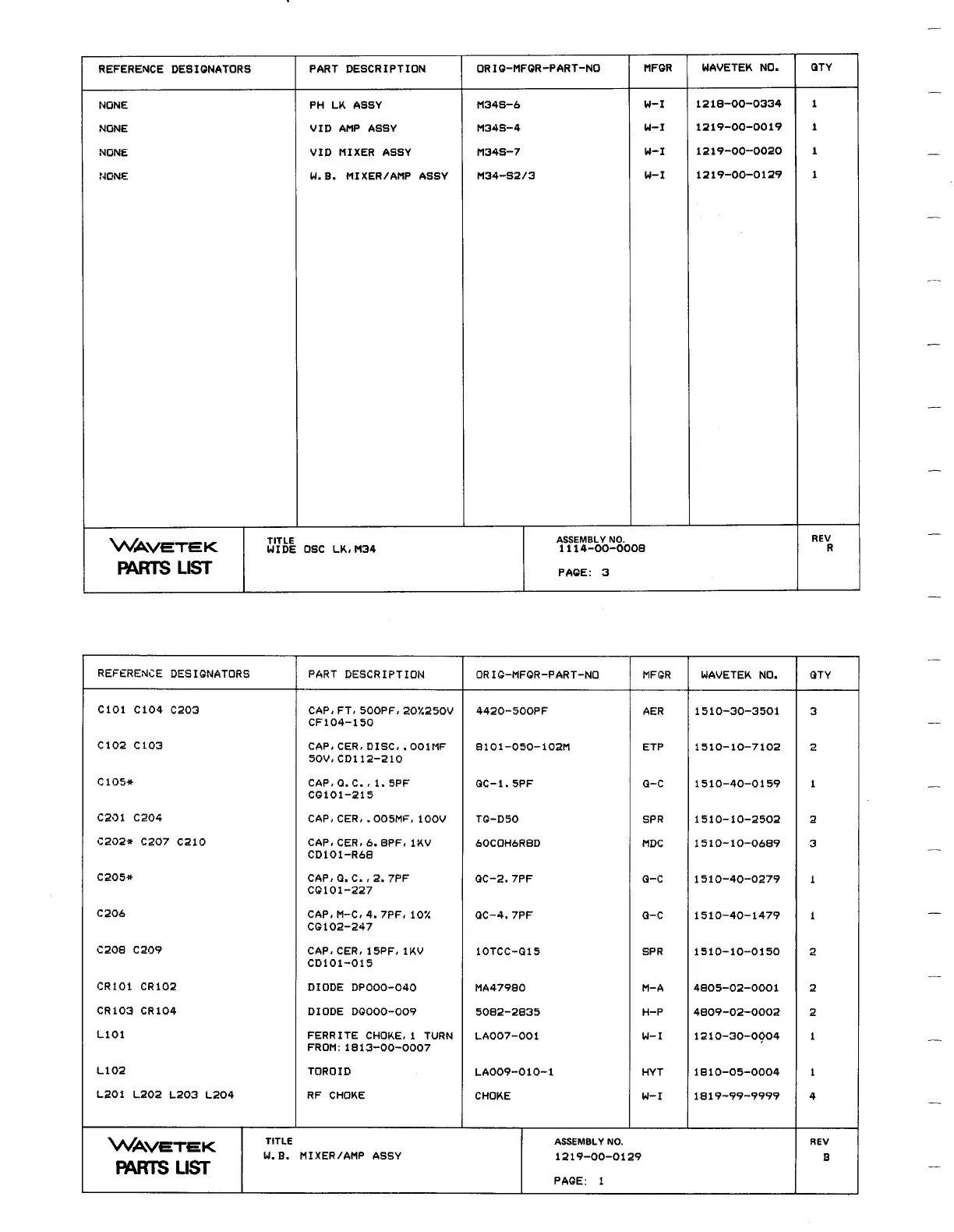

REFERENCE DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
NONE PH LK ASSY M34S-6 W-I
1218-00-0334 1
NONE VID AMP ASSY M34S-4
W-I 1219-00-0019 1
NONE VID MIXER ASSY M34S-7 W-I
1219-00-0020 1
NONE
W .B . MIXER/AM P ASSY M34-S2/3 W-I 1219-00-0129
1
WAVE
TITLE
WIDE OSC LK,M34
ASSEMBLYNO .
1114-00-0008
REV
R
PAIM LIST
PAGE : 3
REFERENCE
DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . QTY
C101 C104 C203 CAP,FT .500PF .20'%250V 4420-50OPF
AER 1510-30-3501 3
CF104-150
C102
C103 CAP,CER,DISC, .OOIMF B101-050-102M ETP 1510-10-7102
2
50V,CD112-210
0105#
CAP,O .C.,1 .5PF QC-1.5PF Q-C 1510-40-0159 1
CG101-215
C201 C204
CAP,CER, .OO5MF,IOOV TG-D50 SPR 1510-10-2502 2
0202# C207
C210 CAP,CER,6 .BPF,IKV 6000H6RBD MDC 1510-10-0689 3
CD101-R68
C205*
CAP,Q .C .,2 .7PF QC-2.7PF Q-C 1510-40-0279 1
CG101-227
C206
CAP,M-C,4 .7PF,10% QC-4.7PF
O-C 1510-40-1479 1
CG102-247
C208 C209 CAP,CER,15PF,lKV
IOTCC-015 SPR 1510-10-0150 2
CD101-015
CR101 CR102
DIODE DPOOO-040 MA47980 M-A 4805-02-0001 2
CR103 CR104 DIODE D0000-009
5082-2835 H-P 4809-02-0002 2
L101 FERRITE
CHOKE,1 TURN LA007-001 W-I 1210-30-0004 1
FROM :1813-00-0007
L102
TOROID LA009-010-1 HYT 1810-05-0004 1
L201 L202
L203 L204 RF CHOKE CHOKE W-1 1819-99-9999
4
WAVETEK
TITLE ASSEMBLYNO . REV
W .B . MIXER/AM P ASSY 1219-00-0129
B
AM LW
PAGE : i
