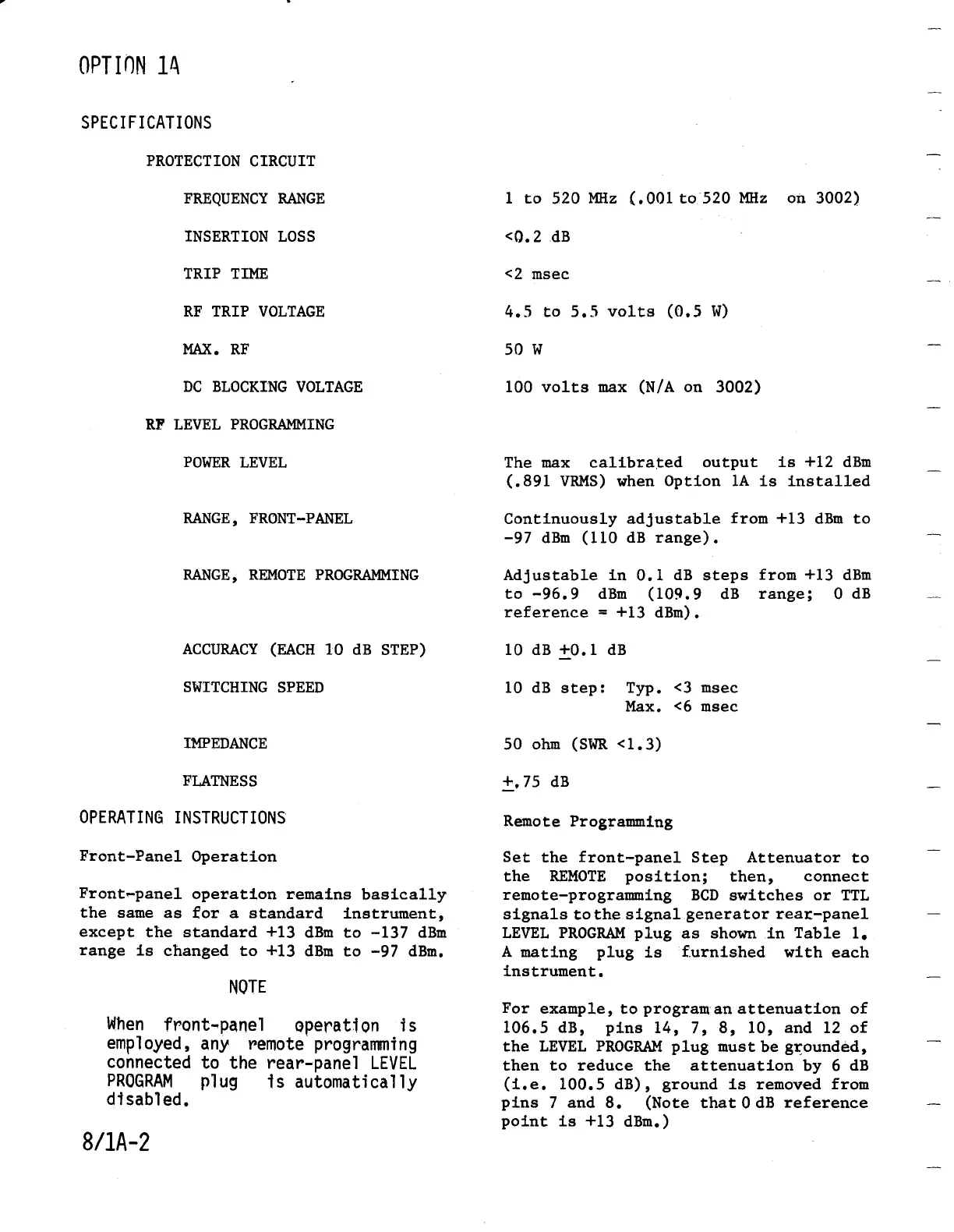

Wavetek 3000 - Option 1 A Specifications; Option 1 A Operating Instructions

OPTION 14
SPECIFICATIONS
PROTECTION CIRCUIT
FREQUENCY RANGE
INSERTION LOSS
TRIP TIME
RF TRIPVOLTAGE
MAX . RF
DC
BLOCKING
VOLTAGE
RF LEVEL PROGRAMMING
POWERLEVEL
8/1A-2
RANGE, FRONT-PANEL
RANGE, REMOTEPROGRAMMING
ACCURACY (EACH 10 dB STEP)
SWITCHING SPEED
IMPEDANCE
FLATNESS
OPERATING INSTRUCTIONS
Front-Panel
Operation
Front-panel
operation remains basically
the same as for a standard instrument,
except the standard +13 dBm to
-137
dBm
range is changed to +13 dBm to
-97
dBm .
NOTE
When front panel

operation is
employed, any
remote programing
connected to
the rear-panel LEVEL
PROGRAM

plug

is automatically
disabled .
1 to 520 MHz ( .001 to 520
MHz

on 3002)
<0 .2
.dB
<2 msec
4.5
to 5 .5 volts (0
.5
W)
50
W
100 voltsmax (N/A on 3002)
The max calibrated output is +12 dBm
( .891 VRMS) when Option 1A is installed
Continuouslyadjustablefrom+13 dBm to
-97
dBm (110 dB range) .
Adjustable in 0 .1 dB steps from+13 dBm
to -96 .9 dBm (109
.9
dB range ; 0 dB
reference = +13 dBm) .
10 dB +0 .1 dB
10
dB
step
: Typ . <3 msec
Max .
<6
msec
50 ohm (SWR <1 .3)
+,75 dB
RemoteProgramming
Set the front-panel Step Attenuator to
the REMOTE position
; then,
connect
remote-programming BCD
switches
or
TTL
signals to the signal generator
rear-panel
LEVELPROGRAMplugas shown in Table 1,
A mating plug is furnished with each
instrument .
For example, to programanattenuation of
106 .5
dB,
pins 14, 7, 8, 10, and 12 of
the LEVEL
PROGRAMplugmust be grounded,
then to reduce the attenuationby 6 dB
(i.e . 100 .5 dB), ground is removed from
pins
7 and 8 . (Note that O dB reference
point
is +13 dBm .)
