Wavetek 3000 - Option 1 B Specifications

Output Protection
FREQUENCY RANGE
INSERTIONLOSS
TRIP TIME
RF TRIP VOLTAGE
MAX RF
DC BLOCKING VOLTAGE
RF Level Programing
POWERLEVEL
PROGRAMMED RANGE
ACCURACY EACH STEP
S14ITCHING SPEED
IMPEDANCE
FLATNESS

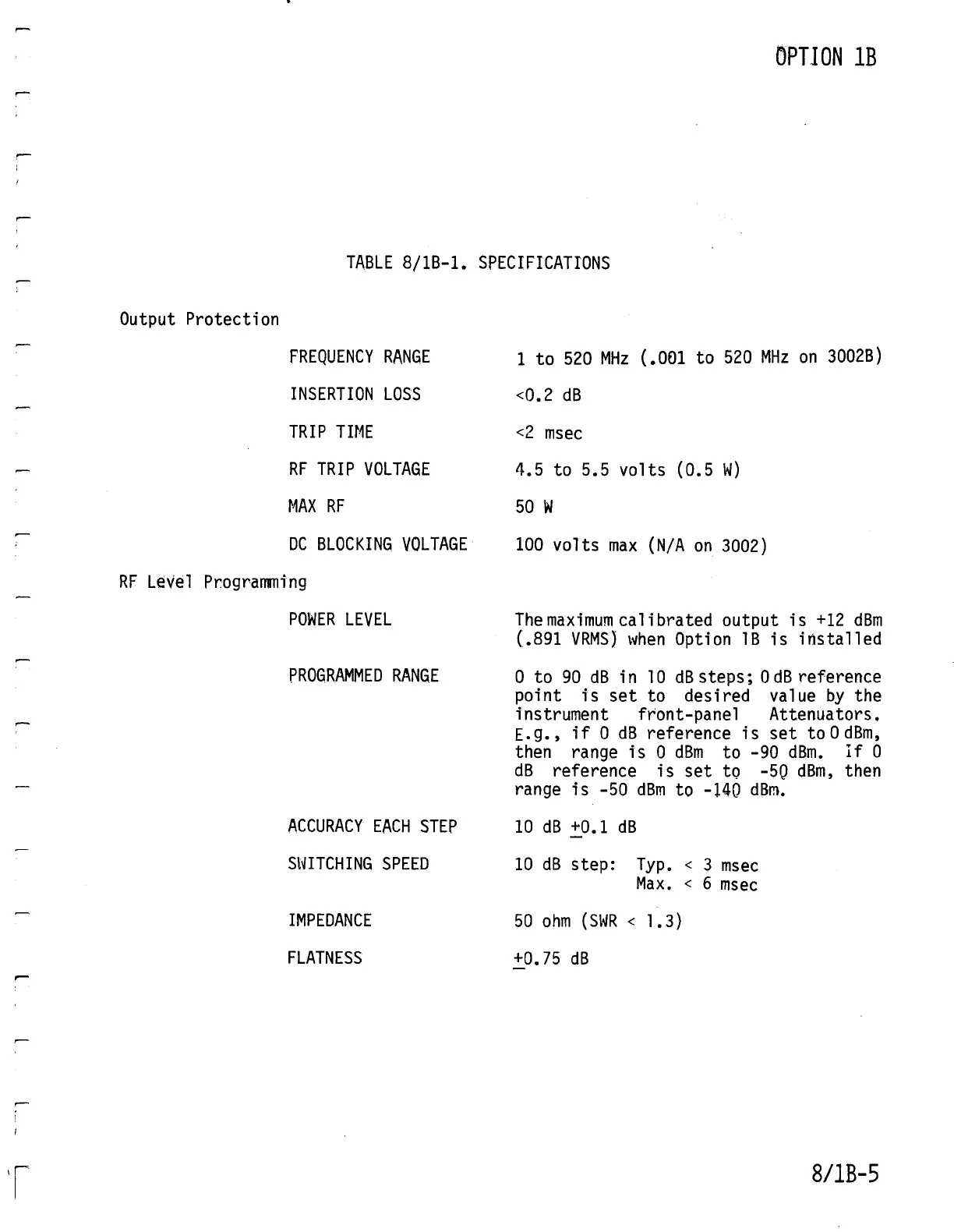

TABLE8/1B-1
. SPECIFICATIONS
1 to 520 MHz ( .001
to 520 MHz on 3002B)
<0 .2 dB
<2 msec
4.5 to 5 .5 volts (0.5 W)
50 W
100
volts max (N/A on 3002)
The maximumcalibrated output is +12 dBm
( .891 VRMS) when Option 1B is installed
0 to 90 dB in 10 dB steps ; 0 dB reference
point is set to desired value by the
instrument front-panel Attenuators .
E .g ., if 0 dB reference is set to O dBm,
then range is 0 dBm
to -90
dBm . if 0
dB reference is set to -5Q dBm, then
range is -50 dBm
to
-140 dBm .
10 dB +0 .1 dB
10 dB step : Typ .
<
3
msec
Max . < 6
msec
50 ohm (SWR
<
1 .3)
+0 .75 dB
OPTION 1B
