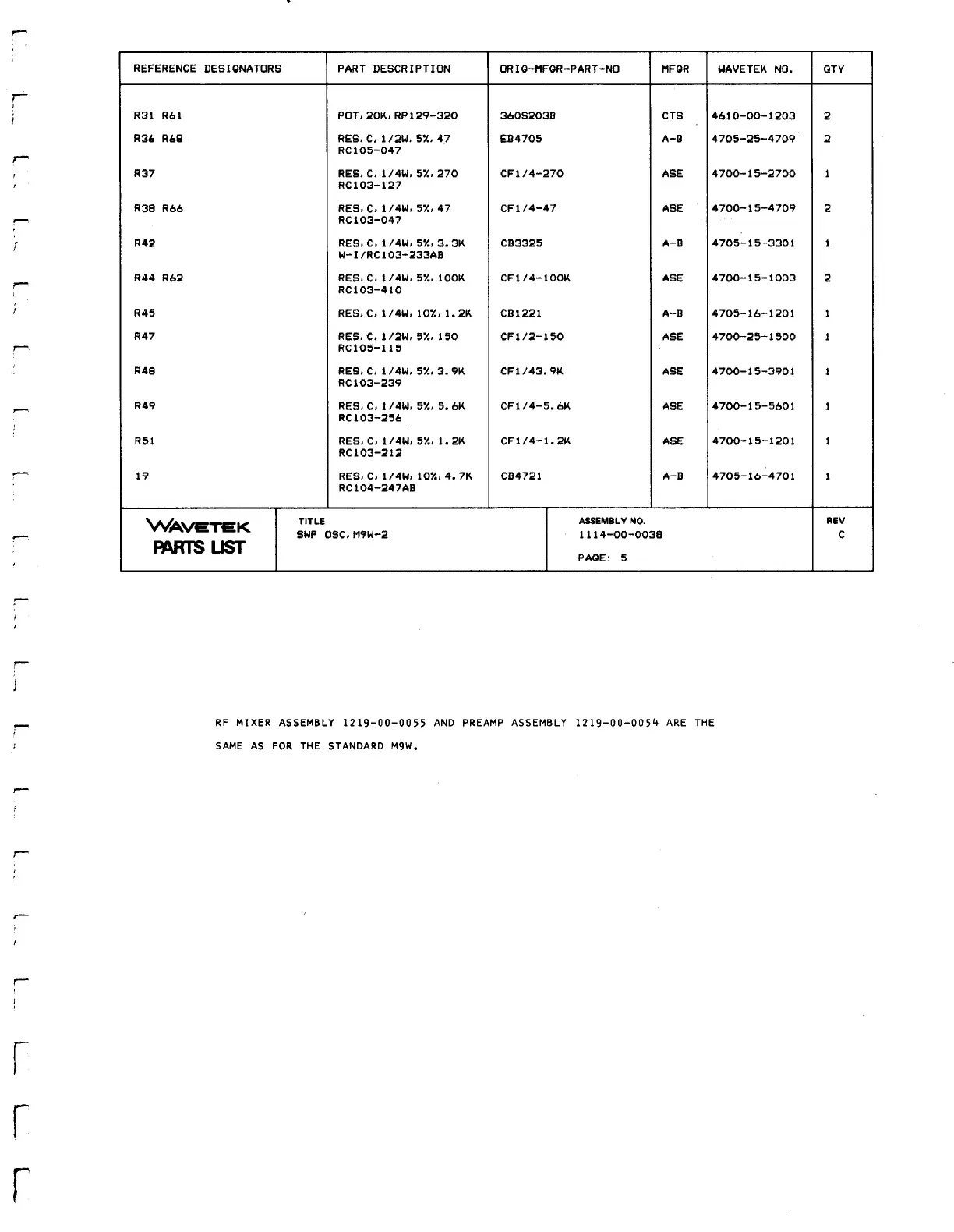

Wavetek 3000 - Page 217

RF MIXER ASSEMBLY 1219-00-0055 AND PREAMP ASSEMBLY 1219-00-0054 ARE THE
SAME AS FOR THE STANDARD M9W .
REFERENCE
DESIGNATORS PARTDESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
R31 R61 POT .20K .RP129-320 360S203B CTS 4610-00-1203 2
R36 R68 RES .C
.1/2W .5%
.4 7 EB4705 A-D 4705-25-4709 2
RC105-047
R37 RES . C . 1/4 W . 5'/ . . 270 CF1/4-270 ASE 4700-15-2700 1
RC103-127
R38R66 RES . C . 1/4 W . 5 .,47 CFI/4-47 ASE 4700-15-4709 2
RC103-047
R42
RES .
C . 1/4 W . 5Y . .
3 .3K CB3325
A-B 4705-15-3301 1
W-I/RC103-233AD
R44R62 RES .C .1/4W .5'% .100 K CFI/4-100K ASE 4700-15-1003 2
RC103-410
R45
RES .C
.1/4W
.10'/
.
.1 .2 K CB1221 A-B 4705-16-1201 1
R47 RES .C .1/2W .5% .15 0 CFI/2-150 ASE 4700-25-1500 1
RC105-115
R48 RES . C .
1
/4W .
5Y
. .
3 .
9K CF1 /43 . 9K
ASE 4700-15-3901 1
RC103-239
R49 RES . C . 1/4 W . 5'/ . . 5 .6K CFI/4-5 .6K ASE 4700-15-5601 1
RC103-256
R51 RES . C . 1/4 W . 5'/ . . 1 .2K CFI/4-1 .2K ASE 4700-15-1201 1
RC103-212
19 RES .C .1/4W .10% .4 .7 K CB4721 A-D 4705-16-4701 1
RC104-247AB
Wr G I GK
TITLE
ASSEMBLY NO . REV
SWP OSC .M9W-2 1114-00-0038 C
PAM
~~~
1 W
PAGE : 5
