Wavetek 3000 - Page 83

QFREQUENCY
ADJUST
02PLL 2 TP
03 PLL 3 T P
®PLL 4 T P

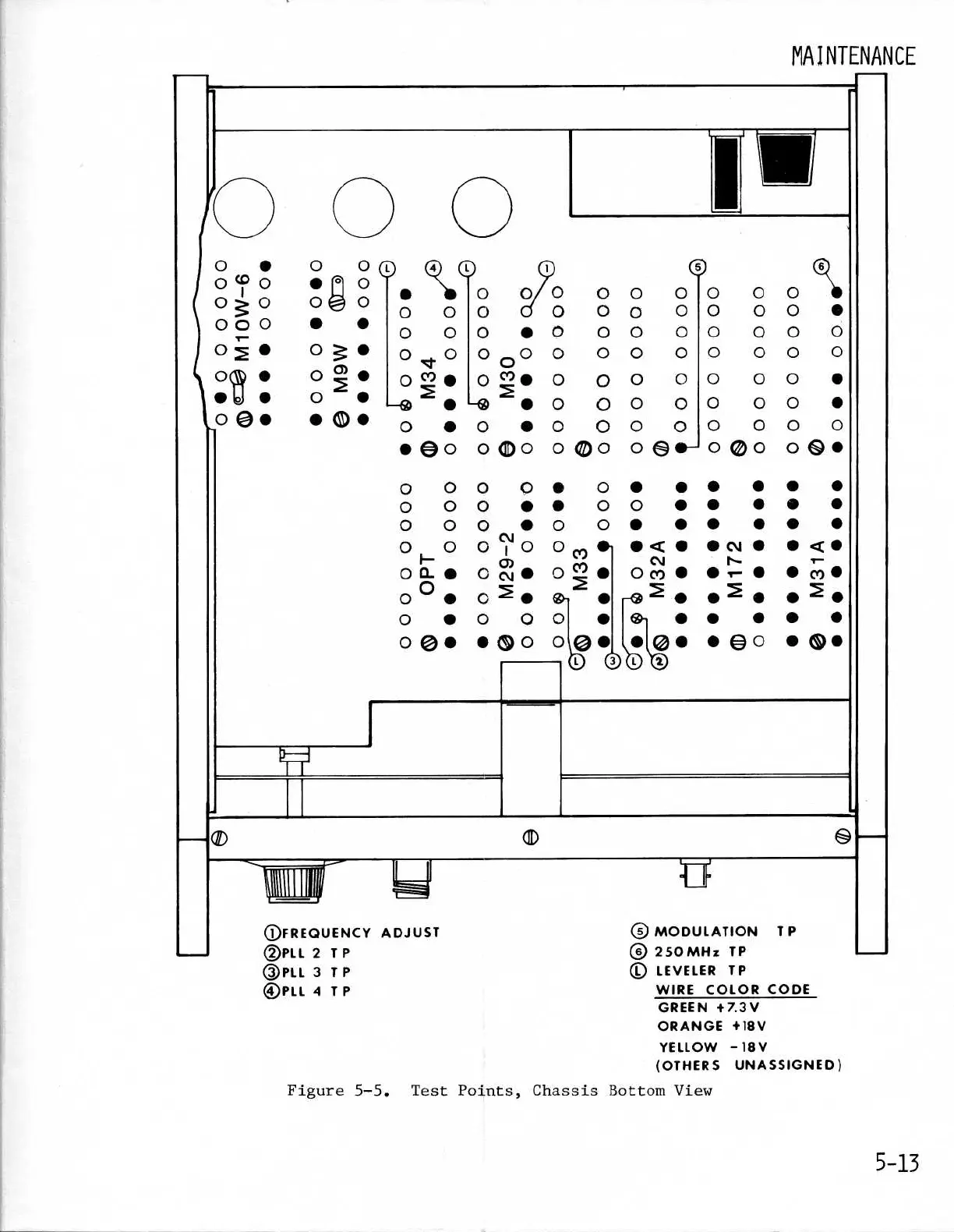

Figure
5-5 . Test Points,
Chassis BottomView
Qs
MODULATION

T P
(s

250
MHz TP
© LEVELER TP
WIRE COLOR CODE
GREEN +7 .3V
ORANGE +18V
YELLOW -18V
(OTHERS UNASSIGNED)
MAINTENANCE
5- 13
