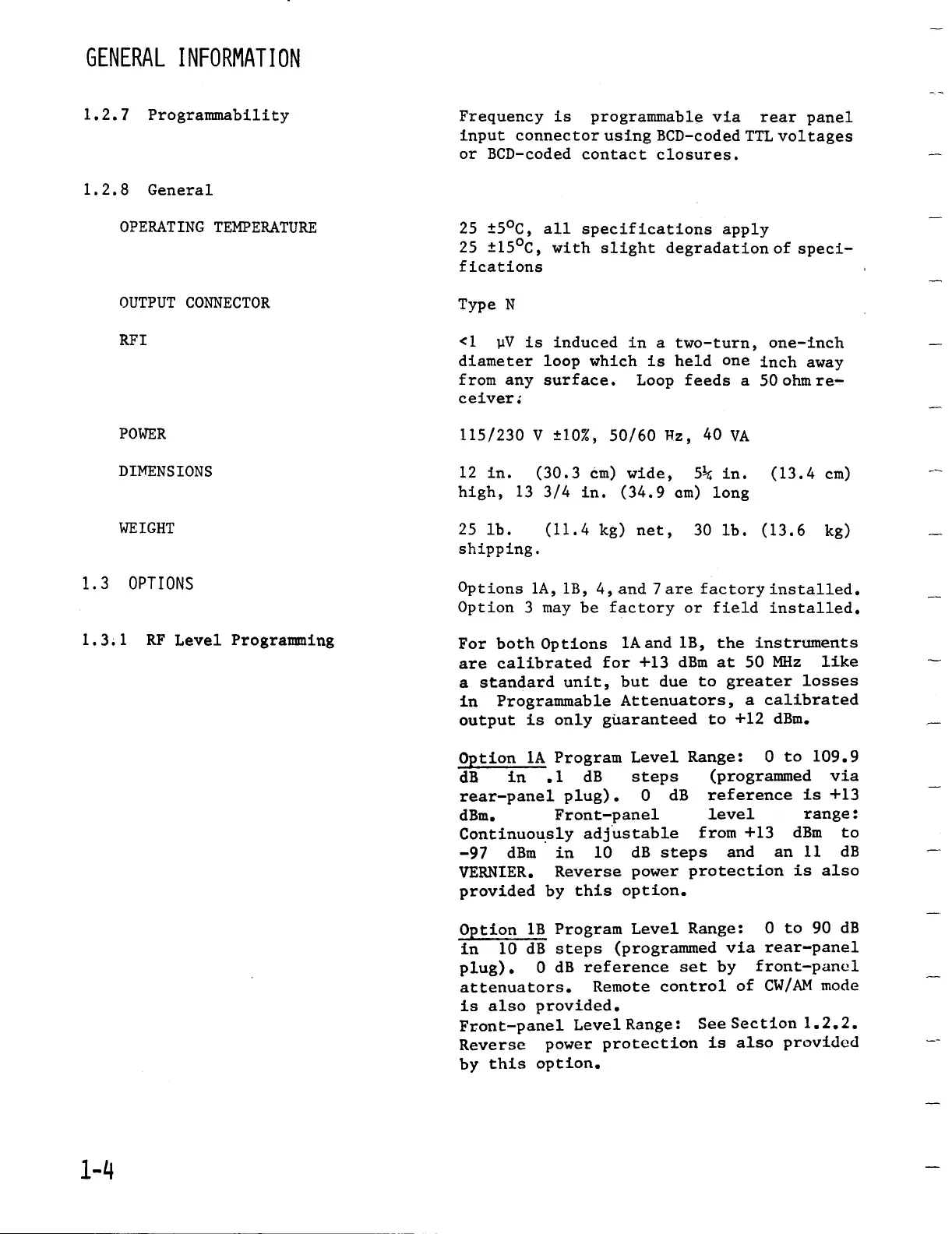

GENERAL INFORMATION
1 .2.7 Programmability

Frequency is programmablevia rear panel
input connectorusing BCD-coded
TTL voltages
or BCD-coded contactclosures
.
1 .2.8 General
OPERATING TEMPERATURE

25 t5 oC, all specifications apply
25 t15 0C, with slight
degradation of speci-
fications
OUTPUT
CONNECTOR

Type
N
RFI

<1
VV is induced in a two-turn, one-inch
diameter loop which is held
one
inch away
fromanysurface .

Loop feeds a
50
ohm
re-
ceiver ;
POWER

115/230 V ±10%, 50/60 Hz,
40
VA
DIMENSIONS

12
in . (30 .3 cm) wide, 5k in . (13 .4 cm)
high, 13 3/4 in . (34 .9 am) long
WEIGHT

25 lb .

(11 .4 kg) net,
30 lb . (13 .6 kg)
shipping
.
1 .3

OPTIONS

Options 1A, 1B, 4, and 7 are factoryinstalled
.
Option 3 may be factory or field installed .
1 .3 :1 RF Level Programming
For bothOptions 1A and 1B, the instruments
are calibrated
for +13 dBmat 50 MHz like
a standard unit, but due
to greater losses
in
Programmable Attenuators,
a calibrated
output
is onlyguaranteed to +12
dBm .
Option lA
Program Level Range : 0 to 109 .9
dB in .1 dB steps
(programmed via
rear-panel plug) . 0 dB
reference is +13
dBm .
Front-panel level
range :
Continuously
adjustable from+13
dBm
to
-97 dBm in 10
dB steps and an 11 dB
VERNIER . Reverse
power protection is also
providedby this option .
Option 1B Program
Level Range : 0 to 90 dB
in 10 dB steps (programmed
via rear-panel
plug) . 0 dB reference set by
front-panel
attenuators
. Remotecontrol of CW/AMmode
is also
provided .
Front-panel Level
Range :

See Section 1 .2.2 .
Reverse
power protection
is also provided
by this
option .
