Peugeot 207
Water Connection for Diesel Engines
WARNING!
Tighten all hose clamps with 2.0 + 0.5 Nm.
Any coolant running off should be collected using an appropriatecontainer.
Install hoses so that they are kink-free. Unless specified otherwise, always fasten using cable clips.
Position hose clamps and spring band clamps so that no other hose can be damaged.

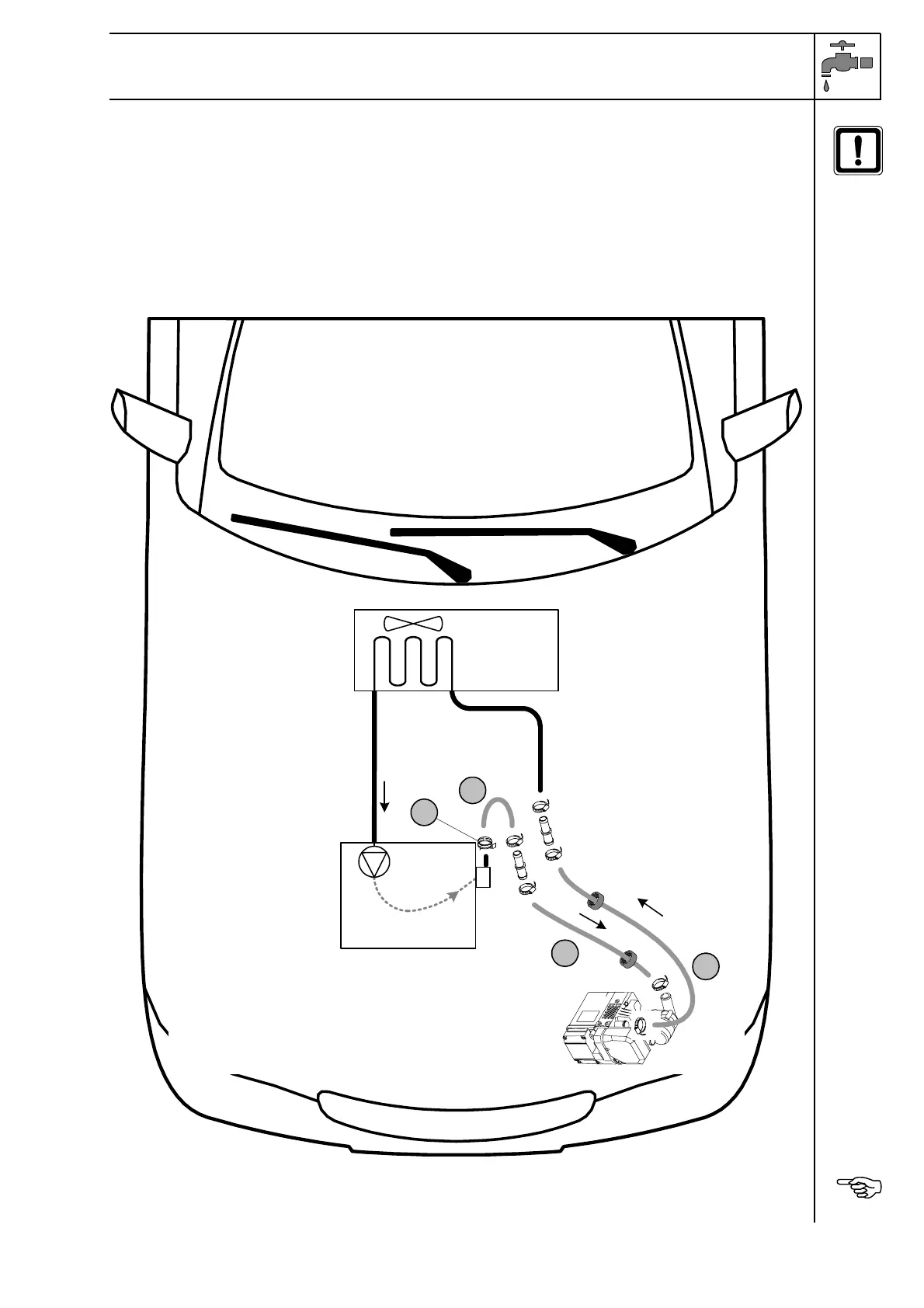

The connection should be "inline" based on the following diagram:
Water
installation
diagram
All undesignated clamps are Ø 20-27 mm hose clamps.
All connecting pipes = Ø 18x20. 1 is an original vehicle clamp.
Wärme-
tauscher
Motor
A
B
C
1
Heat
exchanger
