8
Peugeot 207

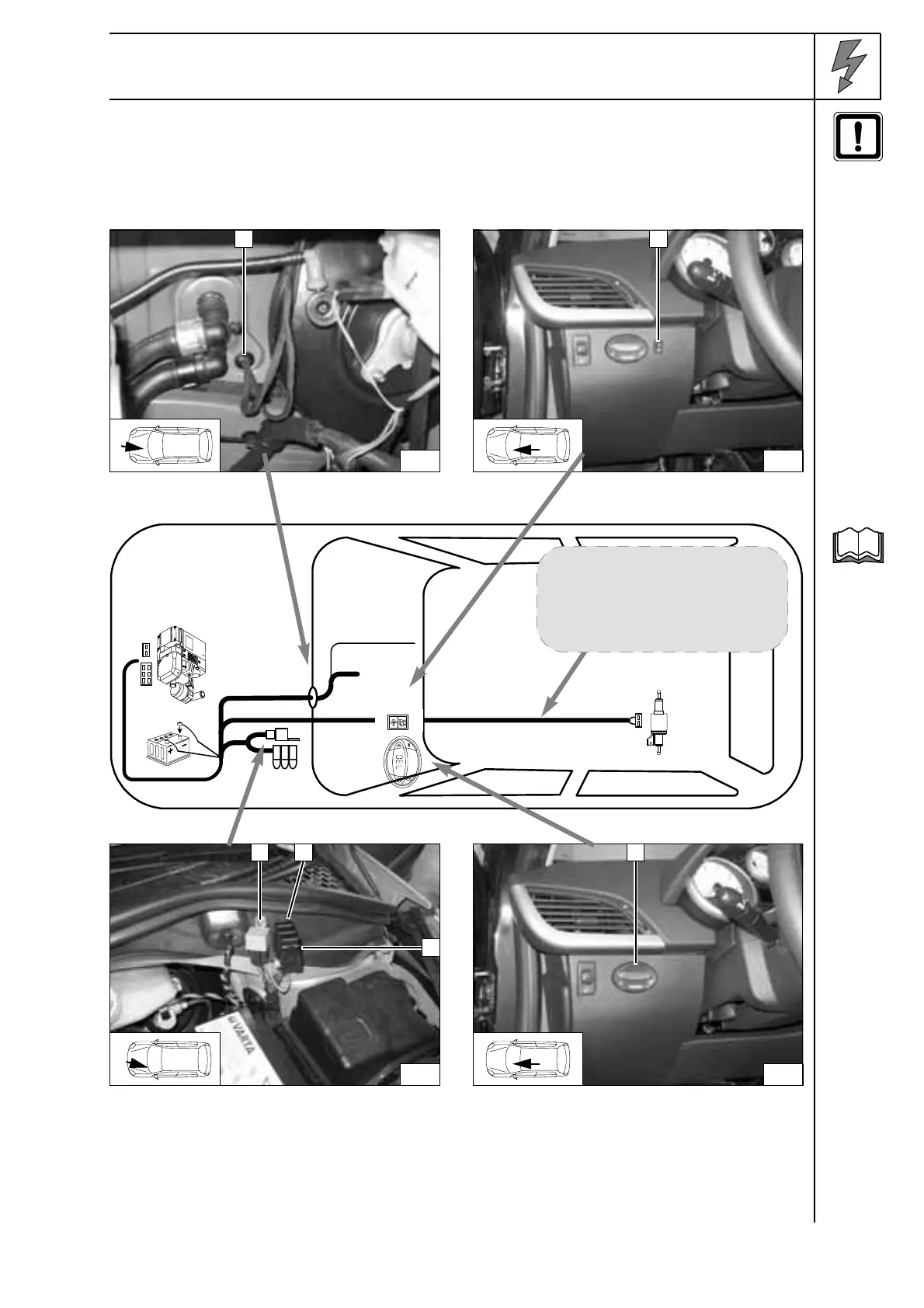

Electrical Connections
Cable harness feed-through
1 Ø 18 mm bore hole, enclosed protective
rubber sleeve
Summer / winter switch option
1 Summer / winter switch, bore hole Ø 12 mm.
Cable
harness
installation
diagram
Fuse holder, K3 relay
1 K3 relay, 5.5x13 bolt, bore hole
Ø 4.5 mm
2 Fuse holder retaining plate, 5.5x13 bolt, Ø 4.5
mm bore hole
3 Fuse holder
Time switch
1 Time switch
2
1
3
1
rt
sw
gr/ws
bl
br
Wait to install the metering pump
cable harness until later,
together with fuel pipe along the
original vehicle fuel lines on the
underbody.
i
4
2
3
1
5
1
