23
Peugeot 207
Fuel Connection
CAUTION!
Open the vehicle's tank-cap lock, ventilate the tank and then re-close the tank lock.
Catch any fuel running off with an appropriate container.
Install fuel line and metering pump cable harness so that they are protected against stone impact.
Unless specified otherwise, always fasten using cable clips.
Fit the fuel line and cable harness with edge protectors around sharp edges.
WARNING!

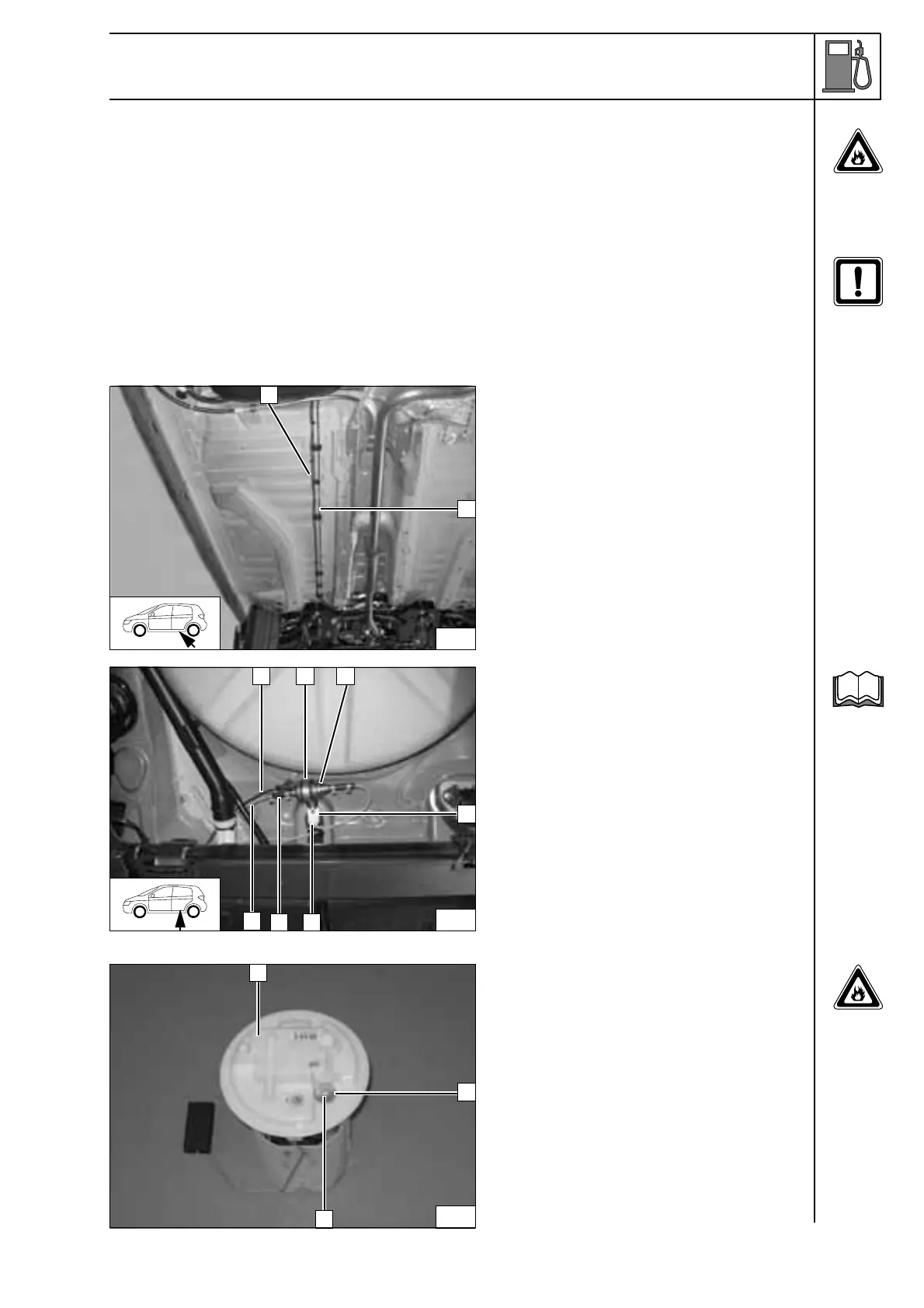

The fuel line and cable harness to the metering pump should be installed based on the cable harness
installation diagram.
1 Mecanyl fuel pipe and metering pump
cable harness
2 Original vehicle fuel lines
Installing
lines
Note the installation position of the metering
pump, see the Installation Instructions.
The installation location is in behind the
vehicle tank.
Fuel line from the heater unit on the pressure
side of the metering pump [side with
connector].
1 Metering pump cable harness
2 Tube clamp cable harness, silentblock,
flanged nut [2x]
3 Metering pump
4 Angle bracket
5 Original vehicle bolt
6 Hose section, Ø 10 mm hose clamps [2x]
7 Fuel line from the heater unit
Metering
pump
installation
location
For gasoline vehicles only
Remove the tank mounting 1 according to the
manufacturer's instructions.
2 Body washer
3 Copy the hole image, Ø 6 mm bore hole
Fuel take-
off
39
2
1
40
1 2
5
3
4
7
6
i
41
1
3
2
