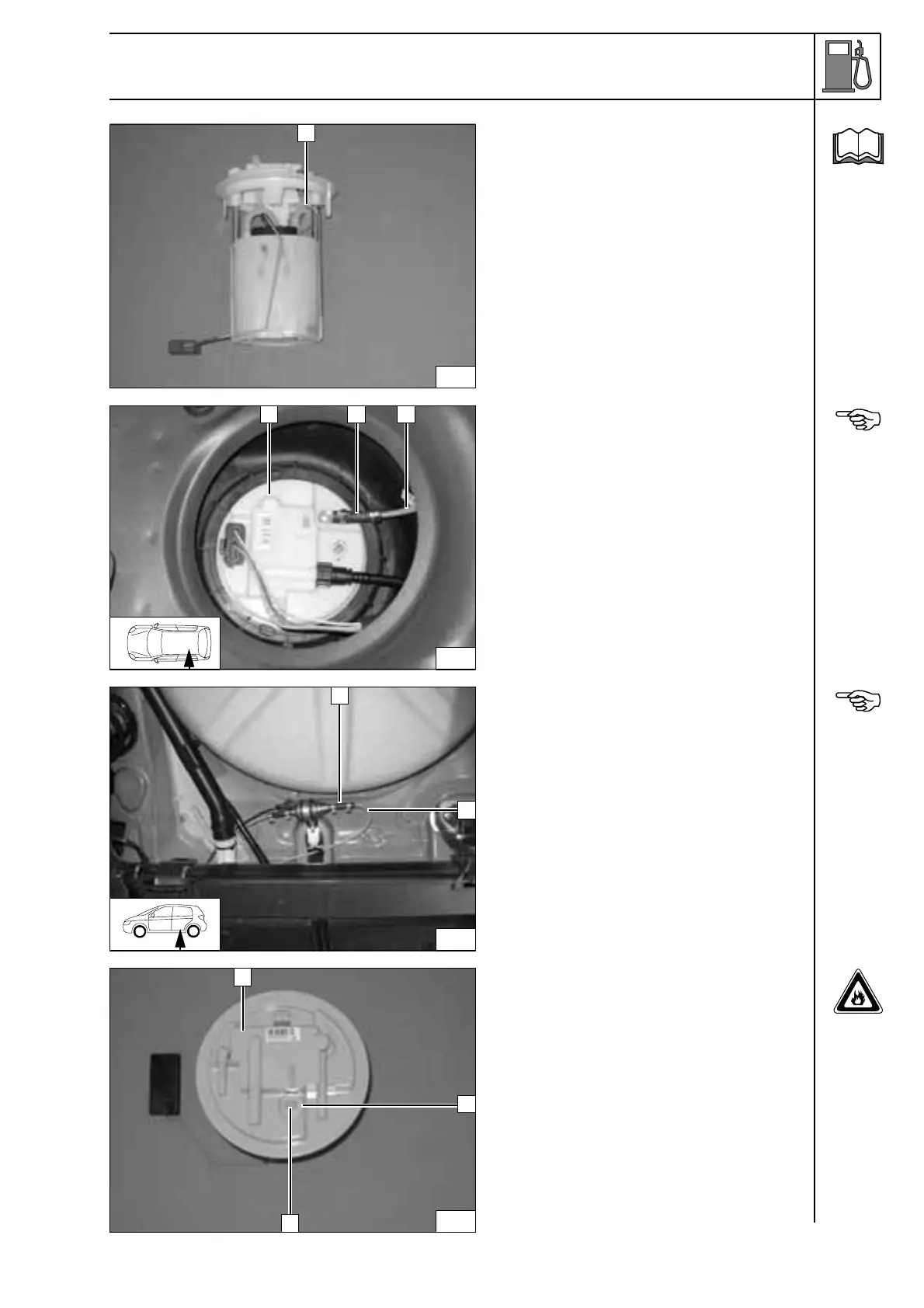

Peugeot 207
Shape, cut into sections, and insert the tank
extracting device 1 according to the template,
see the Installation Instructions.
Inserting
tank
extracting
device
Install the tank mounting 1 according to the
manufacturer's instructions.
2 Hose section, Ø 10 mm hose clamps [2x].
3 Remaining Mecanyl fuel line.
Connect-
ing the fuel
line
Fuel line from the fuel extractor on the intake
side of the metering pump [side without
connector].
Check the position of the components; adjust
if necessary. Check that these rotate freely.
1 Hose section, Ø 10 mm hose clamps [2x].
2 Remaining Mecanyl fuel line.
Connect-
ing to the
metering
pump
For diesel vehicles only
Remove the tank mounting1 according to the
manufacturer's instructions.
2 Body washer.
3 Copy the hole image, Ø 6 mm bore hole.
Fuel take-
off
42
2
i
43
1 2 3
44
2
1
45
1
6
2
