10
Peugeot 207
Automatic air conditioning blower
control

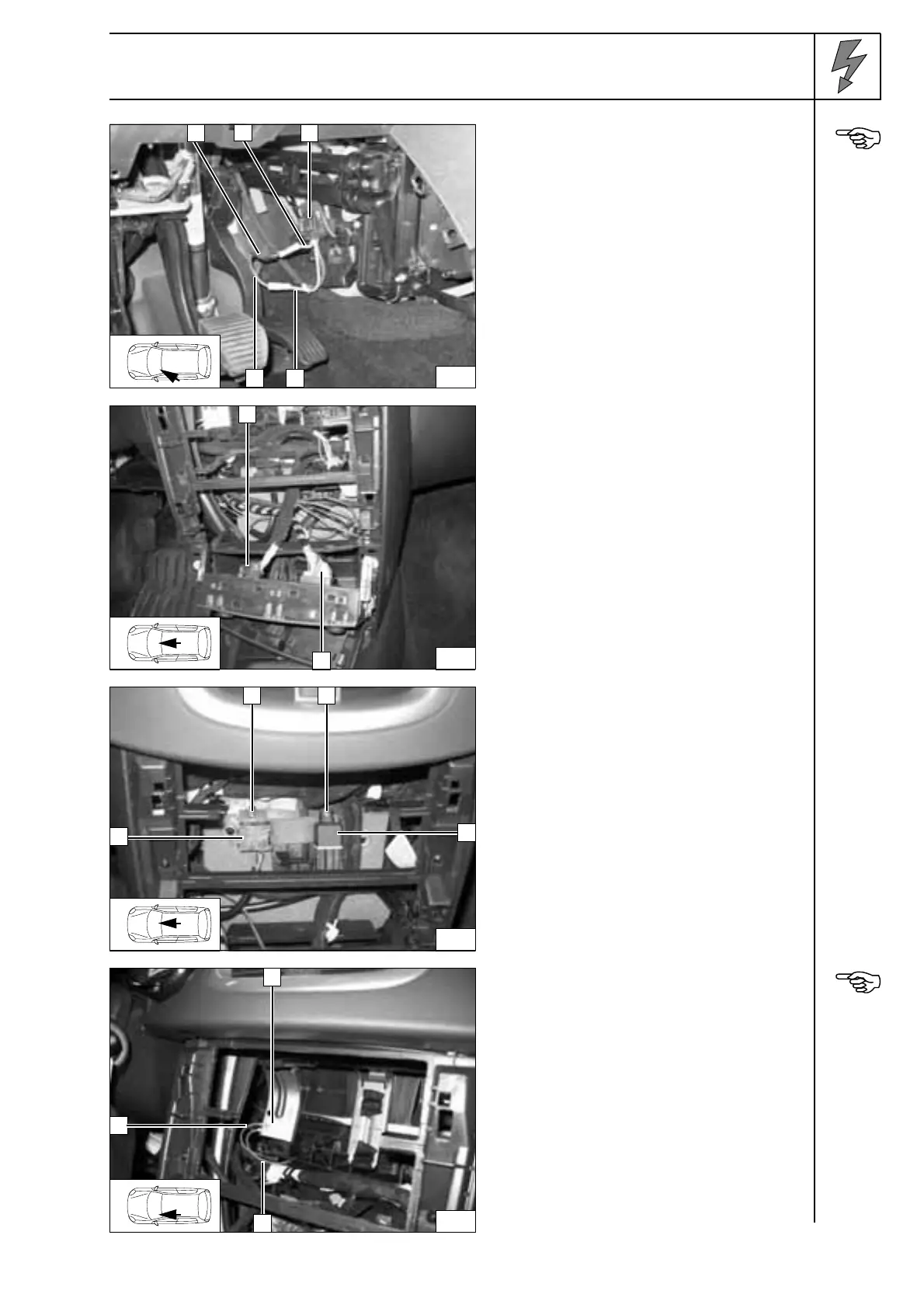

Connection to the 6-pin plug connection IC 26
3 from the blower motor cable harness..
Connect with enclosed yellow butt
connectors according to the circuit diagram.
1 Black (sw) wire from K3/30
2 White (ws) wire to connector IC 26
4 White (ws) wire from main power supply
PSF 1
5 Red (rt) wire to K3/87a
Connec-
ting the
blower
motor
1 Connector 18V NR
2 Connector 40V BE
Air
condition-
ing control
1 Original vehicle bolt [2x]
2 Relay K3.1
3 IPCU socket
Assem-
bling the
K3.1 and
IPCU
Connect with enclosed cable sockets.
1 Original vehicle bolt
2 Brown (bn) wire to K3.1/85
3 Brown (bn) wire to IPCU/85
Connect-
ing the
ground for
IPCU and
K3.1
7
1
4
2
5
3
8
1
2
9
1
3
2
1
10
1
3
2
