Webasto Thermo Top C User Manual

14
Peugeot 207

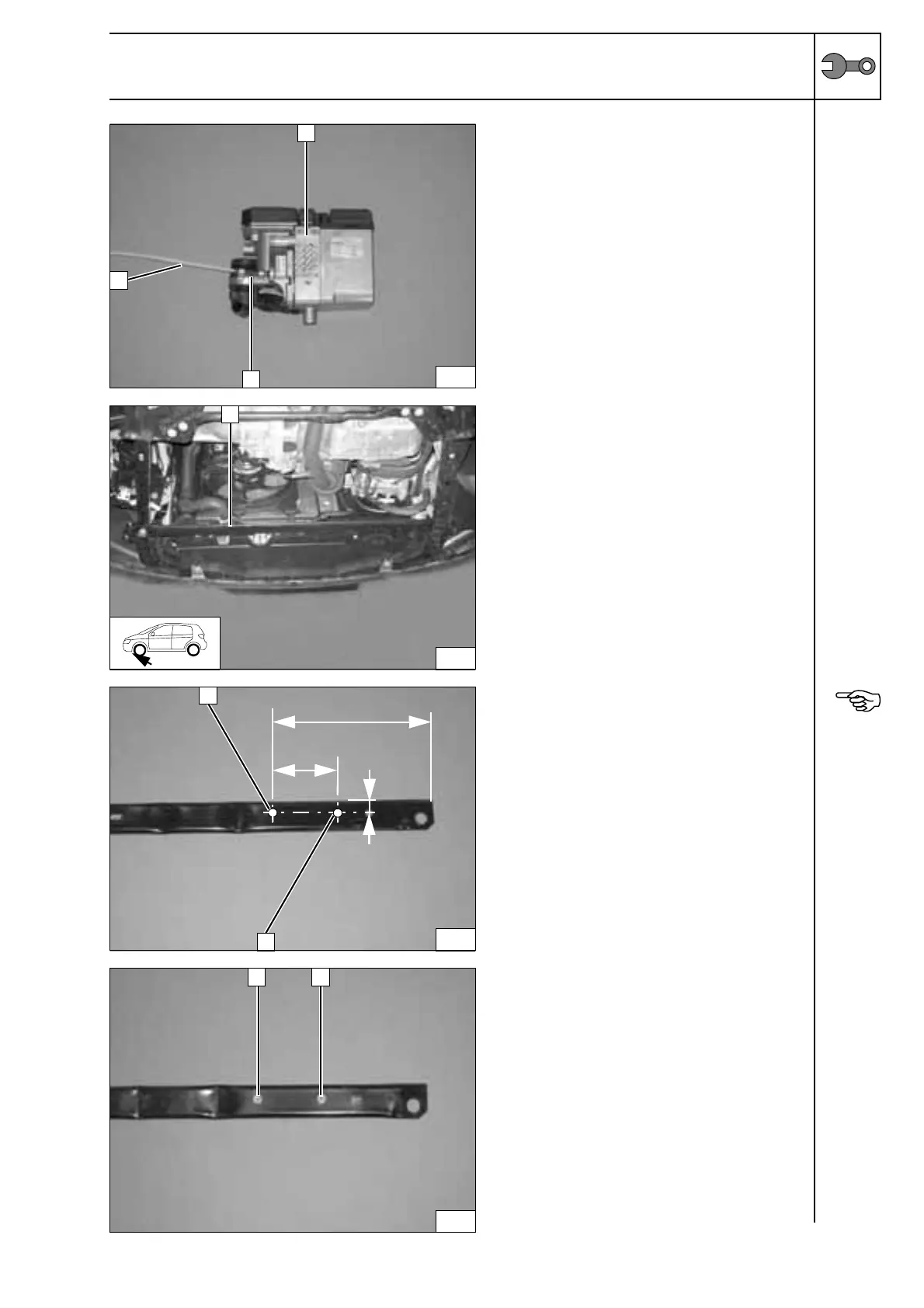

Preparing the Heater Unit
1 Heater unit
2 Hose section, Ø 10 mm hose clamps [2x]
3 Mecanyl fuel line
Assem-
bling the
fuel line
Preparing the Installation Location
1 Disassemble the original vehicle strut
Disassem-
bling the
strut
Transfer the hole image according to the
illustration and drill Ø 9.1 mm bore holes [2x]
through the strut at position 1.
Copying
the hole
1 M6 rivet nuts [2x]
Inserting
rivet nuts
1
2
3
17
18
1
19
1
1
235 mm
90 mm
25 mm
20
1 1
