Webasto Thermo Top C User Manual

26
Peugeot 207

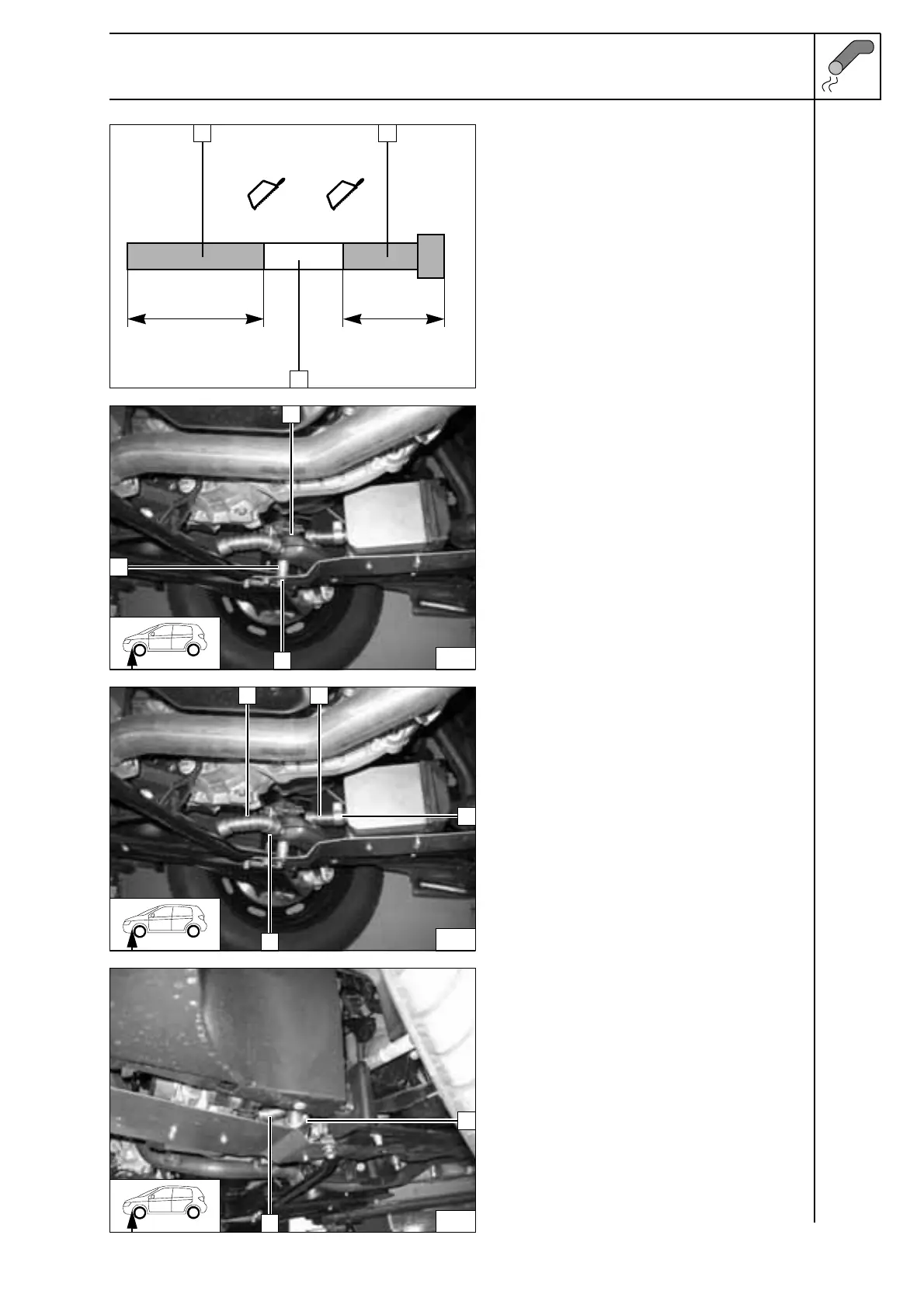

Exhaust System
For gasoline vehicles only
1 Exhaust pipe
a = 230 mm
2 Exhaust end section
b = 100 mm
Dispose of section X
Preparing
the
exhaust
pipe
1 Silencer
2 M6x55 bolt, flanged nut
3 40 mm spacer
Assem-
bling the
silencer
1 Exhaust end section
2 Exhaust pipe
3 Hose clamp [2x]
Assem-
bling the
exhaust
pipe.
1 Hose clamp
2 Exhaust pipe
Preparing
the
exhaust
pipe
a b
1 2
X
49
1
2
3
3
1 2
3
50
1
2
51
