Webasto Thermo Top C User Manual

27
Peugeot 207
For diesel vehicles only

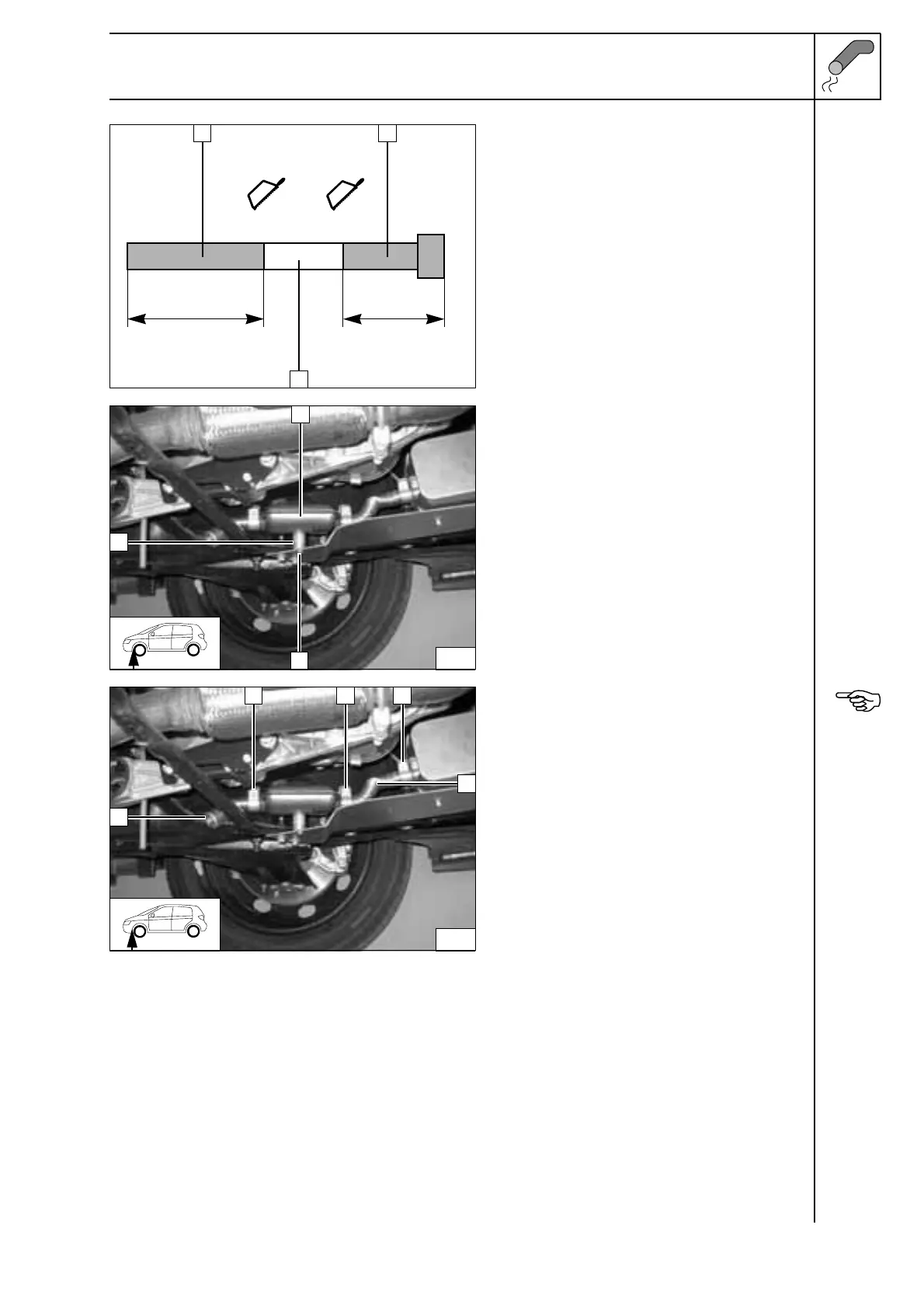

1 Exhaust pipe
a = 170 mm
2 Exhaust end section
b = 100 mm
Dispose of section X
Preparing
the
exhaust
pipe
1 Silencer
2 M6x55 bolt, flanged nut
3 40 mm spacer
Assem-
bling the
exhaust
end
section
Ensure sufficient distance from adjacent
components.
1 Hose clamps [3x]
2 Exhaust pipe
3 Exhaust end section
Position-
ing rubber
profile
a b
1 2
X
1
2
3
52
2
1 1 1
3
53
