Weber mt CF 4 - Checking the Fuel Level, Robin;Honda Engine; Checking the Engine Oil Level; Hatz Engine

CF-4 13
Caution!
The engine oil level must be checked with the soil compactor
standing horizontally on the ground.
- Undo the oil filler plug with the oil dipstick (7/1), wipe it off with a
clean, non-fluffing cloth and insert it again.
Caution!
-Screw the oil dipstick (7/1) down.
-Undo the oil dipstick once again.
Caution!
The oil level must reach up to the top mark
(7/max).
- If required, add engine oil according to paragraph 3.3.1 (refer to
paragraph 3.4 for quantities and specifications).
- Firmly screw the oil dipstick down.
2.4.1.1Checking the Fuel Level, Robin/
Honda Engine
- Put the soil compactor out of operation as described
in paragraph 2.7.
- Clean the area around the filler neck.
- Undo the cap (5/1) to open the fuel tank (5/2).
Caution!
Fill the tank up with clean regular gasoline
only. Refer to paragraph 3.4 for quantities
and specifications.
- Fill the tank up to the bottom edge of the filler neck
(6/1).
Danger!
Take care that fuel does not come in
contact with hot engine parts. Extinguish
all open flames and do not smoke while
filling the tank.
Environment Hazard!
Always wipe up any spilled fuel. Dispose
of the fuel-soaked cloth in an
environmentally-friendly manner.
- Firmly close the fuel tank with the filler cap (5/1).

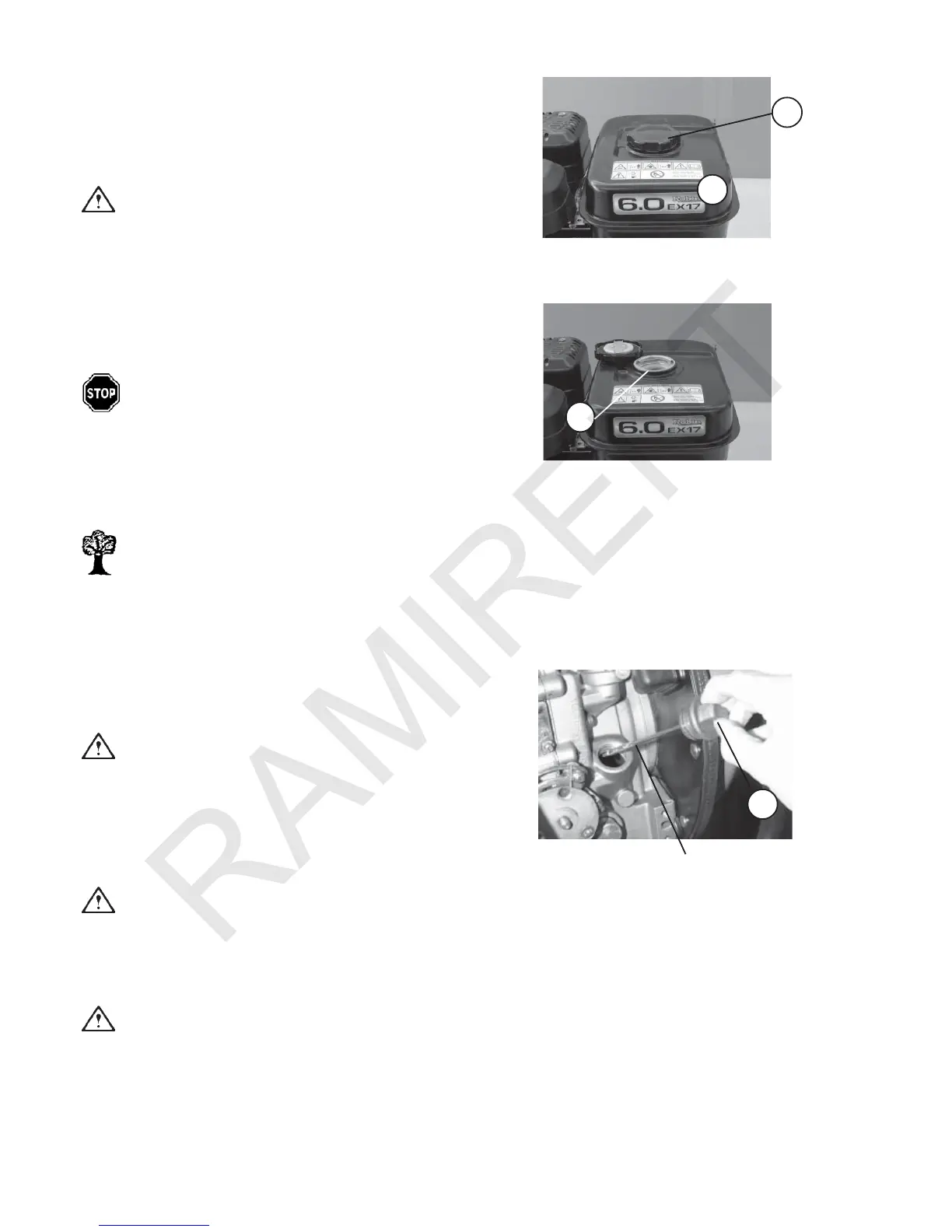

Figure 5
Figure 6
Figure 7
1
max
1
2.4.2 Checking the Engine Oil Level
2.4.2.1 Hatz Engine
1
2
