30 CF-4
3.3.2 Cleaning/Replacing the Air Filter Cartridge
3.3.2.1 Hatz Engine
- Loosen the fastening screw (42/2) and remove the cover (42/1)
from the air filter housing.
- Pull the air filter element (43/1) out of the air filter housing (43/2)
and blow or knock it clean.
Caution!
If this procedure does not provide a sufficient cleaning (e. g.
because of humid or oily dirt), a new filter element must be
used.
- Insert the filter (43/1) again.
- Put the cover (42/1) on the air filter housing again and firmly
close the housing with the screw (42/2).

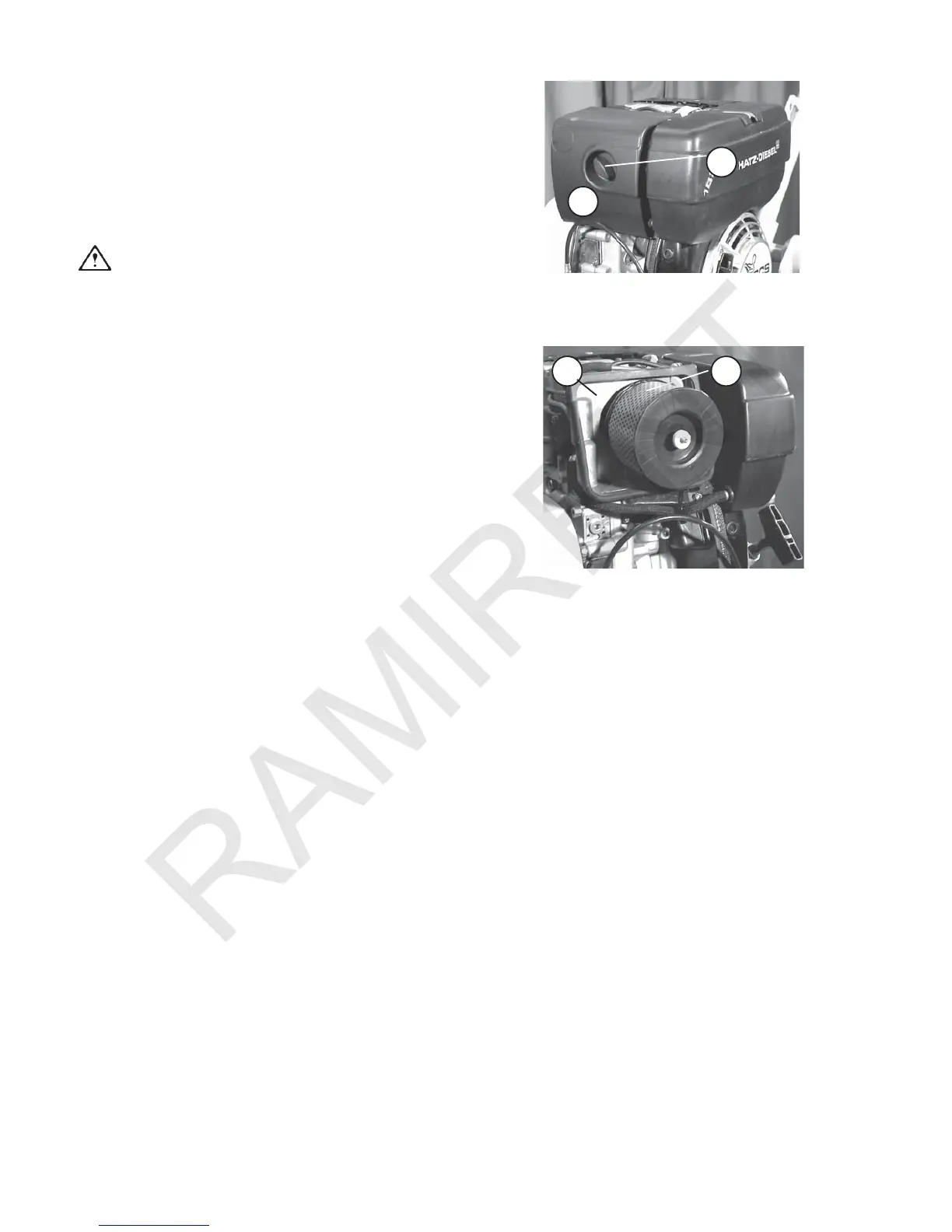

Figure 42
Figure 43
1
2
1
2
