3.3.1.2 Changing/Adding Engine Oil - Robin/
Honda Engine
- Put the soil compactor out of operation as described in
paragraph 2.7.
Caution!
Drain off the engine oil at operating temperature and
with the soil compactor standing horizontally on the
ground only.
- Put a drain pan under the outlet.
Environment Hazard!
Choose a drain pan having a sufficient capacity to catch
all the used oil. Do not let used oil run into the soil.
Dispose of the collected used oil in an environmentally-
friendly manner (acc. to statutory pollution control
regulations).
Wipe up any oil residues and dispose of the oil-soaked
cloth in an environmentally-friendly manner.
Danger!
Danger of scalding because of hot oil.
Important!
Screwing the oil drain hose down opens the drain valve
- oil escapes.
- Undo the oil filler plug/dipstick (40/1).
- Unscrew the protective cap of the oil drain valve (40/2).
- Top up with engine oil through the oil filler opening (40/3)
according to the quantity chart 3.4.
- Check the oil quantity by means of the plug/dipstick (40/1)
(refer to paragraph 2.4.2).
- Close with the plug/dipstick (40/1) and check for tightness.

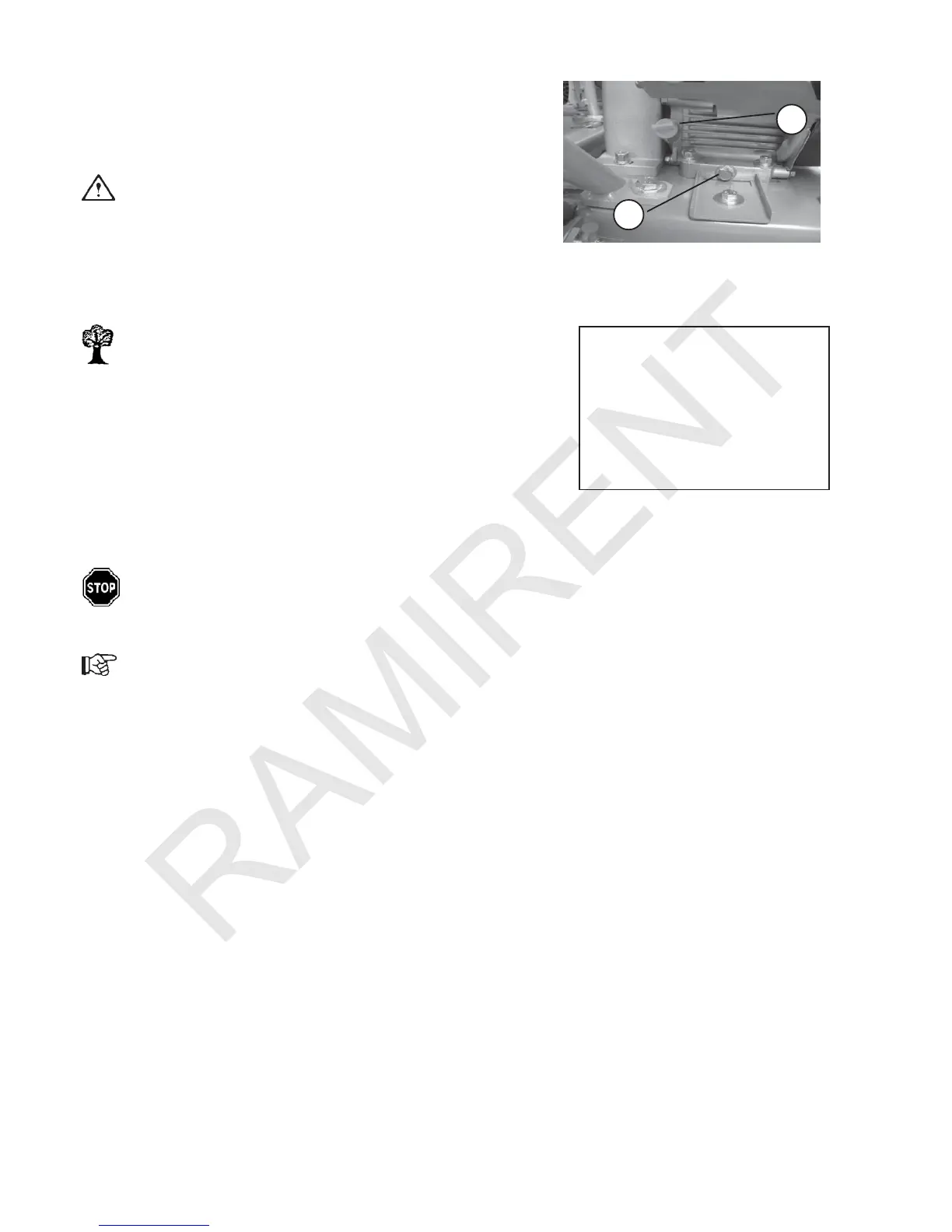

Figure 40
1
2
Figure 41
