Weber mt CF 4 - Fitting the Water Sprinkler System

16 CF-4
- Fasten the sprinkler tube (13/1) with the two
screws (13/2) at the front.
- Fasten the water tank (14/1) to the protective frame
by means of the screws (14/2).
- When the stop cock is opened (14/3), the water
sprinkler system (13/1) sprays water in front of the
machine's base plate.
Caution!
Top the water tank (15/1) up with clean water
only, otherwise the water sprinkler system
(13/1) will clog up.
- The water tank can be filled by opening the cover
(15/2).
Caution!
In case of danger of frost, completely drain
the water tank (15/1).
2.4.5 Fitting the Water Sprinkler System

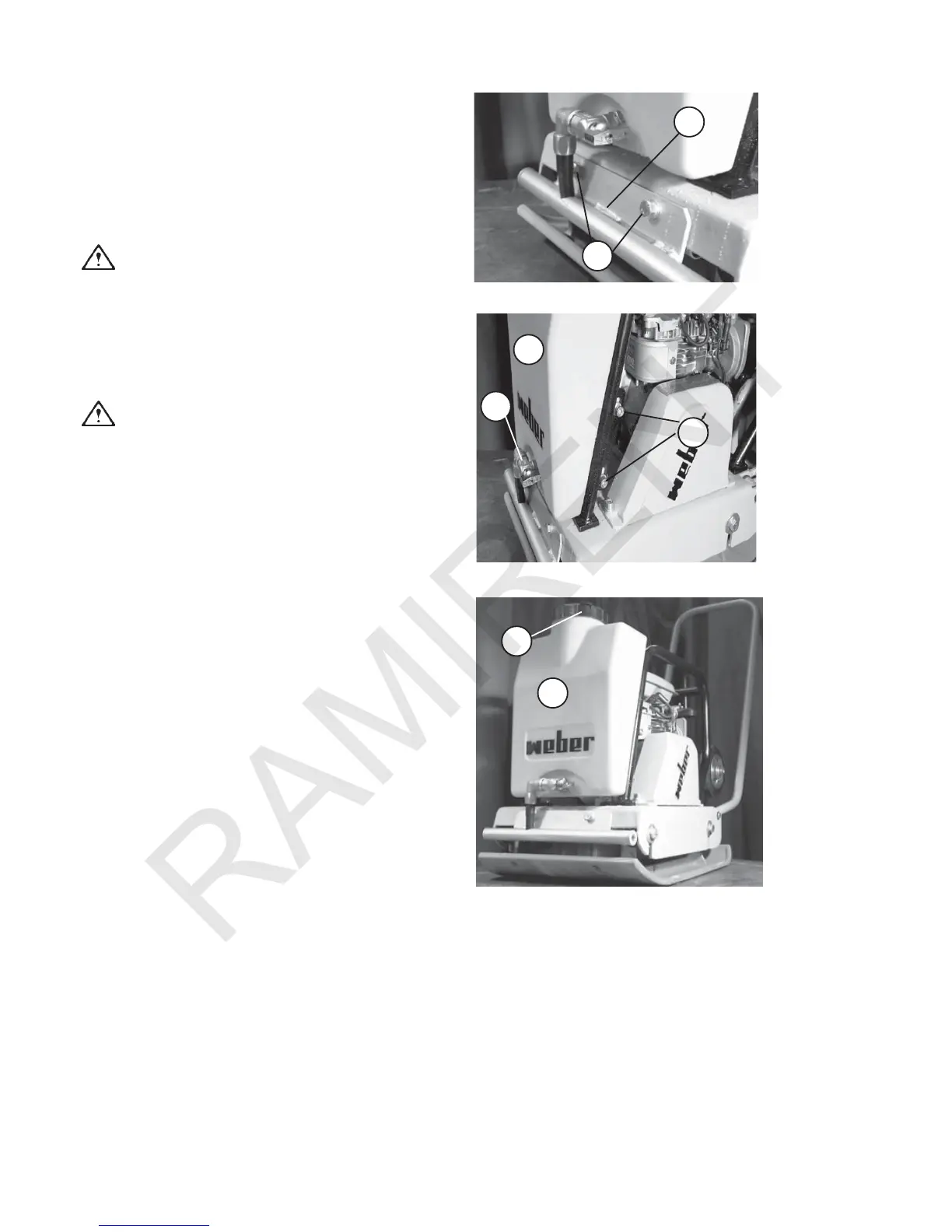

Figure 13
Figure14
Figure 15
