36 CF-4

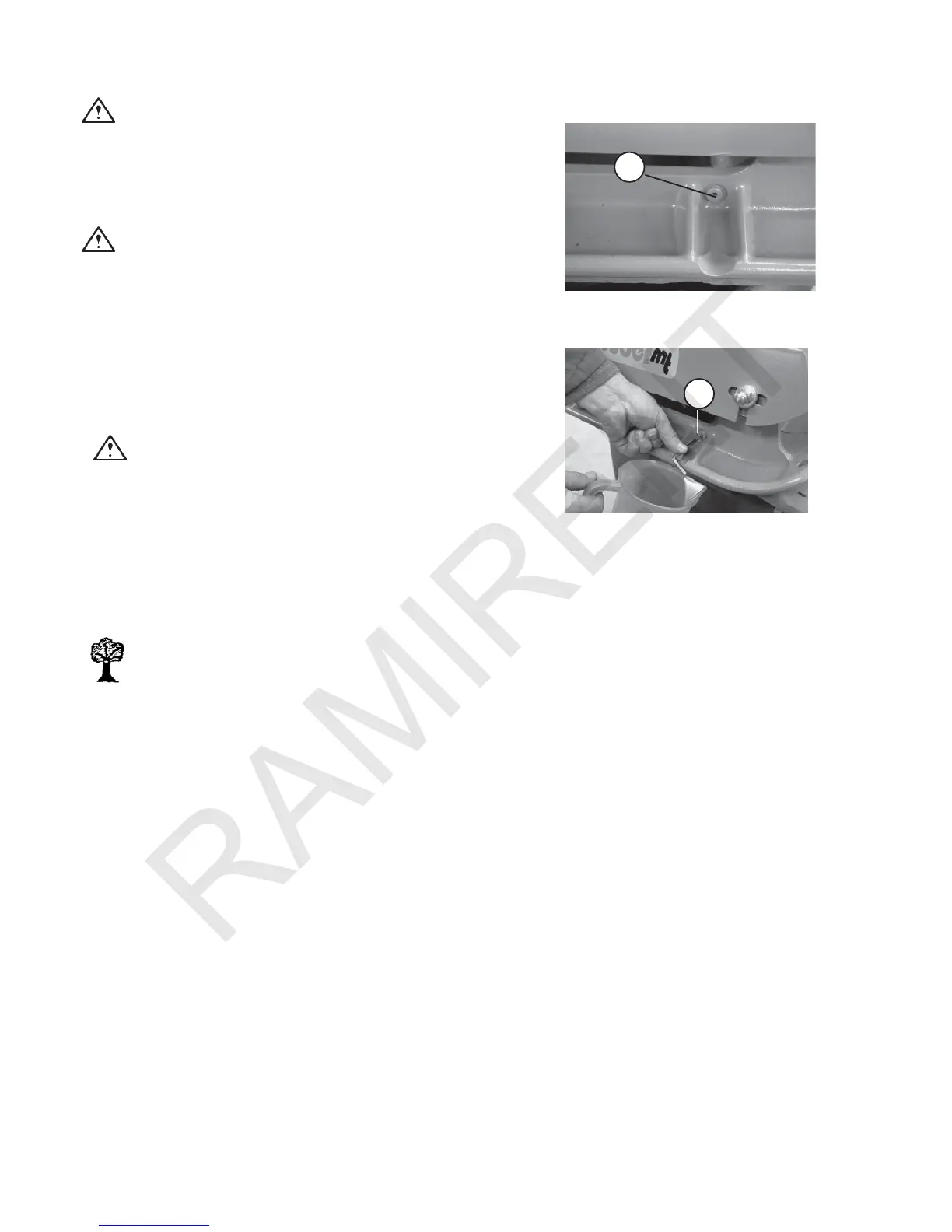

Figure 58
Figure 57
1
1
3.3.6 Changing the Vibrator Oil
Caution!
Change the oil at operating temperature only.
- Park the soil compactor so that the oil drain screw (57/1) is
easily accessible.
Caution!
Thouroughly clean the oil drain screw
(57/1) and the area around the drain outlet.
- Put an appropriate drain pan under the outlet.
- Undo the oil drain screw (58/1).
- Completely drain the oil from the vibrator.
Caution!
Take care that the contact surfaces of the oil drain screw
and of the vibrator housing are clean.
- Tilt the soil compactor.
- Top up with gear oil through the oil filler/oil drain opening (refer
to paragraph 3.4 for quantities and specifications).
Environment Hazard!
Dispose of the collected used oil in an environmentally-
friendly manner. Take care that the environment is not
polluted by oil.
