GAS INSTRUCTIONS
10
1
2
3
4
5
6
7
8
9

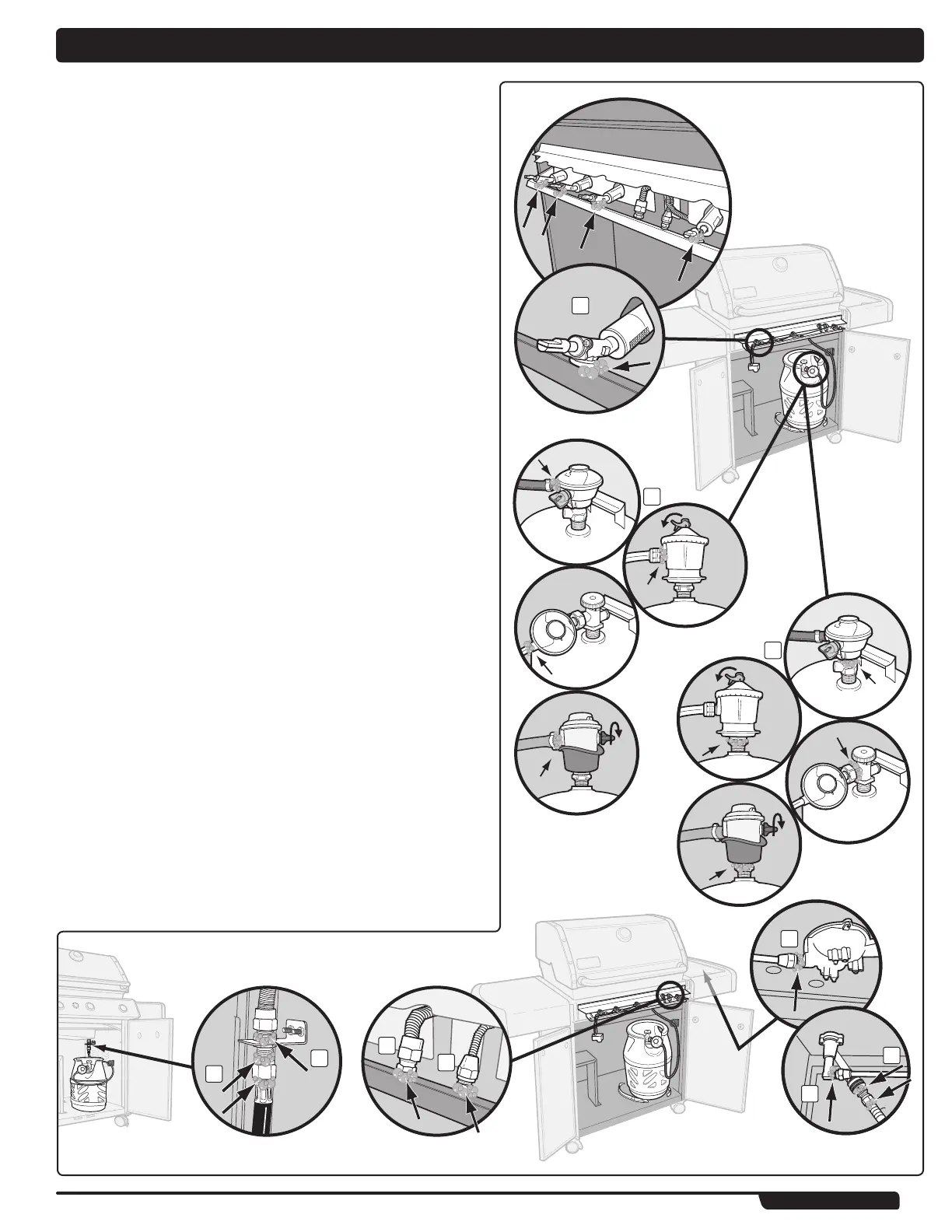

Check
A) Regulator hose-to-bulkhead connection (1).
B) Main gas line-to-bulkhead connection (2).
C) Main gas line-to-manifold connections (3).
D) Side burner gas line-to-manifold connection (4).
E) Side burner pipe fitting-to-side burner cup (5).
F) Side burner pipe fitting-to-side burner valve connections (6).
m WARNING: If there is a leak at connection (1, 2, 3, 4, 5 or 6),
re-tighten the fitting with a wrench and recheck for leaks with
soap-and-water solution. If a leak persists after re-tightening
the fitting, turn OFF the gas. DO NOT OPERATE THE GRILL.
Contact the Customer Service Representative in your area
using the contact information on our web site.
Log onto www.weber.com.
G) Side burner quick disconnect connection (7).
H) Regulator-to-cylinder connection (8).
I) Regulator hose-to-regulator connection (9).
J) Valves-to-manifold connections (10).
m WARNING: If there is a leak at connections (7, 8, 9 or 10),
turn OFF the gas. DO NOT OPERATE THE GRILL. Contact the
Customer Service Representative in your area using the
contact information on our web site.
Log onto www.weber.com.
When leak checks are complete, turn gas supply OFF at the source and rinse
connections with water.
Reinstall Control Panel
You will need: Phillips screwdriver.
A) Position top edge of control panel on tabs of frame. Push down into position.
B) Reinstall igniter module.
C) Slide both shorter wind deflector tabs toward inside edge of control panel while you
slide longer tab over outside edge. Seek previous illustrations for reference.
D) Line up screws with screw holes on both control panel bracket and frame.
E) Tighten screws.
F) Place corresponding control knobs onto valve stems.
The grill illustrated may
have slight differences than
the model purchased.
