Weber Genesis E-330 User Manual

8
GAS INSTRUCTIONS
CYLINDER INSTALLATION LOCATION OPTIONS
Pick one of three options to determine the location of the cylinder; install inside the
cabinet, mount on the cylinder hanger, or place the cylinder on the ground. The type and
size of cylinder you purchase will help determine the cylinder installation location.

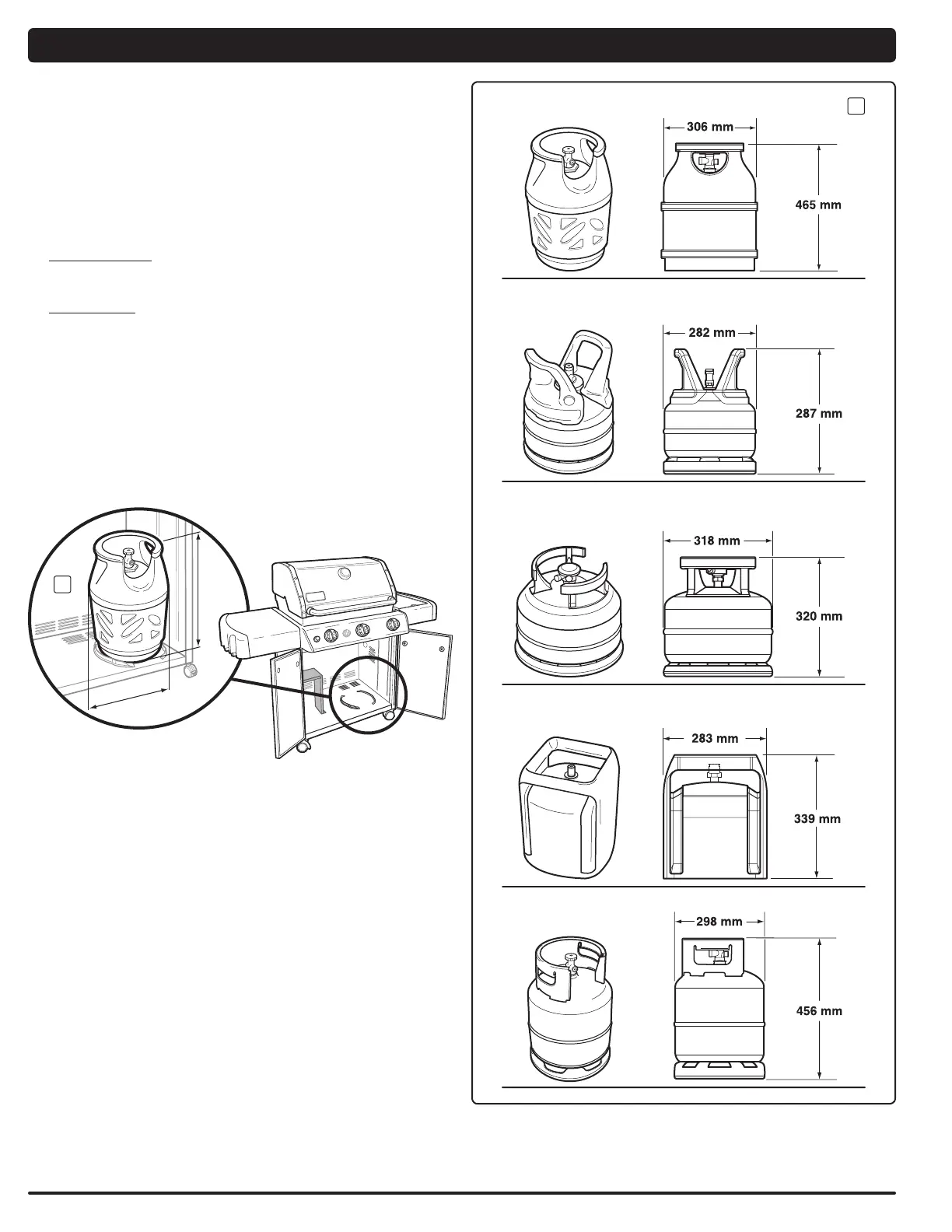

Installation Inside of Cabinet
The LP gas cylinder can be connected inside the grill cabinet as long as the cylinder
meets the cylinder size guidelines (1). There are several factors that will determine
whether a cylinder may be safely used inside your grill cabinet:
A) The base of the cylinder must fit between the cylinder brackets and rest flat on the
base panel.
Cylinder Dimensions
Height 465 mm maximum
Width 289 mm - (rectangular footprint) or
318 mm (round footprint) maximum
B) Cylinder Capacity
8 kg maximum
Several possible cylinder models are illustrated with approved dimensions (2).
m WARNING: If the LP cylinder that you purchased does not meet
the cylinder size requirements, do not attempt to connect the
cylinder inside the cabinet. Mount the cylinder on the cylinder
hanger, or place on the ground. Failure to do so could cause
damage to the hose resulting in a fire or explosion, which can
cause serious injury or death, and damage to property.
◆
5.2 kg
5 kg
5 kg
8 kg
6 kg
2
289 / 318 mm
465 mm
1

Weber Genesis E-330 Specifications

General

Device type	Wheels
Heat source	Natural gas
Total power	12300 W
Smoke function	No
Side burner power	3500 W
Dimensions (WxDxH)	2240 x 870 x 1640 mm
Adjustable thermostat	Yes
Side burners quantity	1
Number of cooking zones	4 zone(s)
Product color	Black
Housing material	Stainless steel
Top surface type	Grate
Cooking surface shape	Rectangular
Cooking surface (W x D)	660 x 500 mm
LED indicators	Temperature

Weight and Dimensions

Depth	870 mm
Width	2240 mm
Height	1640 mm
Weight	114000 g
