ANNUAL MAINTENANCE
Inspection and Cleaning of the Spider/Insect Screens
To inspect the spider/insect screens, remove the control panel. If there is dust or dirt on
the screens, remove the burners to clean the screens.
Brush the spider/insect screens lightly with a soft bristle brush (i.e., an old toothbrush).
m CAUTION: Do not clean the spider/insect screens with hard
or sharp tools. Do not dislodge the spider/insect screens or
enlarge the screen openings.
Lightly tap the burner to get debris and dirt out of the burner tube. Once the spider/
insect screens and burners are clean, reinstall the burners.
If the spider/insect screen becomes damaged or cannot be cleaned, please contact the
Customer Service Representative in your area using the contact information on our web
site. Log onto www.weber.com.

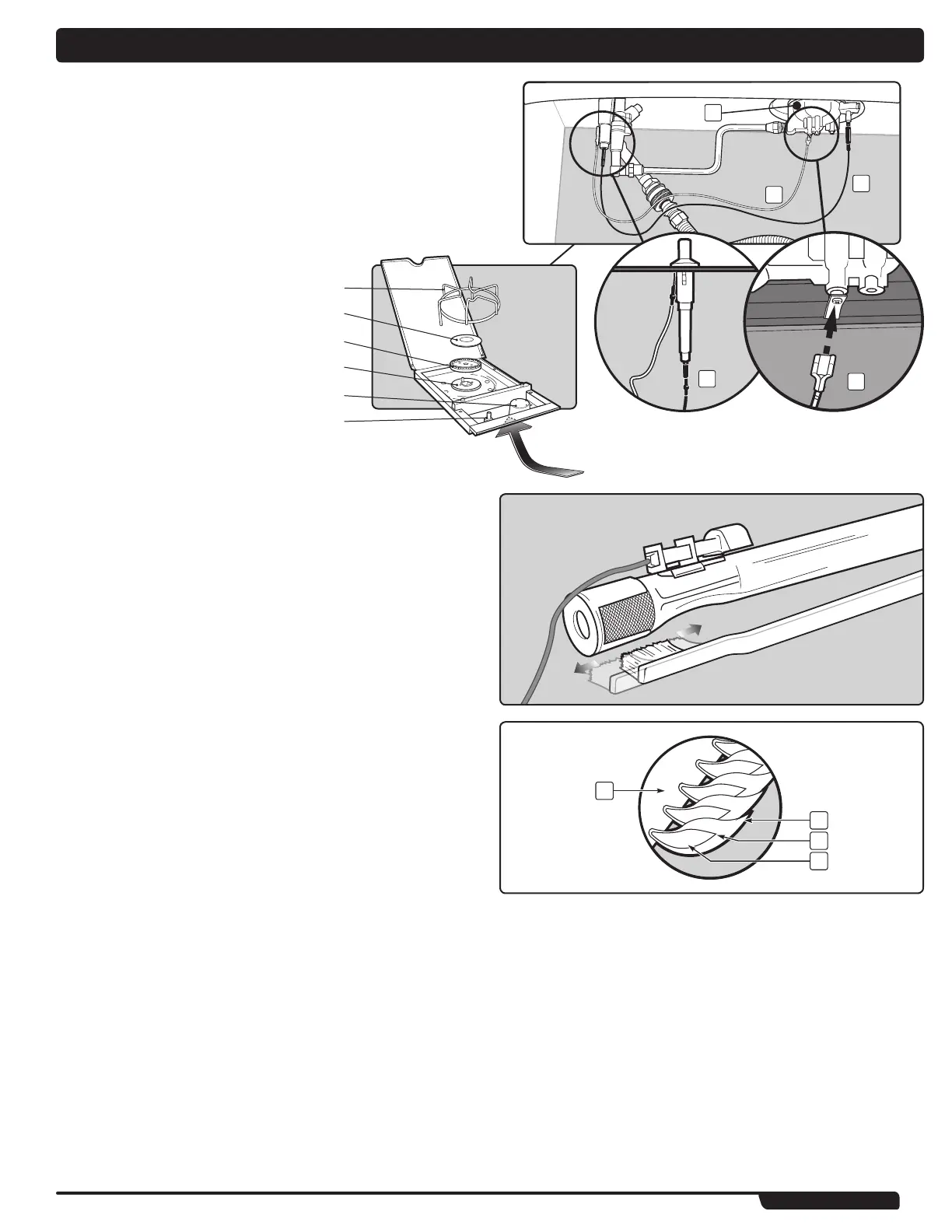

Burner Flame Pattern
The Weber
®
gas grill burners have been factory set for the correct air and gas mixture.
The correct flame pattern is shown.
A) Burner tube (1)
B) Tips occasionally flicker yellow (2)
C) Light blue (3)
D) Dark blue (4)
If the flames do not appear to be uniform throughout the burner tube, follow the burner
cleaning procedures.
◆
3
1
1
2
2
Side Burner Grate
Side Burner Cap
Side Burner Ring & Head
Igniter Electrode
Control Knob
Igniter
SIDE BURNER MAINTENANCE
m WARNING: All gas controls and supply valves should be in the
OFF position.
Make sure black wire is connected between the igniter and electrode.
Make sure white wire is connected between the igniter and earthing clip.
Spark should be a white/blue colour, not yellow.
A) Igniter wire (1)
B) Earth wire (2)
C) Burner (3)
◆
