DETAILED PARAMETER DESCRIPTION
✓
NOTE!
This parameter is only visible on HMI when: P0950 = 1 (Synchronous motor with brushes) or
P0950 = 2 (Brushless synchronous motor).
P0080 - Date (dd/mm/yy)
Acesso: Menu → Configurations → HMI → Settings
Description:
It indicates, on the Graphic HMI, the current dated in the format “dd/mm/yy”.
P0081 - Hour (24hs)
Acesso: Menu → Configurations → HMI → Settings
Description:
It indicates the actual time in the format “hh:mm:ss”.
The hours are indicated with values between 0 and 24 h.
P0100 - Acceleration time
P0101 - Deceleration time
P0102 - Acceleration time 2nd ramp
P0103 - Deceleration time 2nd ramp
Adjustable range: 0.0 to 999.0 s Factory setting: P0100 = 100.0 s
P0101 = 180.0 s
P0102 = 100.0 s
P0103 = 180.0 s
Acesso: Menu → Configurations → Ramps
Description:
Setting 0.0 means without use of ramp. In this case a voltage step will be applied to the motor proportional to
the programmed speed reference.
It defines the times to accelerate linearly from 0 to Maximum speed reference (P0134) or decelerate linearly
from the Maximum speed reference to 0.
The switching to the second ramp is done through one of the digital inputs DI3 to DI10 if it is programmed for
the 2nd ramp function. Refer to parameters from P0265 to P0272.
24 V
24 V
Open
Open
Ti
me
Time
Time
P0100 P0101
P0102 P0103
DIx -
Run/Stop
Motor
speed
DIx - 2nd ramp

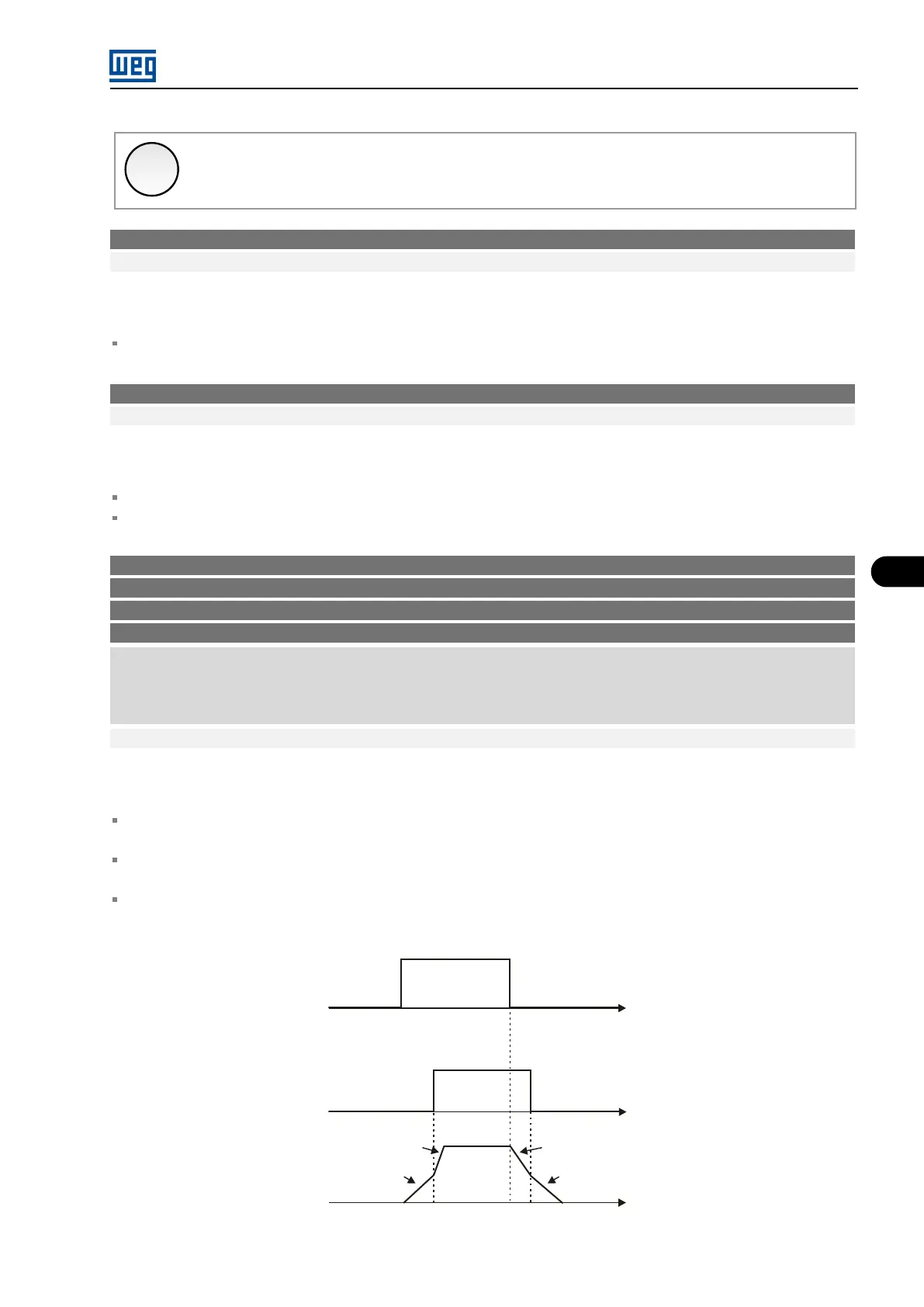

Figure 5.2: 2nd ramp
MVW3000 | 5-11
