1.6 WORKING on the UPPER PART OF THE BOILER
(safety valve, expansion valve, etc.)

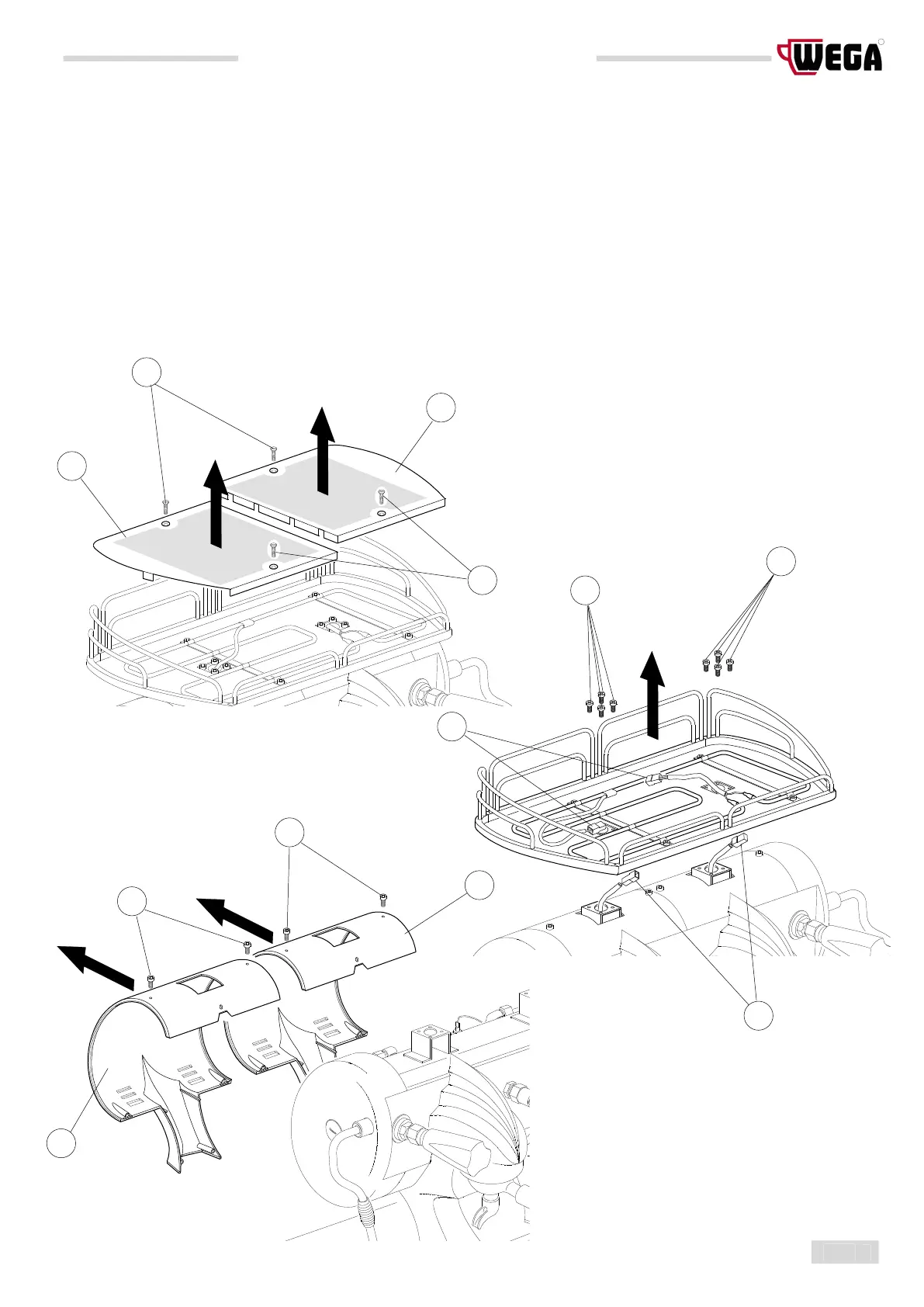

1) Loosen the fastening screws located on the cup holder grille (A)
2) Remove the cup holder grilles (B)
3) Disconnect the electrical connectors (C) for the heating element and temperature probe which are located in the cup heater compartment
4) Loosen and remove the fastening screws of the cup holder (D)
5) Loosen the fastening screws of the boiler rear body (E)
6) Remove the rear body panels of the boiler (F)
7) After work is complete, put the body components back in place by following the procedure in reverse order
