Wega Espresso Coffee Machine - SPHERA Type Machine Electrical Diagram Version *GICAR

CNS
8
English
espresso coffee machine -
interface system
R

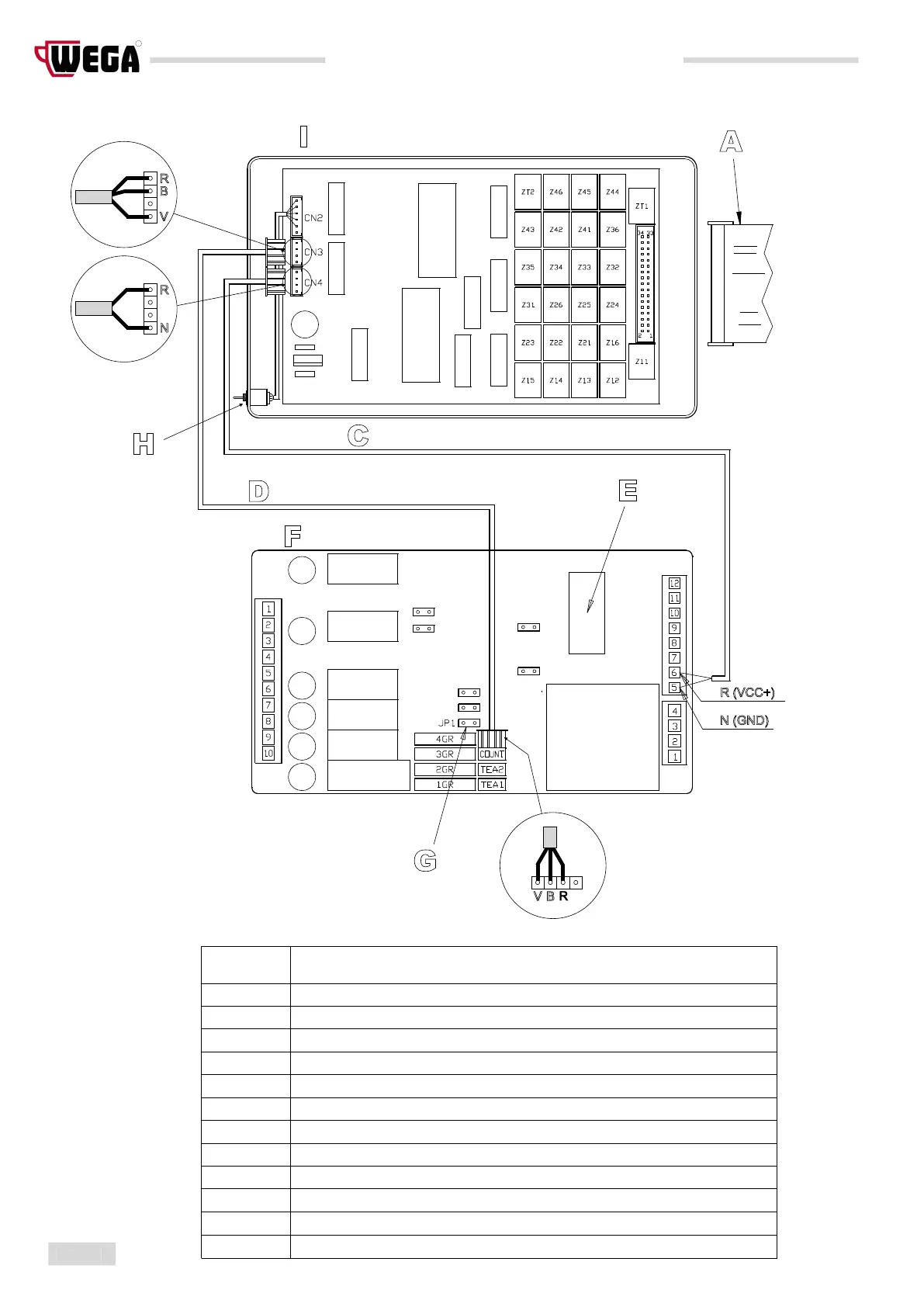

1.6 SPHERA type machine electrical diagram version *GICAR*
A
C
D
E
F
G
H
I
R
B
V
R
N
R
B
V
R (VCC+)
N (GND)
A
Hartwall cable 8.9.28.51 code WY22550
REF. DESCRIPTION
B
White
C
Power cable 8.9.28.12 code WY22551
D
Serial transmission cable code WY22555
E
Replace with correct version
F
Dosing
G
Short circuit JP1
H
Place the lever in the PROG position only when programming coffee doses
I
Interface
N
Black
R
Red
V
Green
