Wega Espresso Coffee Machine - Electrical Diagram Code WY18362-WY18363-WY18365-WY18366

espresso coffee machine - electrical diagrams
R
ELE
13
English

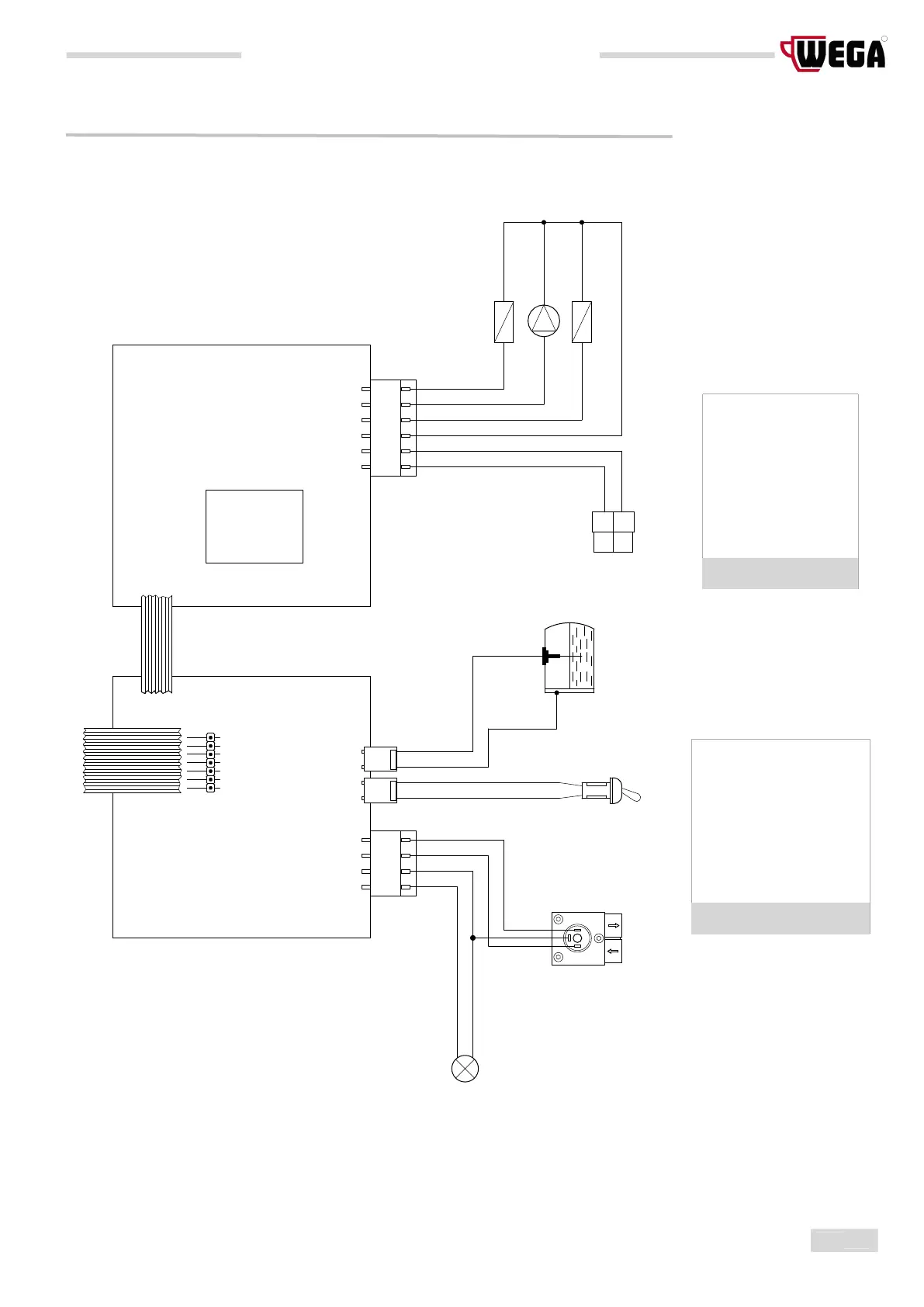

6.04 Electrical diagram code WY18362-WY18363-WY18365-WY18366
CV
+
O
-
TR
CN2 CN3 CN4
CM
CN1
SPIA
CT
IP
SL
CAL
EVE MP EVC
CAL Boiler CM Membrane connection CN1
Power supply and services outputs
CN2 Dosing device output CN3 Programming switch CN4 Boiler level CT Power supply connector CV Volumetric counter
EVC Filling solenoid valve EVE Delivery solenoid valve IP Programming switch MP Pump SL Level probe SPIA On indicator light TR Transformer
