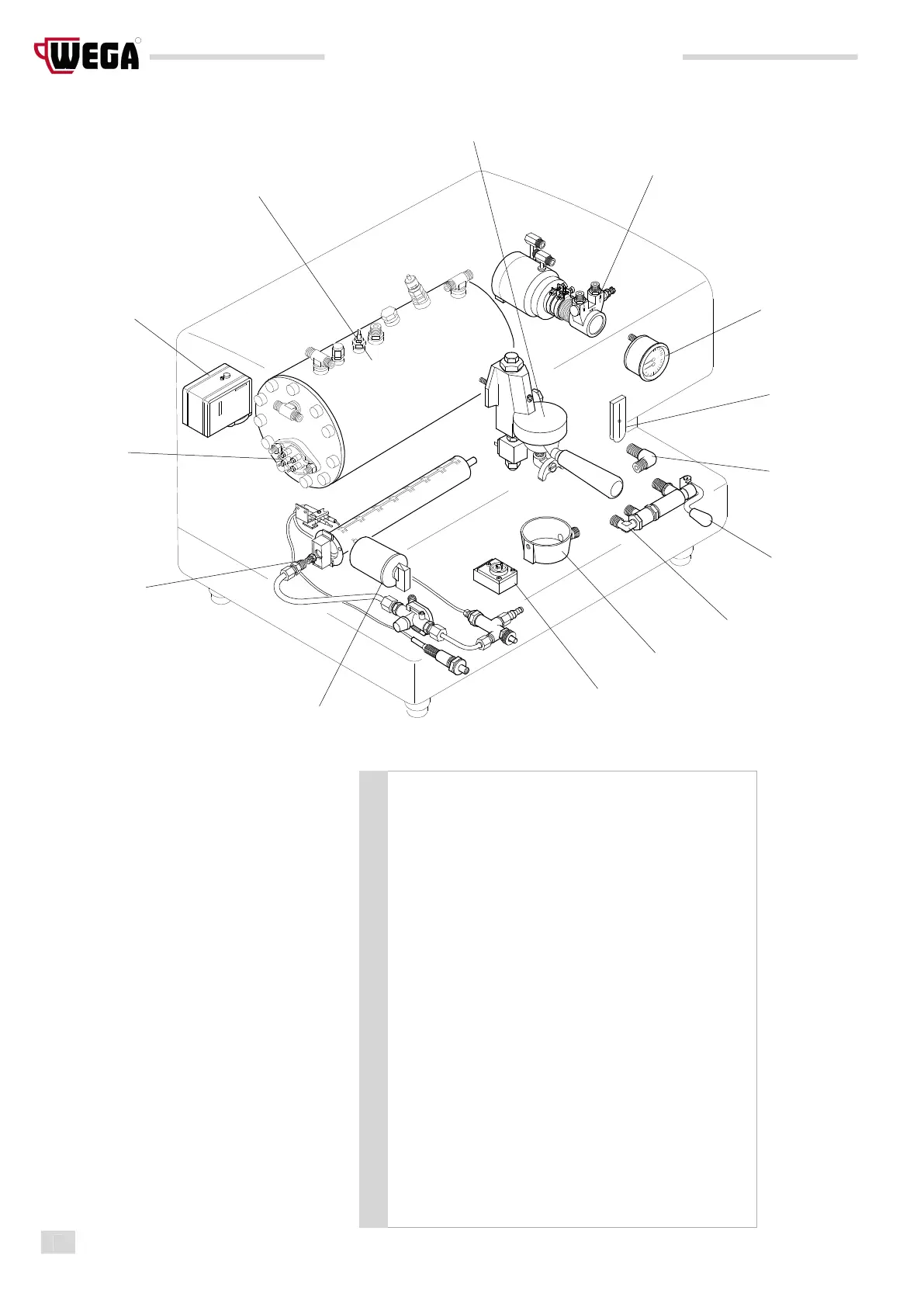

INTERNAL COMPONENTS
1 Boiler
2 Delivery group
3 Internal motor pump (if included)
4 Boiler / motor pump pressure gauge
5 Boiler level-check window
6 Internal pump water attachment connection (if included)
7 Manual water pump
8 External pump water attachment connection
9 Drain tub
10 Volumetric dosing device (EVD)
11 Machine main switch
12 Gas system (if included)
13 Electrical heating element
14 Pressure switch
1
3
4
5
14
9
10
2
11
6
12
13
7
8
