Wega Espresso Coffee Machine - ALE Version Electrical Diagram

espresso coffee machine - electrical diagrams
ELE
6
R
English

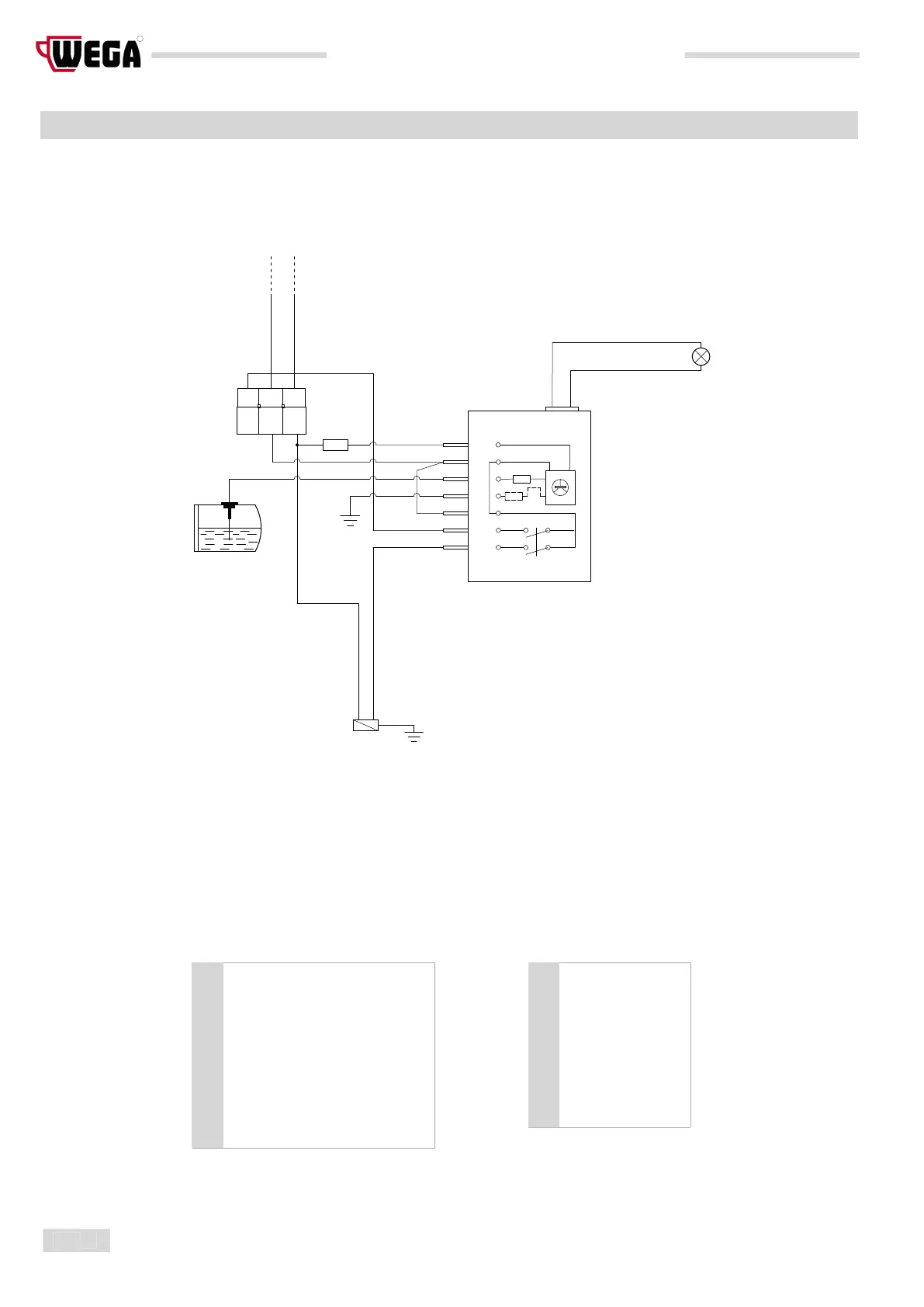

3. Electrical diagram version ALE with automatic water inlet
BI White
BL Blue
GV Yellow-green
MA Brown
NE Black
RO Red
CAL Boiler
CT Power supply connector
EC Boiler filling solenoid valve
FU Fuse
LED Time limit LED
RL30 Electronic control unit
SL Level probe
LED
CT
BI
FU
RO
NE
GV
1
2
4
6
8
9
10
RL30
BL
GV
EC
MA BL
BL
CAL
SL
