Wega Espresso Coffee Machine - Electrical Diagram Code WY18090018 - WY18090019 *SPHERA DISPLAY

espresso coffee machine - electrical diagrams
R
ELE
25
English

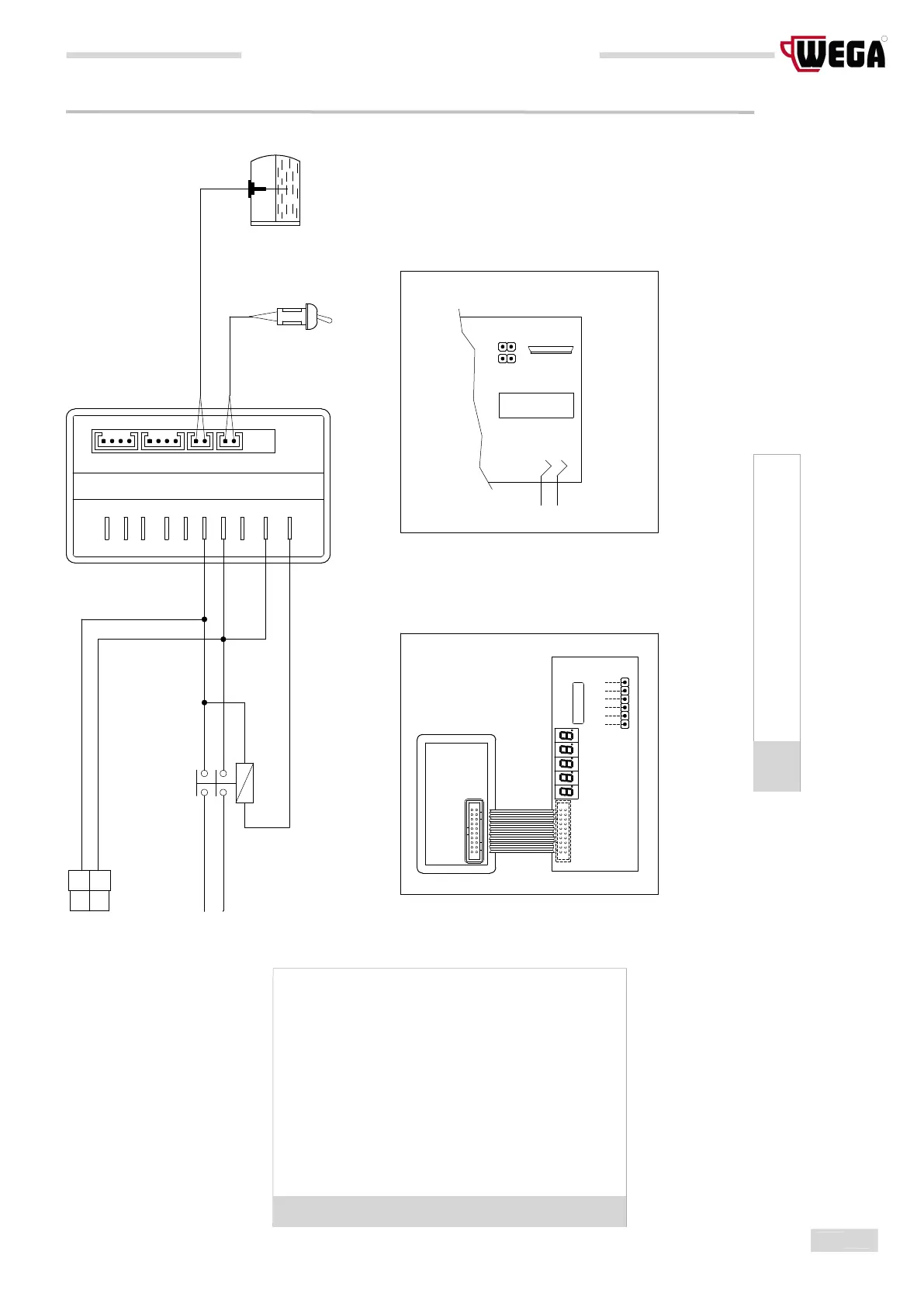

6.24 Electrical diagram code WY18090018 - WY18090019 *SPHERA DISPLAY*
CT
FA5 FA4 FA2 FA1
CN1
CN2CN3CN4
IP
TG
SCB
C
SCD
P2
P1
FA2 FA1
RE
BA
FIG. A FIG. B
MC
SL
CAL
BA Battery CAL Boiler CM Membrane connector CN1 Serial transmission connector CN2 Not managed CN3 Level probe connector CN4 Programming swith connector CN5 Circuit board display connector CT Power connector IP Switch programming MC Machine RE Relay SCB Circuit board SCD Display circuit board SL Level probe TG Contactor
FIG. A Connection Circuit board - Circuit board display FIG. B Jumpers
