10.3 CONNECTION OF SERIAL OUTPUT RS 232 OR RS 485
• Note: the optional serial output is sold separately and cannot be used in conjunction with
optional output bluetooth.
• Note: the optional serial outputs will only assume the same set up made for the onboard
serial output and send same serial format of 03RS1 menu.

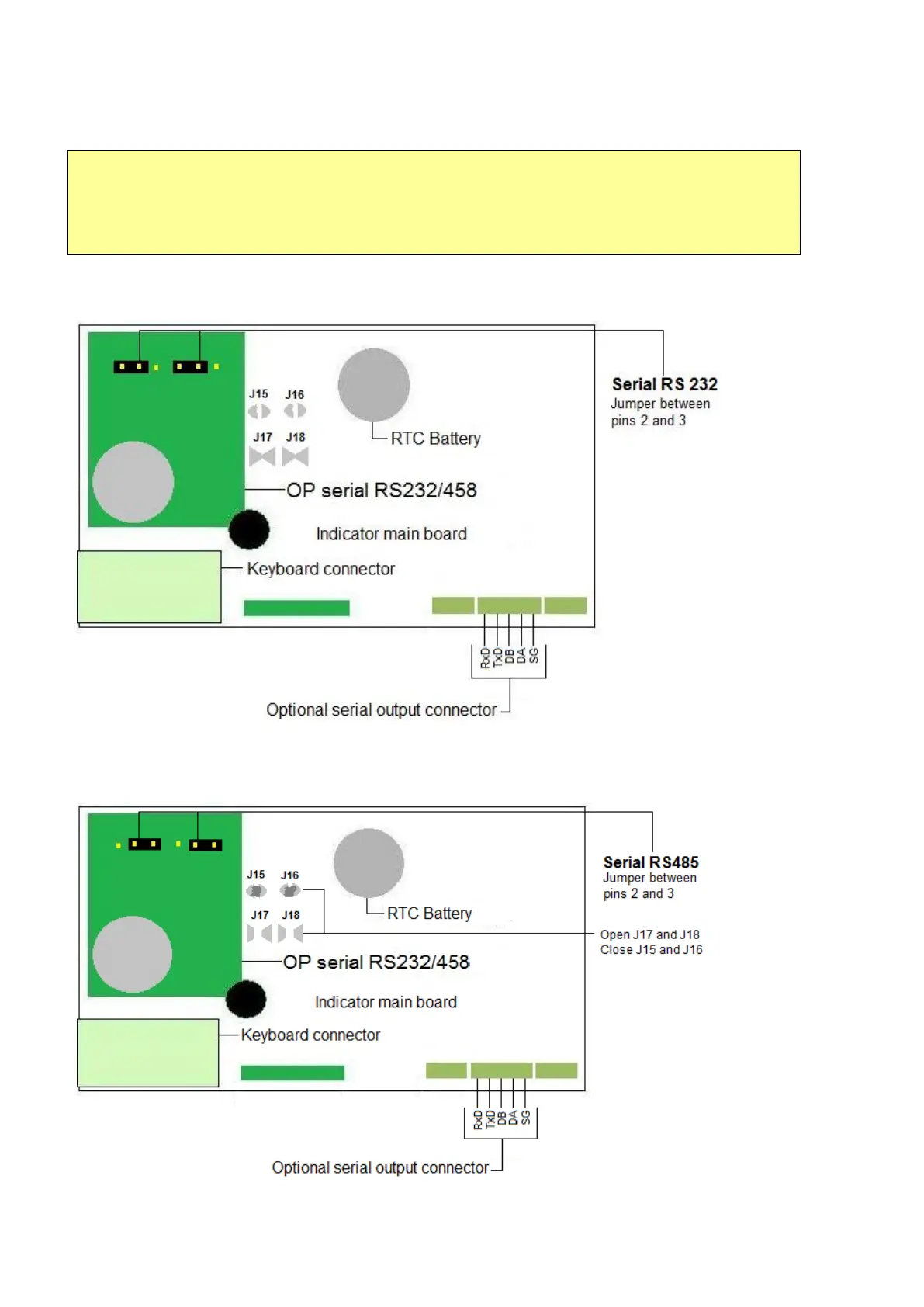

Connection diagram of the optional serial output operating in RS-232
Connection diagram of the optional serial output operating in RS-485
