4.4.2. Execute Array Machining
To execute array machining, do the following:

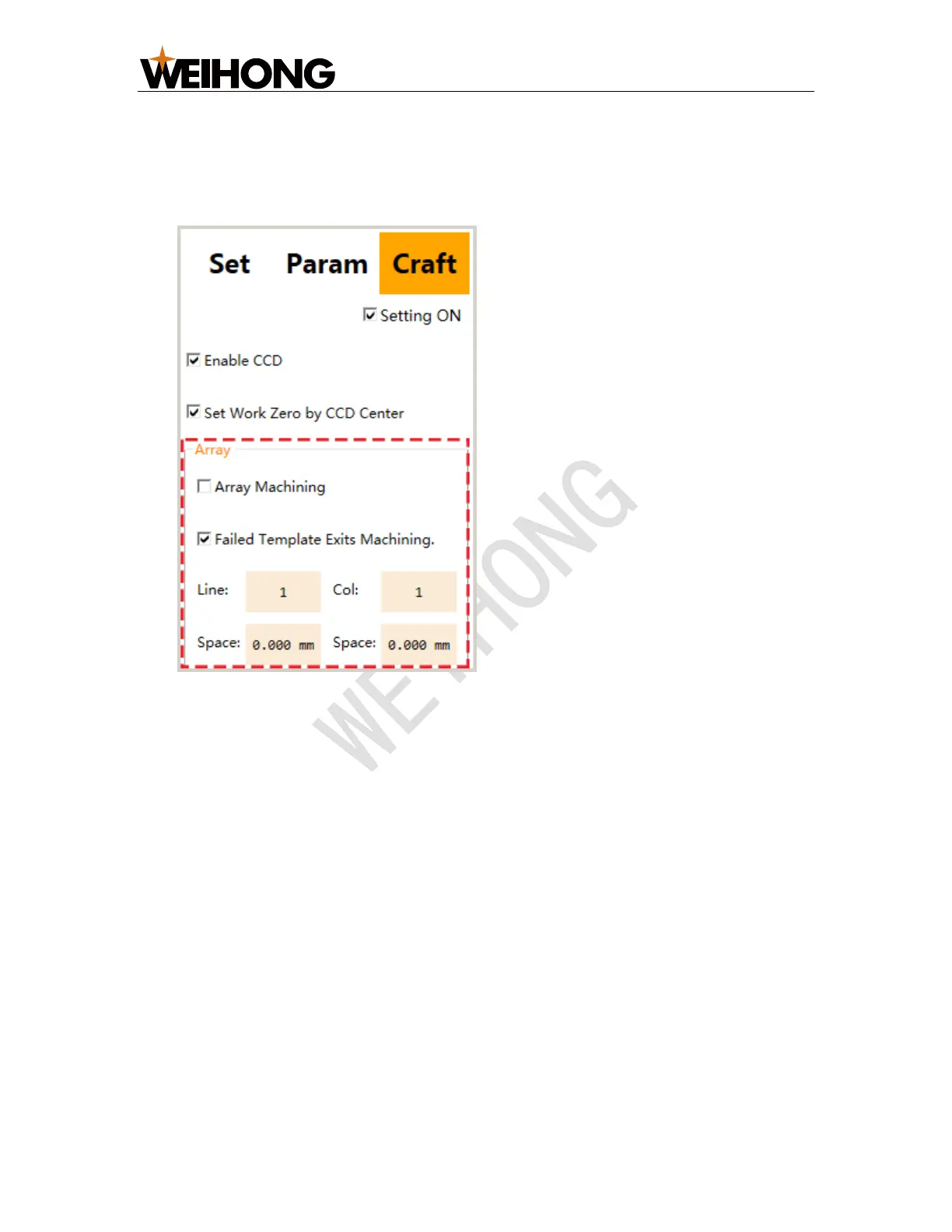

1. Switch to Craft page:
2. Check Setting ON and enter the manufacturer password.
3. Check Array Machining to enable array machining.
4. Set line number and space and column number and space.
5. Optional: check Failed Template Exits Machining.
– Check: Only if the shooting for a workpiece fails, machining for all
workpieces stops.
– Uncheck: if the shooting of a workpiece fails, machining for other
workpieces continues.
