WEIHONG NCStudio V12 User Manual

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
42 / 47
4.4.10. Set Automatic Layer compensation
This operation helps to solve the problem of reusing the same tool and increase its
reusing rate.
To set automatic layer compensation, do the following:

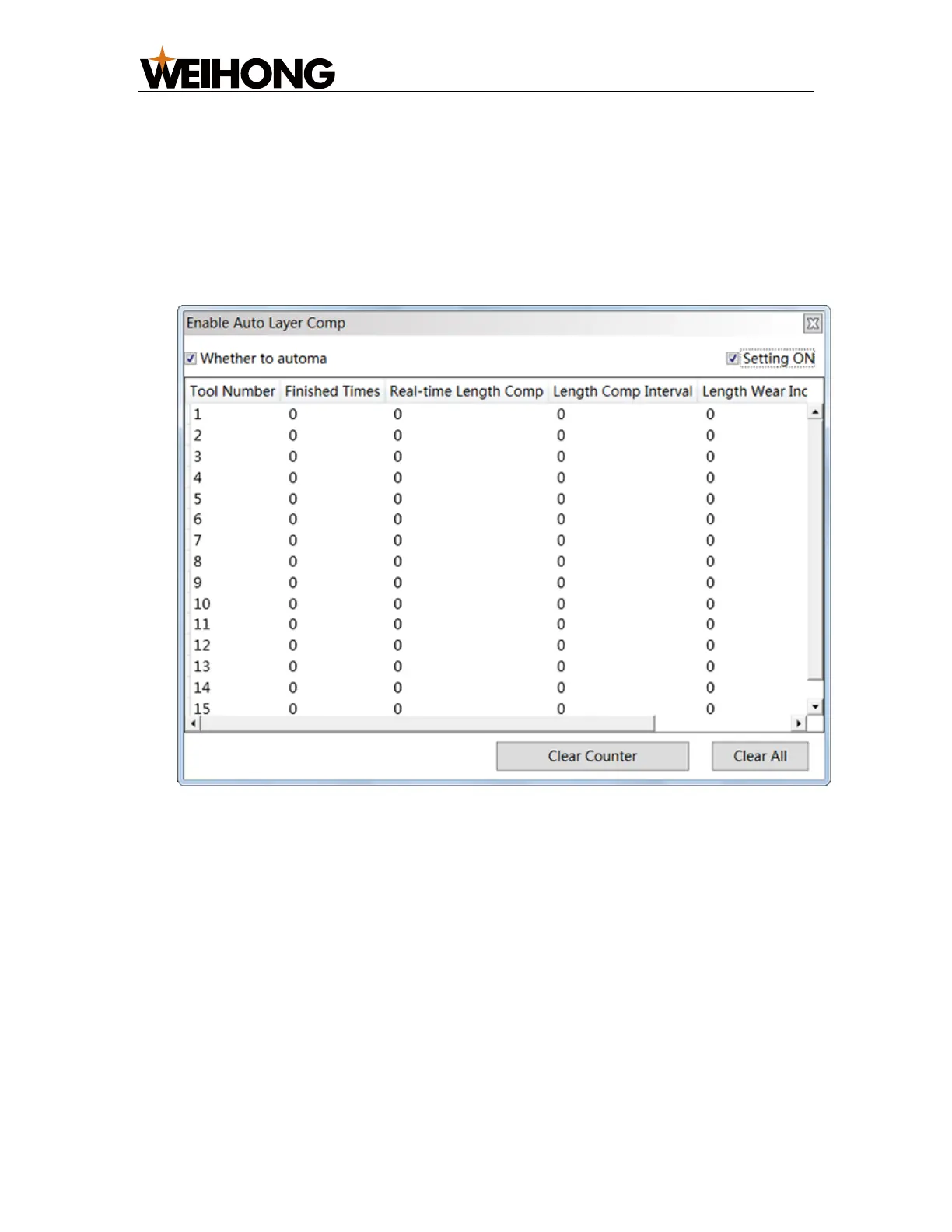

1. Click Operate → Auto Layer Compensation. Enable Auto Layer Comp dialog
box pops up:
2. Check Settings ON and enter the manufacturer password to enable setting.
3. Check Auto Layer Comp to enable automatic layer compensation.
– Check: enable automatic layer compensation.
– Uncheck: disable automatic layer compensation.
4. Set the following parameters:
– Length Comp Interval
– Length Wear Increment
– Max Length Comp
5. Optional: Click Clear Counter to clear values of the column Finished Times.
6. Optional: Click Clear All to clear values of all columns, except the column Max
Length Comp.
