4.4.6. Set Workpiece Offset Compensation
In actual machining, if the machined workpiece is tilted to one side, setting
workpiece offset compensation is required.
To set workpiece offset compensation, do the following:
1. Switch to Craft page and check Setting ON.

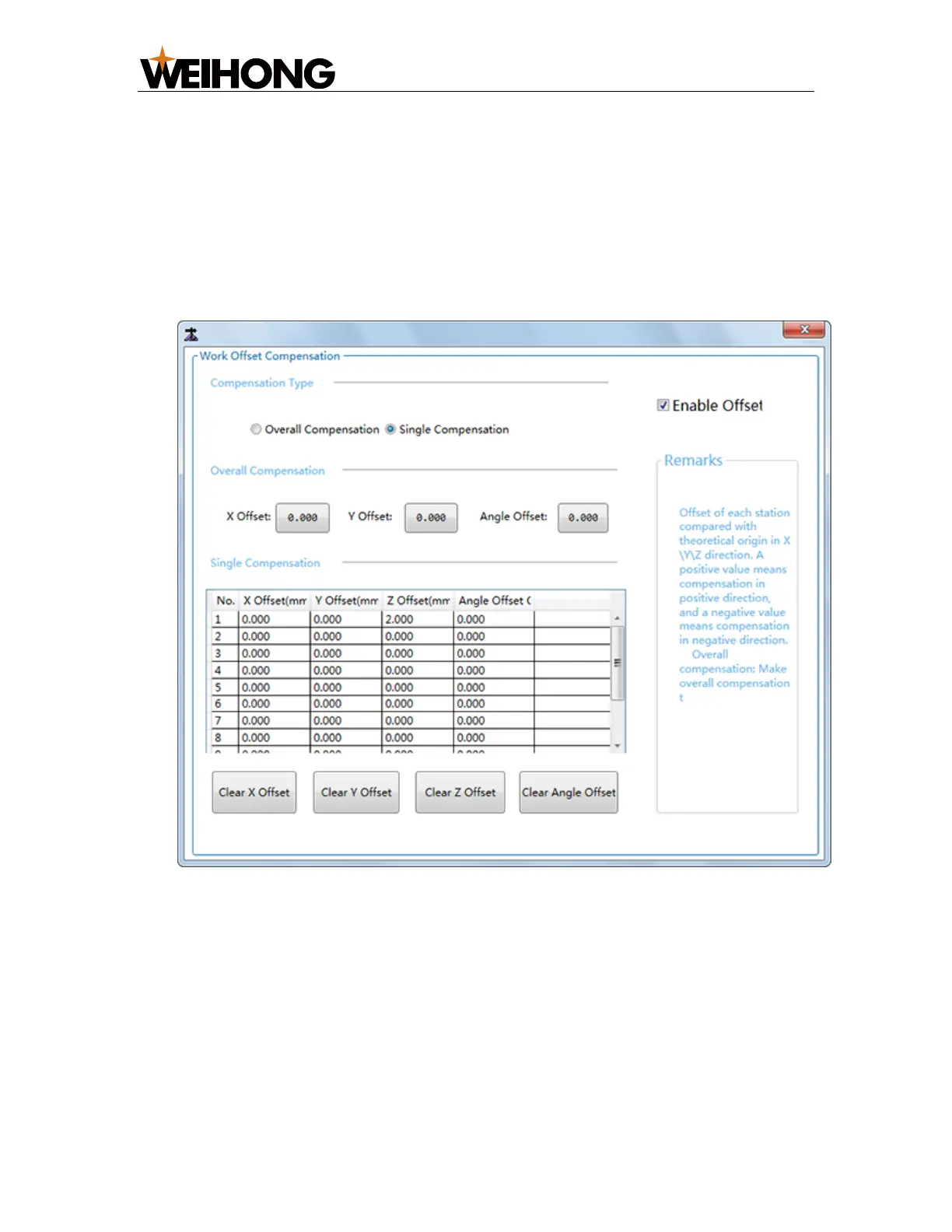

2. Click Set Part Offset Comp. Work Offset Compensation dialog box pops up:
3. Check Enable Offset to enable offset.
4. Select compensation type:
– Overall compensation
It is the common compensation type.
With array machining enabled, the set workpiece offset compensation is
suitable for all workpieces in the array.
